Whip Industries WFP12R-E Extended Length Four Post Car Lift 12,000 lb. Capacity
SKU: Whip-WFP12R-E
Selling price:$5,737.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 12000 lbs
- Overall width: 136.25"
- Maximum rise: 77.75"
Product Decision Guide
Key facts for this configuration
- Capacity
- 12000 lbs
- Overall width
- 136.25"
- Maximum rise
- 77.75"
- Power requirement
- 2HP
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
Whip Industries WFP12R-E Extended Length Four Post Car Lift 12,000 lb. Capacity

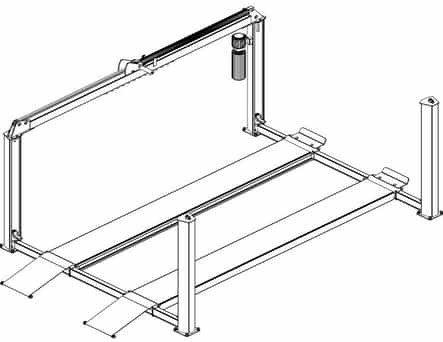

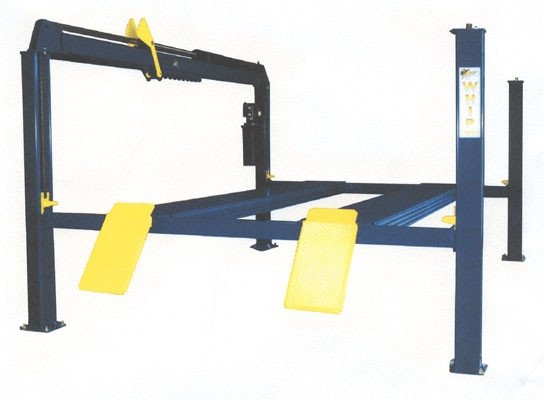

The recorded specifications describe Whip Industries WFP12R-E Extended Length Four Post Car Lift 12,000 lb. Capacity as a heavy-duty four-post vehicle lift rated at 12,000 lb. This summary separates fixed product data from model-dependent options and supplied components.
Key product facts
- Manufacturer: Whip Industries
- Model: Whip-WFP12R-E
- SKU: Whip-WFP12R-E
- Lift format: heavy-duty four-post vehicle lift
- Listed capacity: 12,000 lb
- Power or motor requirement: 2HP
- Manufacturer-listed certification status: Whip Industries product data lists this model as ALI certified; verify the current certification record before publication.
Design and functional details
- Capacity detail: 12,000 lb. lifting capacity.
- Platform design: 192" extended length runway.
- Platform design: 20-1/2" runway width.
- Design detail: roller jack rail and stabilizer.
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | Yes |
| Weight Capacity | 12000 lbs |
| Capacity | 12,000 lbs. |
| A Overall Length | 236.5" |
| B Overall Width | 136.25" |
| c Overall Height | 100.5" |
| D Rise Height | 77.75" |
| E Inside Columns | 121" |
| F Between Columns | 186" |
| G Height of Runways | 6.75" |
| H Width of Runways | 20.5" |
| I Width Between Runways | 37.50" – 69.50" |
| J Max. Wheelbase | 192" |
| Max. Wheelbase 2 Wheel Align | N/A |
| Max. Wheelbase 4 Wheel Align | N/A |
| Speed of Rise | 55 sec. |
| Min. Bay Size | 174.00" x 276.00" |
| Floor Installation Requirement | Concrete, 3,000 PSI, 4" Thick, Steel Reinforced |
| Motor | 2HP |
| Voltage | 208/230v Single Phase |
| Amps | 30 |
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Whip Industries |
|---|---|
| Item | Product |
| Weight Capacity | 12000 lbs |
| lift_type | 4-post |
| lift_height | 100.5 |
| lift_width | 136.25 |
| lift_depth_with_ramps | 236.5 |
| Capacity | 12,000 lbs. |
| A Overall Length | 236.5″ |
| B Overall Width | 136.25″ |
| c Overall Height | 100.5″ |
| D Rise Height | 77.75″ |
| E Inside Columns | 121″ |
| F Between Columns | 186″ |
| G Height of Runways | 6.75″ |
| H Width of Runways | 20.5″ |
| I Width Between Runways | 37.50″ – 69.50″ |
| J Max. Wheelbase | 192″ |
| Max. Wheelbase 2 Wheel Align | N/A |
| Max. Wheelbase 4 Wheel Align | N/A |
| Speed of Rise | 55 sec. |
| Min. Bay Size | 174.00″ x 276.00″ |
| Floor Installation Requirement | Concrete, 3,000 PSI, 4″ Thick, Steel Reinforced |
| Motor | 2HP |
| Voltage | 208/230v Single Phase |
| Amps | 30 |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address., Please drop off lift at local freight terminal. |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
