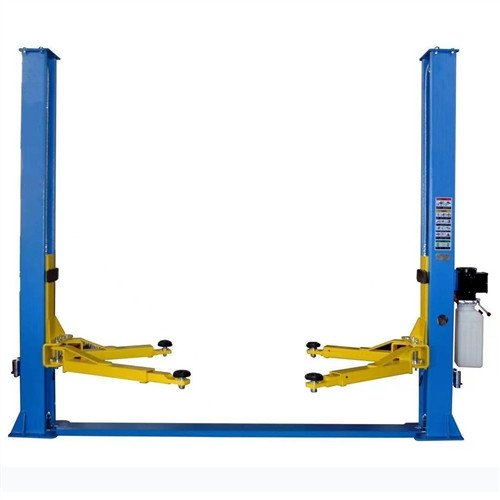

Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs - Blue - Image 1

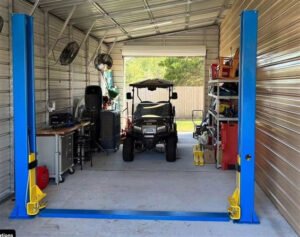

Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs - Blue - Image 2

Click to enlarge

Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs - Blue - Image 3

Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs - Blue - Image 6

Katool

Katool 10000 lbs capacity In stock Sale

Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs – Blue

Name: Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs - Blue
Brand: Katool
SKU: KT-H105
Price: 1099.50 USD
Availability: InStock

SKU: KT-H105

Selling price:$1,099.50

Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.

Capacity: 10000 lbs
Configuration: Symmetric
Overall width: 142.4" / 3665mm

Add to wishlist

ShippingConfirm delivery cost, timing, access, and freight requirements before ordering. Returns & FreightReview return authorization and freight-damage requirements. Product GuidanceAsk Lift Care to review model, options, and delivery access. Ordering AssistanceConfirm the configuration and current manufacturer documents.

SKU: KT-H105 Categories: 2 Post Lifts, Car Lifts Tags: Economy, Sale

Product Decision Guide

Key facts for this configuration

Capacity: 10000 lbs
Configuration: Symmetric
Overall width: 142.4" / 3665mm
Maximum rise: 70.8" / 1800mm
Power requirement: 220VAC / 60HZ / 1PH / 2.2KW

Before You Order

Will this lift fit your bay and workflow?

Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.

Request a Product Fit Check

Vehicle & Capacity

Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.

Bay & Clearances

Check overall width, length, ceiling height, door travel, and working clearance.

Floor & Utilities

Verify concrete, anchoring, electrical, and air requirements in the current manual.

Freight Receiving

Prepare carrier access, an available contact, and suitable unloading equipment.

Product Details

Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs – Blue

The recorded specifications describe Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs – Blue as a two-post vehicle lift rated at 10,000 lbs. This summary separates fixed product data from model-dependent options and supplied components.

Key product facts

Manufacturer: Katool
Model: KT-H105
SKU: KT-H105
Lift format: two-post vehicle lift
Listed capacity: 10,000 lbs
Configuration: Symmetric
Power or motor requirement: 220VAC / 60HZ / 1PH / 2.2KW
Maximum lifting height: 70.8" / 1800mm
Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.

Design and functional details

Capacity detail: 10,000lbs lifting capacity.
Design detail: blue color.
Manufacturer-listed certification: CE approved.
Safety design: manual safety release from two sides.

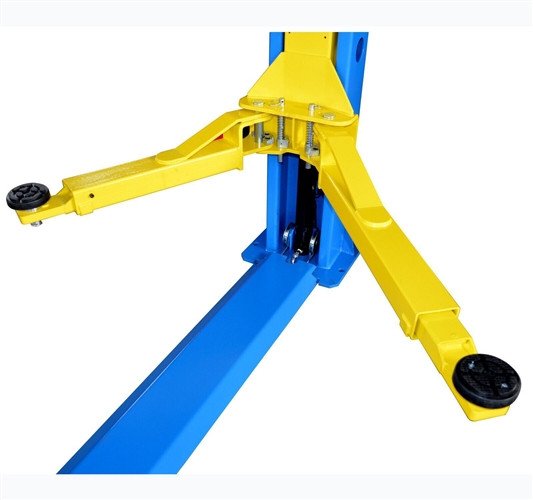

Lifting interface: symmetric arm, 2 stages.
Design detail: base plate design.
Construction: dual hydraulic chain-drive cylinders.
Lifting interface: rubber pad door opening protection.

Included equipment

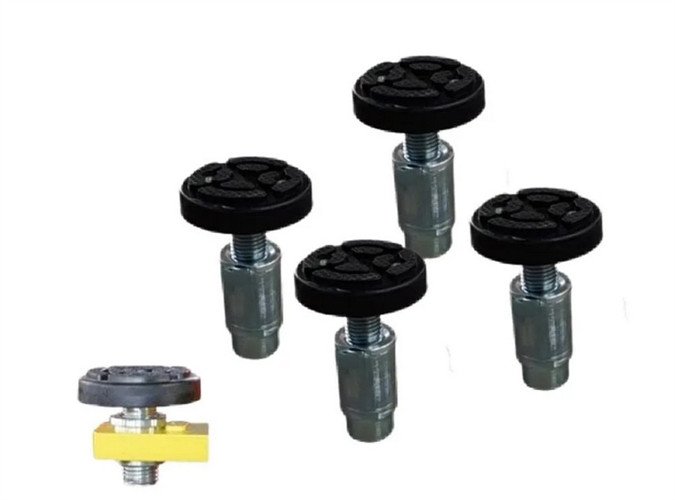

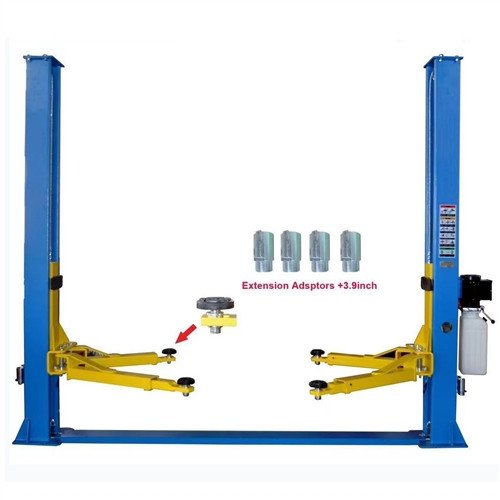

Set of Extension Support Adapters

Available configurations and accessories

Optional 110V Voltage Available: KT-2PL110 110 Voltage Power Unit

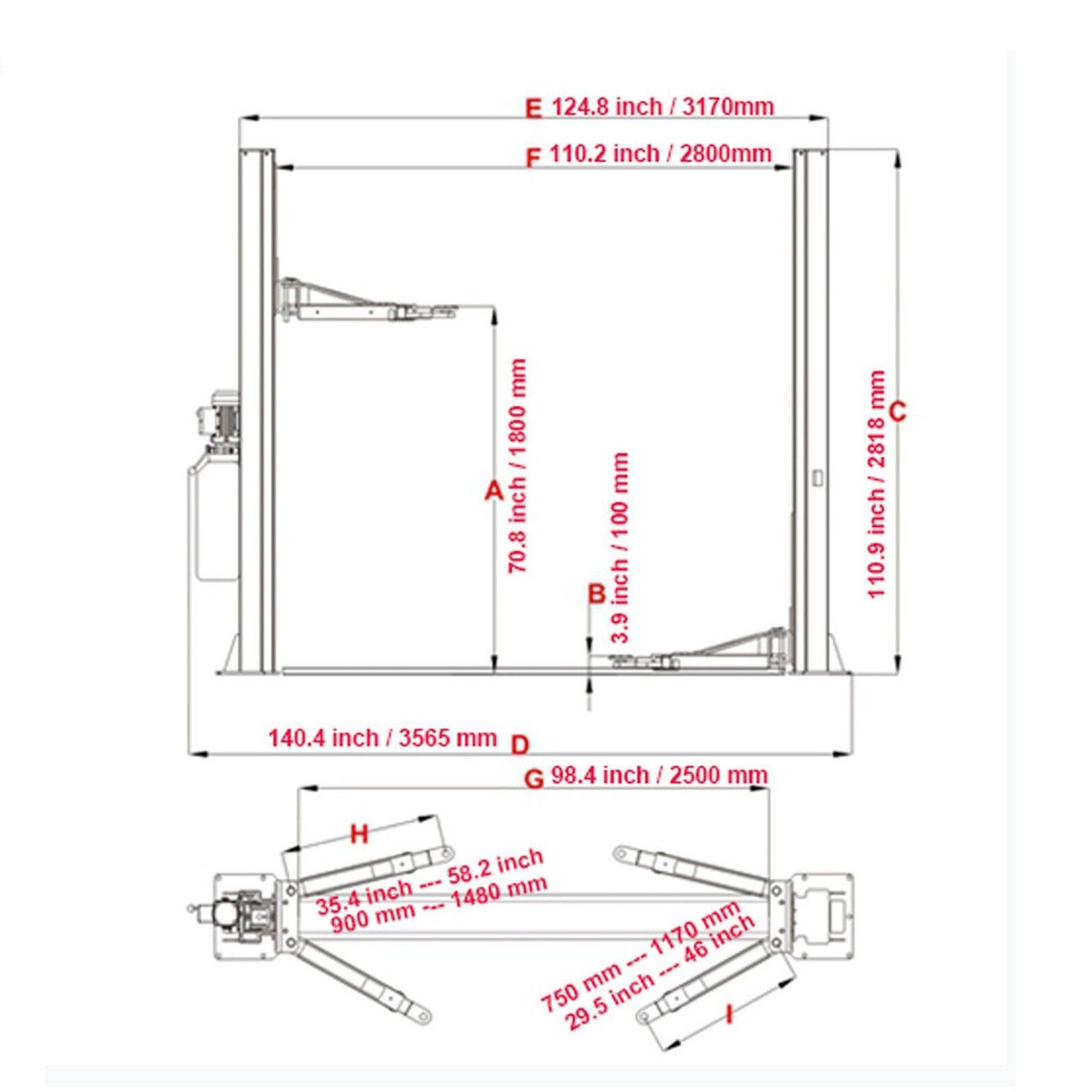

Technical specifications

Specification	Recorded value
Symmetric/Asymmetric	Symmetric
ALI	No
Weight Capacity	10000 lbs
Lifting Capacity	10,000 lbs.
Max. Lifting Height	70.8" / 1800mm
Min. Height	3.9" / 100mm
Height Overall	110.9" / 2818mm
Width Overall	142.4" / 3665mm
Outside Column	124.8" / 3565mm
Inside Column	110.2" / 2800mm
Drive-Thru Clearance	98.4" / 2500mm
Front Arm Reach (Max)	46" / 1170mm (2 stage)
Front Arm Reach (Min)	29.5" / 750mm (2 stage)
Rear Arm Reach (Max)	58.2" / 900mm (2 stage)
Rear Arm Reach (Min)	35.4" / 1480mm (2 stage)
Motor	220VAC / 60HZ / 1PH / 2.2KW
Net Weight	1,256 lbs / 570KG
Optional 110V Voltage Available	KT-2PL110 110 Voltage Power Unit, No

Manufacturer warranty reference — verification required

Warranty information recorded for Katool lists: parts: 1 year; structural components: 3 years. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.

Compatibility and site review

Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.

Specifications

Brand	Katool
Item	Product
Symmetric/Asymmetric	Symmetric
Weight Capacity	10000 lbs
lift_type	2-post
lift_height	110.9
lift_width	142.4
__AI_price_check	false
flatrate	300
Lifting Capacity	10,000 lbs.
Max. Lifting Height	70.8″ / 1800mm
Min. Height	3.9″ / 100mm
Height Overall	110.9″ / 2818mm
Width Overall	142.4″ / 3665mm
Outside Column	124.8″ / 3565mm
Inside Column	110.2″ / 2800mm
Drive-Thru Clearance	98.4″ / 2500mm
Front Arm Reach (Max)	46″ / 1170mm (2 stage)
Front Arm Reach (Min)	29.5″ / 750mm (2 stage)
Rear Arm Reach (Max)	58.2″ / 900mm (2 stage)
Rear Arm Reach (Min)	35.4″ / 1480mm (2 stage)
Motor	220VAC / 60HZ / 1PH / 2.2KW
Net Weight	1,256 lbs / 570KG
