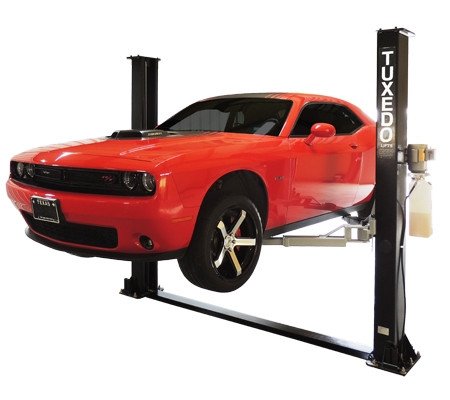

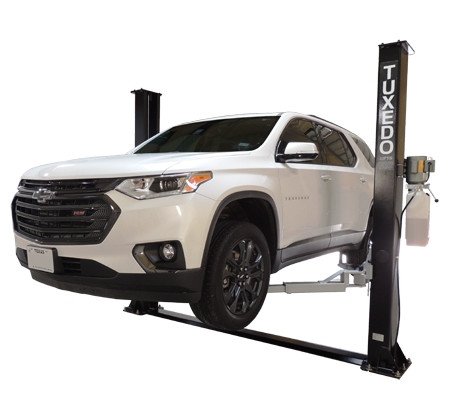

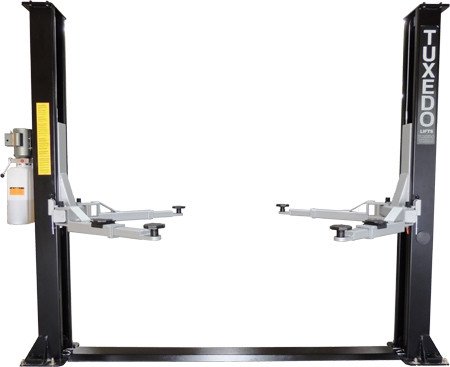

Tuxedo TP9KF-TUX 9K Symmetric Floor Plate 2 Post Car Lift
SKU: TP9KF-TUX
Selling price:$1,229.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 9000 lbs
- Configuration: Symmetric
- Overall width: 141"
Product Decision Guide
Key facts for this configuration
- Capacity
- 9000 lbs
- Configuration
- Symmetric
- Overall width
- 141"
- Maximum rise
- 72"
- Power requirement
- 220V - 20 AMP - 1 PH
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
Tuxedo TP9KF-TUX 9K Symmetric Floor Plate 2 Post Car Lift
This page consolidates the recorded data for Tuxedo TP9KF-TUX 9K Symmetric Floor Plate 2 Post Car Lift, a two-post vehicle lift rated at 9,000 lbs. Model identifiers, site inputs and configurable selections appear in separate sections.
Key product facts
- Manufacturer: Tuxedo
- Model: TP9KF-TUX
- SKU: TP9KF-TUX
- Lift format: two-post vehicle lift
- Listed capacity: 9,000 lbs
- Configuration: Symmetric
- Power or motor requirement: 220V – 20 AMP – 1 PH
- Maximum lifting height: 72"
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Capacity detail: 9,000 lb. lifting capacity.
- Design detail: symmetric design with floor plate construction.
- Lifting interface: low profile 4" drop-in lift pads.
- Power system: fast 50-second lifting speed powered by efficient 220V, 20 AMP, single phase electric system.
- Construction: chain drive cylinders and one-piece columns.
- Lifting interface: symmetric lift arms.
- Lifting interface: low profile swing arm design.
- Lifting interface: low profile 'drop in' lift pads.
Available configurations and accessories
- Optional 110V Voltage Available: 110 Voltage Power Unit
Technical specifications
| Specification | Recorded value |
|---|---|
| Symmetric/Asymmetric | Symmetric |
| ALI | No |
| Weight Capacity | 9000 lbs |
| Capacity | 9,000 lbs. |
| Overall Height | 112" |
| Width Overall w/Power Unit | 141" |
| Max Lift Height | 72" |
| Width Between Columns | 110.4" |
| Min Pad Height | 4" |
| Drive thru Clearance | 101.7" |
| Lifting speed | 50 sec |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Arm Reach – Min/Max | 31.2" – 45.4" |
| Ceiling Height Required | 113" |
| Max Load Per Arm | 2,250 lbs. |
| Power | 220V – 20 AMP – 1 PH |
| Ship Weight | 1,295 lbs. |
| Optional 110V Voltage Available | No, 110 Voltage Power Unit |
Manufacturer warranty reference — verification required
Warranty information recorded for Tuxedo lists: structural components: 5 years; limited manufacturer coverage: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Tuxedo |
|---|---|
| Symmetric/Asymmetric | Symmetric |
| Weight Capacity | 9000 lbs |
| lift_type | 2-post |
| lift_height | 112 |
| lift_width | 141 |
| Rebate | Sale Price Valid thru July 31st or While Supplies Last |
| flatrate | 400 |
| Capacity | 9,000 lbs. |
| Overall Height | 112″ |
| Width Overall w/Power Unit | 141″ |
| Max Lift Height | 72″ |
| Width Between Columns | 110.4″ |
| Min Pad Height | 4″ |
| Drive thru Clearance | 101.7″ |
| Lifting speed | 50 sec |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Arm Reach - Min/Max | 31.2″ – 45.4″ |
| Ceiling Height Required | 113″ |
| Max Load Per Arm | 2,250 lbs. |
| Power | 220V – 20 AMP – 1 PH |
| Ship Weight | 1,295 lbs. |
| Forklift? | No, I do not have a forklift. Please call me with delivery options., Yes, I have a forklift at the delivery location., Please drop off lift at local freight terminal. |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I don’t want a 24 hour Delivery Notice, I want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
