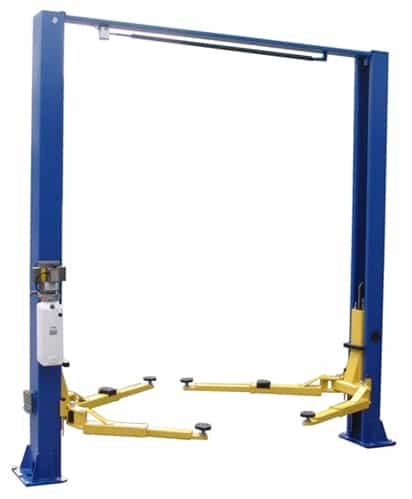

Auto Lift AL2-9K-ACX 9,000 lb. Asymmetric 2 Post Car Lifts - Image 1

Auto Lift AL2-9K-ACX 9,000 lb. Asymmetric 2 Post Car Lifts - Image 2

Click to enlarge

Auto Lift

Auto Lift 9000 lbs capacity In stock Sale

Auto Lift AL2-9K-ACX 9,000 lb. Asymmetric 2 Post Car Lifts

Name: Auto Lift AL2-9K-ACX 9,000 lb. Asymmetric 2 Post Car Lifts
Brand: Auto Lift
SKU: AL2-9K-ACX
Price: 1350.00 USD
Availability: InStock

SKU: AL2-9K-ACX

Selling price:$1,350.00

Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.

Capacity: 9000 lbs
Configuration: Asymmetric
Overall width: 138"

Add to wishlist

ShippingConfirm delivery cost, timing, access, and freight requirements before ordering. Returns & FreightReview return authorization and freight-damage requirements. Product GuidanceAsk Lift Care to review model, options, and delivery access. Ordering AssistanceConfirm the configuration and current manufacturer documents.

SKU: AL2-9K-ACX Categories: 2 Post Lifts, Car Lifts Tags: Mid-Range, Sale

Product Decision Guide

Key facts for this configuration

Capacity: 9000 lbs
Configuration: Asymmetric
Overall width: 138"
Maximum rise: 72"
Power requirement: 220V - 20 AMP - 1 PH

Before You Order

Will this lift fit your bay and workflow?

Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.

Request a Product Fit Check

Vehicle & Capacity

Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.

Bay & Clearances

Check overall width, length, ceiling height, door travel, and working clearance.

Floor & Utilities

Verify concrete, anchoring, electrical, and air requirements in the current manual.

Freight Receiving

Prepare carrier access, an available contact, and suitable unloading equipment.

Product Details

Auto Lift AL2-9K-ACX 9,000 lb. Asymmetric 2 Post Car Lifts

Selection data for this Auto Lift two-post vehicle lift is grouped by identity, physical size, required utilities and configuration. The cataloged capacity is 9,000 lb. Cross-check the chosen model against the intended vehicle and work area.

Key product facts

Manufacturer: Auto Lift
Model: AL2-9K-ACX
SKU: AL2-9K-ACX
Lift format: two-post vehicle lift
Listed capacity: 9,000 lb
Configuration: Asymmetric

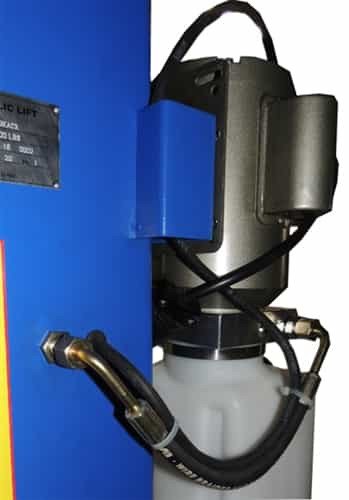

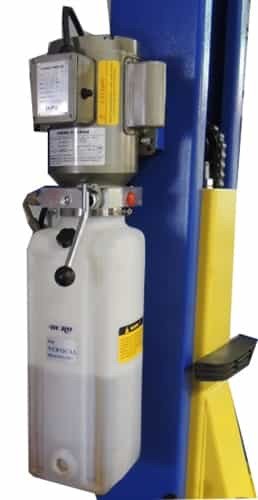

Power or motor requirement: 220V – 20 AMP – 1 PH
Maximum lifting height: 72"
Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.

Design and functional details

Capacity detail: 9,000 lb. lifting capacity.
Design detail: clear floor design.

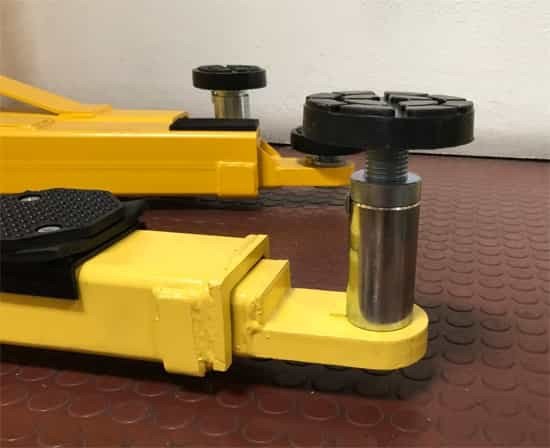

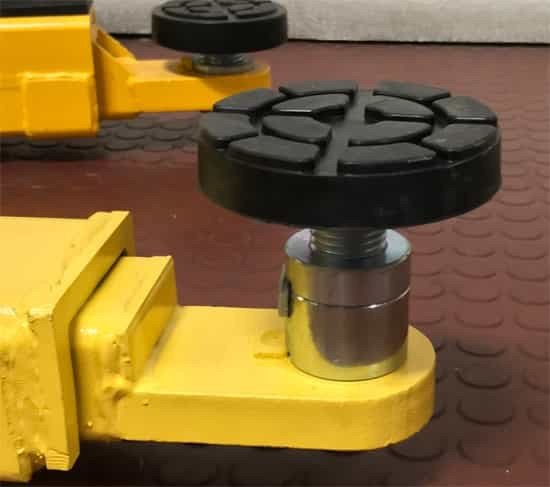

Lifting interface: 72-inch max lift height with adjustable arms: front reach 29".
Safety design: chain drive system with dual-point lock release.
Lifting interface: construction: 5mm column and carriage steel, 6mm arm steel thickness, 3/8" steel cable.
Design detail: construction.
Construction: chain drive.
Safety design: dual point lock release.

Available configurations and accessories

Optional 110V Voltage Available: 110 Voltage Power Unit

Technical specifications

Specification	Recorded value
Symmetric/Asymmetric	Asymmetric
ALI	No
Weight Capacity	9000 lbs
Capacity	9,000 lbs.
Overall Height	142.9"
Height Shut Off Bar	137-1/4"
Width Overall w/Power Unit	138"
Max Lift Height	72"
Width Between Columns	113.6"
Min Pad Height	4"
Drive thru Clearance	96"
Lifting speed	50 sec
Asymmetric / Symmetric	Asymmetric
Clear Floor / Floor Plate	Clear Floor
Front Arm Reach – min/max	29" – 41"
Rear Arm Reach – min/max	37" – 57"
Max Load Per Arm	2,250 lbs.
Cable Diameter	3/8"
Column Size	7.25" x 10.87"
Column Steel Thickness	5mm
Carriage Steel Thickness	5mm
Arm Steel Thickness	6mm
Power	220V – 20 AMP – 1 PH
Ship Weight	1,370 lbs.
Optional 110V Voltage Available	110 Voltage Power Unit, No

Manufacturer warranty reference — verification required

Warranty information recorded for Auto Lift lists: structural components: 5 years; limited manufacturer coverage: 1 year; materials and workmanship: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.

Compatibility and site review

Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.

Specifications

Brand	Auto Lift
Symmetric/Asymmetric	Asymmetric
Weight Capacity	9000 lbs
Rebate	Sale Price Valid thru July 31st or While Supplies Last
lift_type	2-post
lift_height	142.9
lift_width	138
flatrate	400
Capacity	9,000 lbs.
Overall Height	142.9″
Height Shut Off Bar	137-1/4″
Width Overall w/Power Unit	138″
Max Lift Height	72″
Width Between Columns	113.6″
Min Pad Height	4″
Drive thru Clearance	96″
Lifting speed	50 sec
Asymmetric / Symmetric	Asymmetric
Clear Floor / Floor Plate	Clear Floor
Front Arm Reach - min/max	29″ – 41″
Rear Arm Reach - min/max	37″ – 57″
Max Load Per Arm	2,250 lbs.
Cable Diameter	3/8″
Column Size	7.25″ x 10.87″
Column Steel Thickness	5mm
Carriage Steel Thickness	5mm
Arm Steel Thickness	6mm
Power	220V – 20 AMP – 1 PH
Ship Weight	1,370 lbs.
Forklift?	Choose an option, Yes, I have a forklift at the delivery location., No, I do not have a forklift. Please call me with delivery options.
Delivery Notice	I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice
