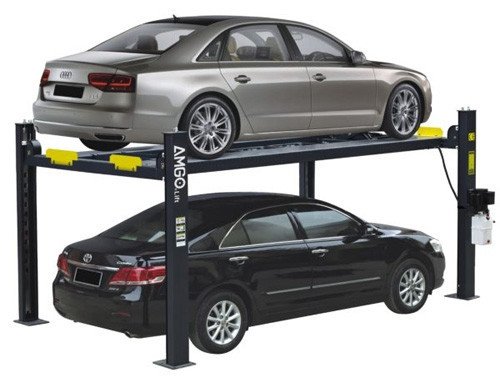

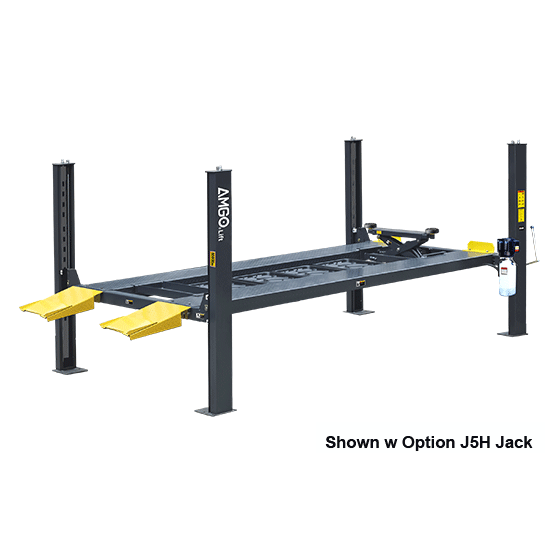

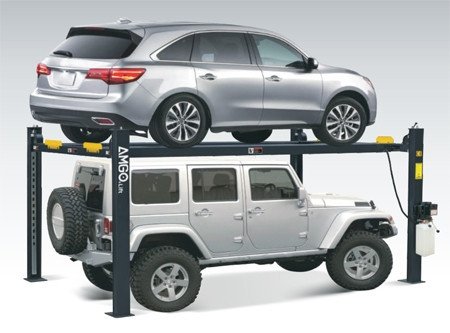

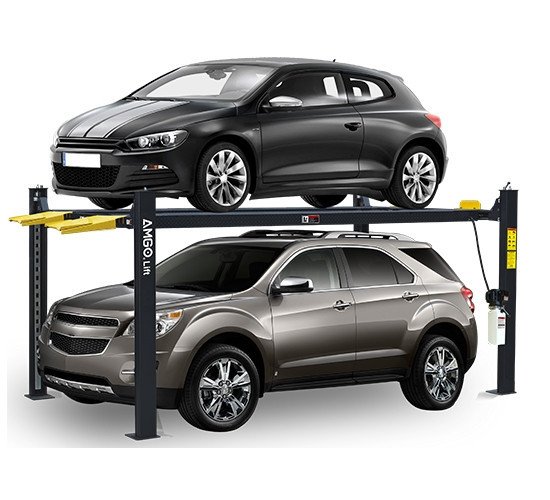

AMGO® Hydraulics 408-PCA Parking & Service 4 Post Lift 8,000 lbs
SKU: 408-PCA
Selling price:$1,667.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 8000 lbs
- Overall width: 109 5/8" (2784mm)
- Power requirement: 1.0 HP / 110V
Product Decision Guide
Key facts for this configuration
- Capacity
- 8000 lbs
- Overall width
- 109 5/8" (2784mm)
- Power requirement
- 1.0 HP / 110V
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
AMGO® Hydraulics 408-PCA Parking & Service 4 Post Lift 8,000 lbs
The recorded specifications describe AMGO® Hydraulics 408-PCA Parking & Service 4 Post Lift 8,000 lbs as a parking lift rated at 8,000 lbs. This summary separates fixed product data from model-dependent options and supplied components.
Key product facts
- Manufacturer: AMGO Hydraulics
- Model: 408-PCA
- SKU: 408-PCA
- Lift format: parking lift
- Listed capacity: 8,000 lbs
- Power or motor requirement: 1.0 HP / 110V
- Maximum lifting height: 73 3/4" (1872mm)
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Capacity detail: 8,000 lbs. capacity.

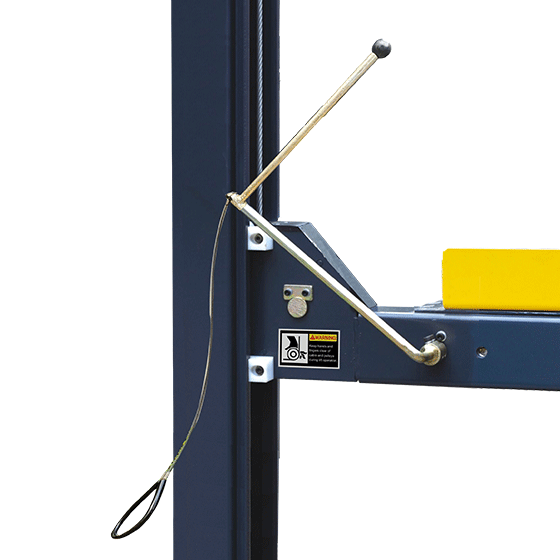

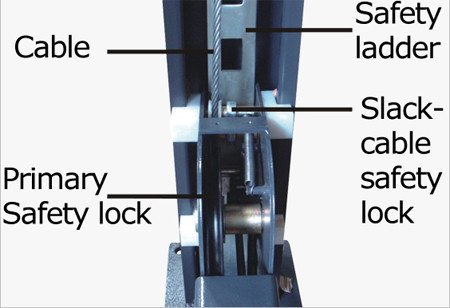

- Safety design: aMGO exclusive hidden safety locks and manual single-point release device.

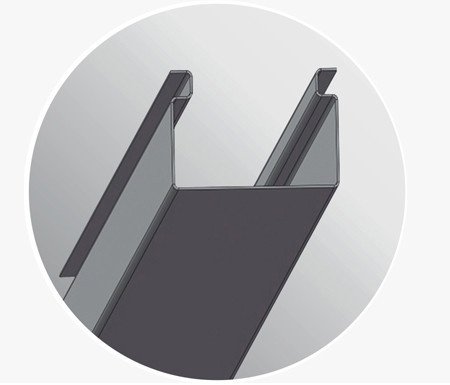

- Design detail: double-s shaped columns help increase the columns strength.
- Platform design: skid proof diamond platform.
- Power system: the power side column can be installed at any corner with optional 90° motor installing plate.
- Mobility: designed to be portable, it can be easily moved by using the optional caster kit.

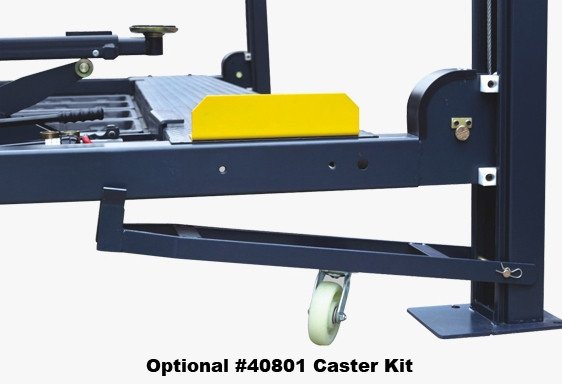

- Mobility: # 40801 caster kit.

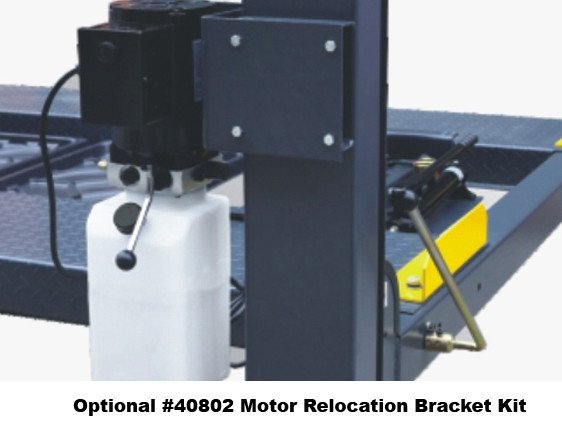

- Power system: # 40802 90° motor installing plate.
Available configurations and accessories
- Optional 220V Motor: 2.0HP 220V/60Hz
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | No |
| Weight Capacity | 8000 lbs |
| Lifting Capacity | 8,000 lbs |
| Overall Length w/Ramp | 207" (5257mm) |
| Overall Width | 109 5/8" (2784mm) |
| Width Between Columns | 96" (2438mm) |
| Lifting Height | 73 3/4" (1872mm) |
| Overall Height | 82 7/8" (2105mm) |
| Lifting Time | 40 S |
| Motor | 1.0 HP / 110V |
| Optional 220V Motor | 2.0HP 220V/60Hz, No |
Manufacturer warranty reference — verification required
Warranty information recorded for AMGO Hydraulics lists: limited manufacturer coverage: 5 years; parts: 3 years; electrical components: 2 years. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | AMGO Hydraulics |
|---|---|
| Weight Capacity | 8000 lbs |
| lift_type | 4-post |
| lift_height | 82.875 |
| lift_width | 109.625 |
| lift_depth_with_ramps | 207 |
| Rebate | Sale Price Available While Supplies Last ~ ONLY Ships From CA |
| Lifting Capacity | 8,000 lbs |
| Overall Length w/Ramp | 207″ (5257mm) |
| Overall Width | 109 5/8″ (2784mm) |
| Width Between Columns | 96″ (2438mm) |
| Lifting Height | 73 3/4″ (1872mm) |
| Overall Height | 82 7/8″ (2105mm) |
| Lifting Time | 40 S |
| Motor | 1.0 HP / 110V |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address., Please drop off lift at local freight terminal. |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
