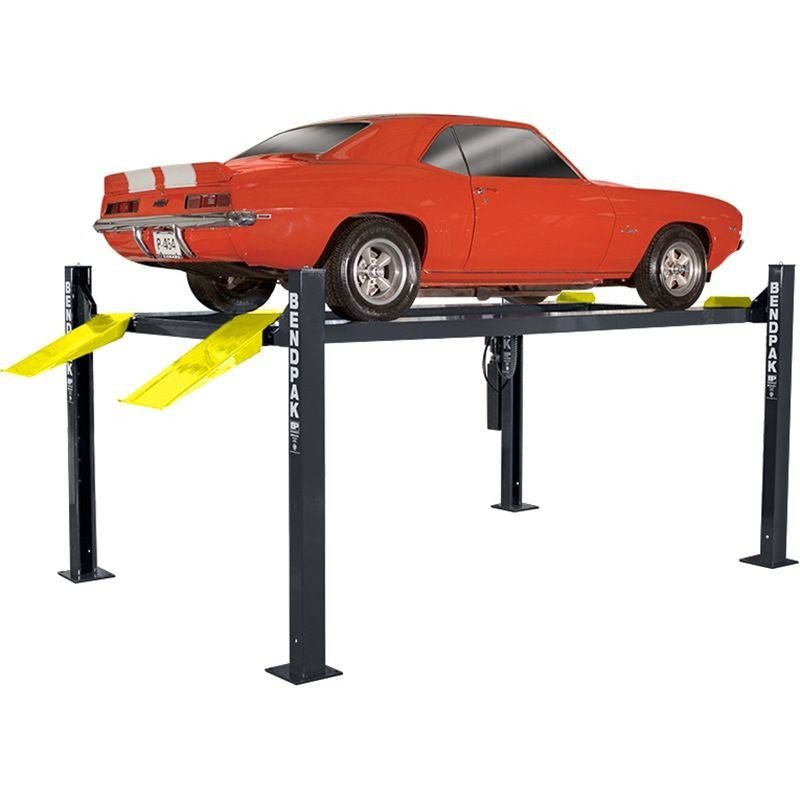

BendPak HD-9ST Narrow Width 4 Post Car Lift 9,000 lb. – New Gray
SKU: 5175860
Selling price:$2,997.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 9000 lbs
- Configuration: Narrow Width | Narrow / High Lift
- Overall width: 100.25" (2,546 mm)
Product Decision Guide
Key facts for this configuration
- Capacity
- 9000 lbs
- Configuration
- Narrow Width | Narrow / High Lift
- Overall width
- 100.25" (2,546 mm)
- Maximum rise
- 74.5" (1,892 mm) | 86.5" (2,197 mm)
- Power requirement
- 220 VAC / 60 Hz / 1Ph
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
BendPak HD-9ST Narrow Width 4 Post Car Lift 9,000 lb. – New Gray
BendPak HD-9ST Narrow Width 4 Post Car Lift 9,000 lb. – New Gray uses the parking lift format identified in the product records. Its stated capacity is 9,000 lb. The description below brings measurements, supplied equipment and configuration choices into one technical reference.
Key product facts
- Manufacturer: BendPak
- Model: HD-9ST | HD-9STX
- SKU: 5175860

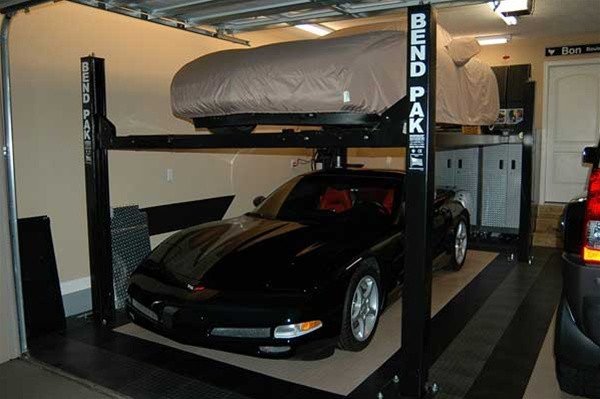

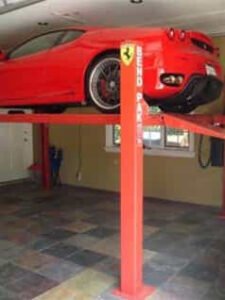

- Lift format: parking lift
- Listed capacity: 9,000 lb
- Configuration: Narrow Width | Narrow / High Lift
- Power or motor requirement: 220 VAC / 60 Hz / 1Ph
- Maximum lifting height: 74.5" (1,892 mm) | 86.5" (2,197 mm)
- Manufacturer-listed certification status: BendPak product data lists this model as ALI certified; verify the current certification record before publication.
Design and functional details
- Capacity detail: 9,000-lb. lifting capacity with 4,500 lbs. per axle.
- Design detail: narrow width design (100.25" overall width).

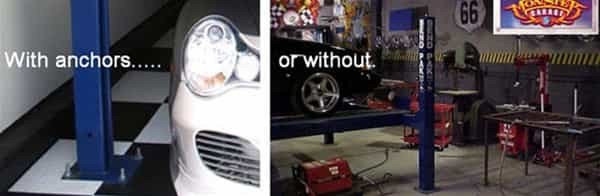

- Design detail: freestanding installation.
- Power system: electric/hydraulic power system with a single hydraulic cylinder concealed under the runway.

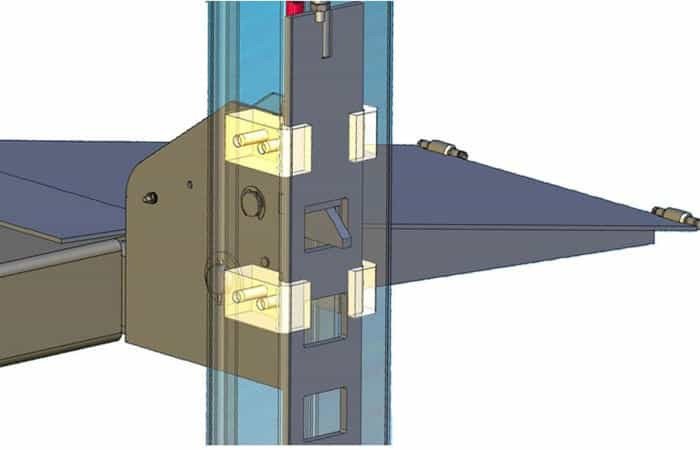

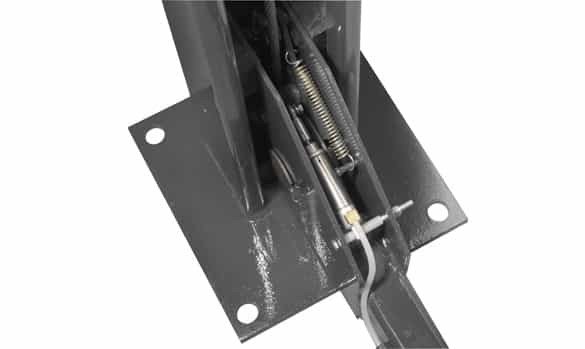

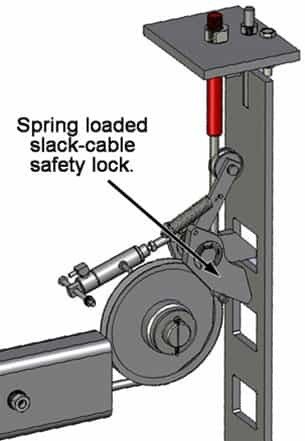

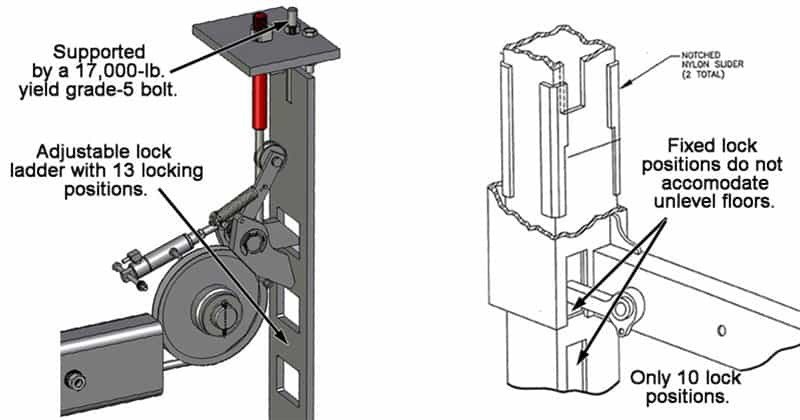

- Safety design: multi-position pneumatic safety locks (12 positions, every 4") with push-button release and independent slack-cable backup latches.
- Design detail: 70" maximum rise with 74.5" lifting height.

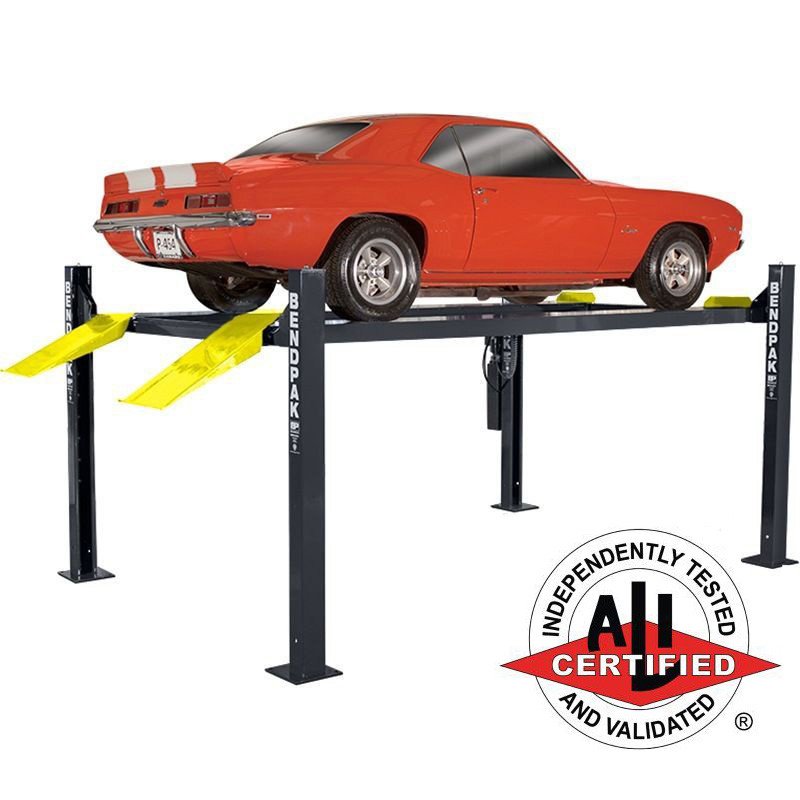

- Manufacturer-listed certification: ETL approved; ALI-certified.
- Capacity detail: 9,000-lb. maximum lifting capacity.
Available configurations and accessories
- Voltages Available: 220V; 110V
- Model: HD-9ST; HD-9STX
- Style: Narrow Width; Narrow / High Lift
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | Yes |
| Weight Capacity | 9000 lbs |
| Model | HD-9ST | HD-9STX |
| Style | Narrow Width | Narrow / High Lift |
| Lifting Capacity: (*) | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A – Min. Runway Height | 4.5" (114 mm) |
| B – Max. Rise | 70" (1,778 mm) | 82" (2,083 mm) |
| C – Max. Lifting Height | 74.5" (1,892 mm) | 86.5" (2,197 mm) |
| Time to Full Rise | 45 seconds | 50 seconds |
| D – Overall Width | 100.25" (2,546 mm) |
| E – Outside Length | 174" (4,420 mm) | 198" (5,029 mm) |
| F – Overall Length | 200" (5,080 mm) | 224" (5,690 mm) |
| G – Height of Columns | 88" (2,235 mm) | 100" (2,540 mm) |
| H – Width Between Columns | 89.75" (2,280 mm) |
| I – Drive-Thru Clearance | 76.5" (1,943 mm) |
| J – Runway Width | 19" (483 mm) |
| K – Length of Runways | 164" (4,166 mm) | 188" (4,775 mm) |
| L – Width Between Runways | 37.5" (953 mm) |
| M – Runway Centerline | 56.5" (1,435 mm) |
| N – Outside Edge of Runways | 75.5" (1,918 mm) |
| Rated Capacity | 115" (2,921 mm) | 135" (3,429 mm) |
| 75% Capacity | 100" (2,540 mm) | 115" (2,921 mm) |
| 50% Capacity | 85" (2,159 mm) | 95" (2,413 mm) |
| 25% Capacity | 70" (1,778 mm) | 80" (2,032 mm) |
| Locking Positions | 12 | 15 |
| Lock Spacing | Every 4" (102 mm) |
| Motor | 220 VAC / 60 Hz / 1Ph |
| Noise | 45 dB |
| Weight | 1,630 lbs. (739.4 kg) | 1,782-lbs. (808.3 kg) |
| Dimensions | 180" x 22" x 40" (4,572 x 559 x 1,016 mm) | 190" x 22" x 35" (4,826 x 559 x 889 mm) |
| Voltages Available | 220V, 110V |
Manufacturer warranty reference — verification required
Warranty information recorded for BendPak lists: structural components: 5 years; hydraulic cylinder: 2 years; limited manufacturer coverage: 1 year; power unit: 1 year; labor: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | BendPak |
|---|---|
| Item | Product |
| Weight Capacity | 9000 lbs |
| lift_type | 4-post |
| lift_height | 88 |
| lift_width | 100.25 |
| lift_depth | 174 |
| lift_depth_with_ramps | 200 |
| Model | HD-9ST, HD-9STX |
| Style | Narrow Width, Narrow / High Lift |
| Lifting Capacity: (*) | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A - Min. Runway Height | 4.5″ (114 mm) |
| B - Max. Rise | 70″ (1,778 mm), 82″ (2,083 mm) |
| C - Max. Lifting Height | 74.5″ (1,892 mm), 86.5″ (2,197 mm) |
| Time to Full Rise | 45 seconds, 50 seconds |
| D - Overall Width | 100.25″ (2,546 mm) |
| E - Outside Length | 174″ (4,420 mm), 198″ (5,029 mm) |
| F - Overall Length | 200″ (5,080 mm), 224″ (5,690 mm) |
| G - Height of Columns | 88″ (2,235 mm), 100″ (2,540 mm) |
| H - Width Between Columns | 89.75″ (2,280 mm) |
| I - Drive-Thru Clearance | 76.5″ (1,943 mm) |
| J - Runway Width | 19″ (483 mm) |
| K - Length of Runways | 164″ (4,166 mm), 188″ (4,775 mm) |
| L - Width Between Runways | 37.5″ (953 mm) |
| M - Runway Centerline | 56.5″ (1,435 mm) |
| N - Outside Edge of Runways | 75.5″ (1,918 mm) |
| Rated Capacity | 115″ (2,921 mm), 135″ (3,429 mm) |
| 75% Capacity | 100″ (2,540 mm), 115″ (2,921 mm) |
| 50% Capacity | 85″ (2,159 mm), 95″ (2,413 mm) |
| 25% Capacity | 70″ (1,778 mm), 80″ (2,032 mm) |
| Locking Positions | 12, 15 |
| Lock Spacing | Every 4″ (102 mm) |
| Motor | 220 VAC / 60 Hz / 1Ph |
| Noise | 45 dB |
| Weight | 1,630 lbs. (739.4 kg), 1,782-lbs. (808.3 kg) |
| Dimensions | 180″ x 22″ x 40″ (4,572 x 559 x 1,016 mm), 190″ x 22″ x 35″ (4,826 x 559 x 889 mm) |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address., Local Freight Terminal Pick-Up “Preferred” |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
