Challenger CLHM-140 ALI HD Mobile Column Lift 14,000 lbs – Single
SKU: CLHM-140
Selling price:$6,324.39
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 14000 lbs
- Power requirement: 4HP
Product Decision Guide
Key facts for this configuration
- Capacity
- 14000 lbs
- Power requirement
- 4HP
- Model
- CLHM-140 | CLHM-190 | CLHM-190W
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.

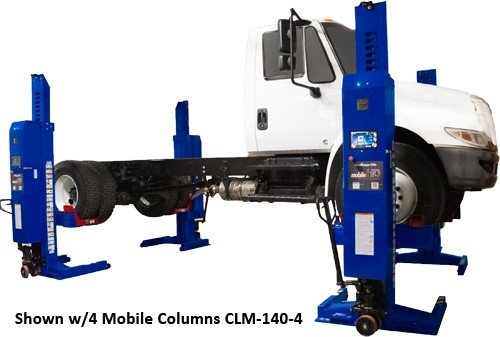

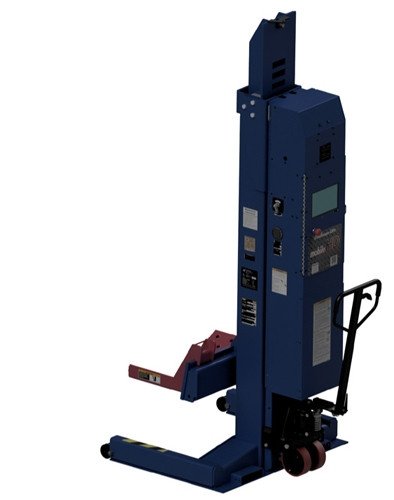

Challenger CLHM-140 ALI HD Mobile Column Lift 14,000 lbs – Single
The recorded specifications describe Challenger CLHM-140 ALI HD Mobile Column Lift 14,000 lbs – Single as a mobile column lift system rated at 14,000 lbs. This summary separates fixed product data from model-dependent options and supplied components.
Key product facts
- Manufacturer: Challenger
- Model: CLHM-140 | CLHM-190 | CLHM-190W
- SKU: CLHM-140
- Lift format: mobile column lift system
- Listed capacity: 14,000 lbs
- Manufacturer-listed certification status: Challenger product data lists this model as ALI certified; verify the current certification record before publication.
Design and functional details
- Capacity detail: 14,000 lbs capacity per column.

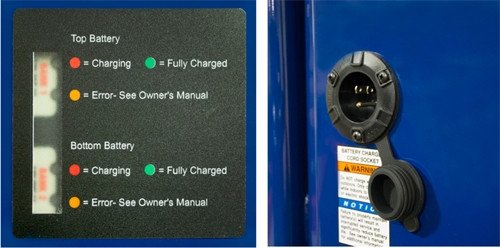

- Power system: wireless, battery-powered operation with integrated 110V charging system.

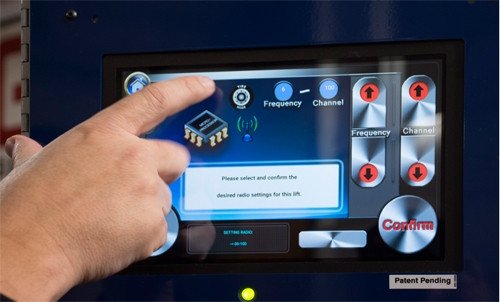

- Design detail: 10" android touch screen console with on-board training and real-time data.
- Manufacturer-listed certification: ALI gold label certified.
- Mobility: spring-loaded wheels and balanced design.
- Power system: 110 volt built in multi-stage charging system.

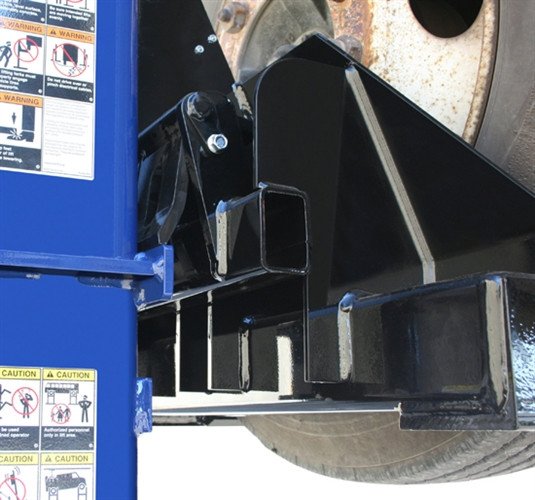

- Compatibility: adjustable wheel carriages fits a range of wheels.
- Design detail: integrated touch screen control console.
Available configurations and accessories
- Model: CLHM-140; CLHM-190; CLHM-190W
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | Yes |
| Weight Capacity | 14000 lbs |
| Model | CLHM-140 | CLHM-190 | CLHM-190W |
| Lift Capacity Per Column | 14,000 lbs. | 19,000 lbs. |
| A – Height of Lift Unit | 88.5" (2,248 mm) |
| B – Height of Lift Unit at Full Rise | 157.125" (3,991 mm) |
| C – Width of Lift Unit | 44.25" (1,124 mm) | 49" (1,245 mm) |
| D – Length of Lift Unit | 53.625" (1,362 mm) |
| E – Maximum Lift Height (4 or more units) | 69" (1,753 mm) |
| Maximum Lift Height (2 units – Normal Mode) | 32" (813 mm) |
| F – Min-Max Wheel Diameter | 5" – 24.5" (127 -622mm) | 4" – Max det. by tire size |
| Max. Hydraulic System Operating Pressure | 2,180 psi | 2,600 psi |
| Lift Speed (Max Load) | 60" per min. (1524 mm) |
| Weight of Lift Unit | 1,485 lbs (674 kg) | 1,500 lbs (685 kg) | 1,565 lbs (714 kg) |
| Footprint of Lift Unit | 560" 2 (3,613 sq cm) | 600" 2 (3,870 sq cm) |
| Ground Pressure for Each Lift (Max. Load) | 27.7 psi | 36.6 psi | 34.3 psi |
| Turning Radius of Lift Unit | 47" (1194 mm) |
| Operating Peak Power | 4HP |
| Operating Voltage | 24 VDC Nominal | 25 VDC Nominal | 26 VDC Nominal |
| Charger Amps Required | 1.3 Amps |
| ALI/ETL Certified | Yes |
Manufacturer warranty reference — verification required
Warranty information recorded for Challenger lists: parts: 2 years; hydraulic cylinder: 5 years; labor: 1 year; materials and workmanship: Lifetime. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Challenger |
|---|---|
| leadtime | This Item has a 10-Business Day Lead-Time |
| Weight Capacity | 14000 lbs |
| Model | CLHM-140, CLHM-190, CLHM-190W |
| Lift Capacity Per Column | 14,000 lbs., 19,000 lbs. |
| A - Height of Lift Unit | 88.5″ (2,248 mm) |
| B - Height of Lift Unit at Full Rise | 157.125″ (3,991 mm) |
| C - Width of Lift Unit | 44.25″ (1,124 mm), 49″ (1,245 mm) |
| D - Length of Lift Unit | 53.625″ (1,362 mm) |
| E - Maximum Lift Height (4 or more units) | 69″ (1,753 mm) |
| Maximum Lift Height (2 units - Normal Mode) | 32″ (813 mm) |
| F - Min-Max Wheel Diameter | 5″ – 24.5″ (127 -622mm), 4″ – Max det. by tire size |
| Max. Hydraulic System Operating Pressure | 2,180 psi, 2,600 psi |
| Lift Speed (Max Load) | 60″ per min. (1524 mm) |
| Weight of Lift Unit | 1,485 lbs (674 kg), 1,500 lbs (685 kg), 1,565 lbs (714 kg) |
| Footprint of Lift Unit | 560″ 2 (3,613 sq cm), 600″ 2 (3,870 sq cm) |
| Ground Pressure for Each Lift (Max. Load) | 27.7 psi, 36.6 psi, 34.3 psi |
| Turning Radius of Lift Unit | 47″ (1194 mm) |
| Operating Peak Power | 4HP |
| Operating Voltage | 24 VDC Nominal, 25 VDC Nominal, 26 VDC Nominal |
| Charger Voltage Required | 120 VAC @ 60 Hz |
| Charger Amps Required | 1.3 Amps |
| ALI/ETL Certified | Yes |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address. |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
