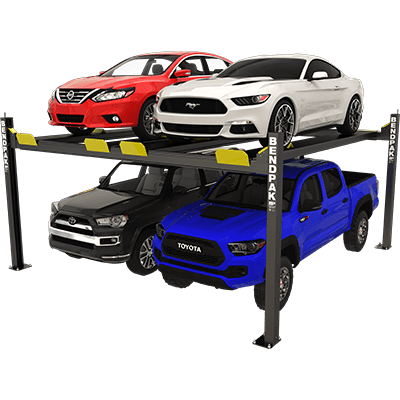

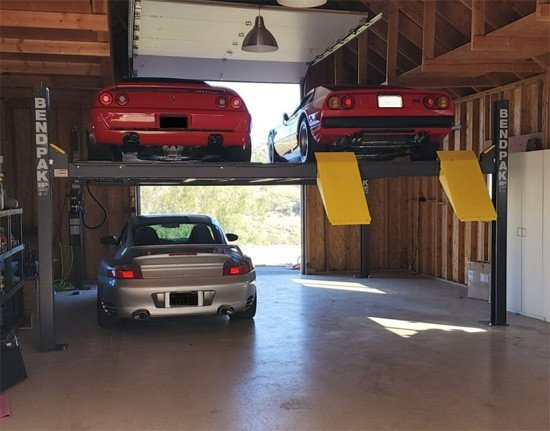

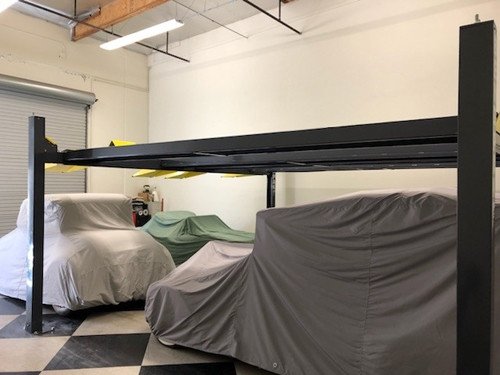

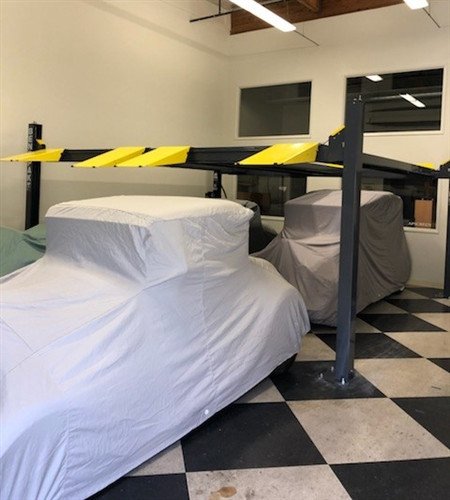

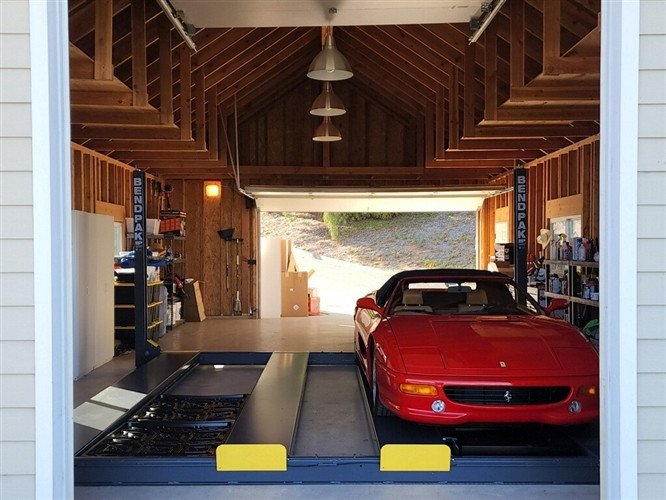

BendPak HD-9SWX Double-Wide 82″ Rise Storage/Parking Lift 9,000 lb – New Gray
SKU: 5175024
Selling price:$6,297.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 9000 lbs
- Configuration: Super Wide | Extra Wide | Super Wide/Extended Length
- Overall width: 202" (5,131 mm) | 248" (6,300 mm) | 202" (5,131 mm)
Product Decision Guide
Key facts for this configuration
- Capacity
- 9000 lbs
- Configuration
- Super Wide | Extra Wide | Super Wide/Extended Length
- Overall width
- 202" (5,131 mm) | 248" (6,300 mm) | 202" (5,131 mm)
- Maximum rise
- 77.5" (1,969 mm) | 89" (2,261 mm)
- Power requirement
- 220 VAC / 60 Hz / 1Ph
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.

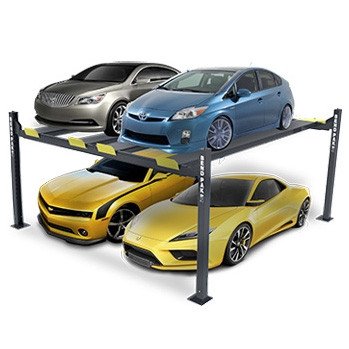

BendPak HD-9SWX Double-Wide 82" Rise Storage/Parking Lift 9,000 lb – New Gray
Catalog records identify BendPak HD-9SWX Double-Wide 82" Rise Storage/Parking Lift 9,000 lb – New Gray as a parking lift with a capacity of 9,000 lb. Product identifiers, measurements, utilities and configurable items are separated for review.
Key product facts
- Manufacturer: BendPak
- Model: HD-9SW | HD-9SW-E | HD-9SWX
- SKU: 5175024
- Lift format: parking lift
- Listed capacity: 9,000 lb
- Configuration: Super Wide | Extra Wide | Super Wide/Extended Length
- Power or motor requirement: 220 VAC / 60 Hz / 1Ph
- Maximum lifting height: 77.5" (1,969 mm) | 89" (2,261 mm)
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Capacity detail: 9,000-lb. maximum lifting capacity with 82" maximum rise and 89" maximum lifting height —perfect.

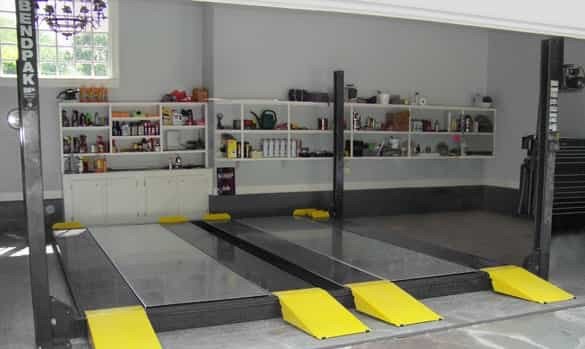

- Platform design: double-wide freestanding design with four adjustable runways.
- Platform design: extended-length model with 188" runways and 48" extended aluminum ramps included.
- Safety design: 16 multi-position safety locks (one every 4") with push-button pneumatic release and independent backup slack-cable safety.
- Power system: high-speed lifting system (65 seconds to full rise) with single 220V/60Hz/1Ph electric-hydraulic power unit and ultra-quiet.
- Capacity detail: 9,000-lb. maximum lifting capacity.
- Design detail: freestanding design.
- Design detail: perfect.
Included equipment
- 1 Pair – #5174670 48" Extended Aluminum Ramps
Available configurations and accessories
- Model: HD-9SW; HD-9SW-E; HD-9SWX
- Style: Super Wide; Extra Wide; Super Wide/Extended Length
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | No |
| Weight Capacity | 9000 lbs |
| Model | HD-9SW | HD-9SW-E | HD-9SWX |
| Style | Super Wide | Extra Wide | Super Wide/Extended Length |
| Lifting Capacity: (*) | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A – Min. Runway Height | 7" (178 mm) |
| B – Max. Rise | 70" (1,778 mm) | 82" (2,083 mm) |
| C – Max. Lifting Height | 77.5" (1,969 mm) | 89" (2,261 mm) |
| Time to Full Rise | 55 seconds | 65 seconds |
| D – Overall Width | 202" (5,131 mm) | 248" (6,300 mm) | 202" (5,131 mm) |
| E – Outside Length | 174" (4,420 mm) | 198" (5,029 mm) |
| F – Overall Length | 200.5" (5,095 mm) | 224.5" (5,705 mm) |
| G – Height of Columns | 90" (2,286 mm) | 102" (2,591 mm) |
| H – Width Between Columns | 192" (4,877 mm) | 238" (6,046 mm) | 192" (4,877 mm) |
| I – Drive-Thru Clearance | 178" (4,521 mm) | N/A | 178" (4,521 mm) |
| J – Runway Width | 19" (483 mm) |
| K – Length of Runways | 164.5" (4,178 mm) | 188" (4,775 mm) |
| L – Width Between Runways | 37" or 42" (940 or 1,067 mm) |
| M – Runway Centerline | 56" or 61" (1,422 or 1,549 mm) |
| N – Outside Edge of Runways | 75" or 80" (1,905 or 2,032 mm) |
| Rated Capacity | 115" (2,921 mm) | 135" (3,429 mm) |
| 75% Capacity | 100" (2,540 mm) | 115" (2,921 mm) |
| 50% Capacity | 85" (2,159 mm) | 95" (2,413 mm) |
| 25% Capacity | 70" (1,778 mm) | 80" (2,032 mm) |
| Locking Positions | 14 | 16 |
| Lock Spacing | Every 4" (102 mm) |
| Motor | 220 VAC / 60 Hz / 1Ph |
| Noise | 45 dB |
| Weight | 2,752-lbs. (1,248.3 kg) | N/A | 2,987-lbs. (1354.9 kg) |
| Dimensions | 219" x 21" x 42" (5,563 mm x 533 mm x 1,067 mm) | N/A | 206" x 22" x 40" (5,232 mm x 559 mm x 1,016 mm) |
Manufacturer warranty reference — verification required
Warranty information recorded for BendPak lists: hydraulic cylinder: 2 years; labor: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | BendPak |
|---|---|
| Weight Capacity | 9000 lbs |
| lift_type | 4-post |
| lift_height | 102 |
| lift_width | 202 |
| lift_depth | 198 |
| lift_depth_with_ramps | 224.5 |
| Model | HD-9SW, HD-9SW-E, HD-9SWX |
| Style | Super Wide, Extra Wide, Super Wide/Extended Length |
| Lifting Capacity: (*) | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A - Min. Runway Height | 7″ (178 mm) |
| B - Max. Rise | 70″ (1,778 mm), 82″ (2,083 mm) |
| C - Max. Lifting Height | 77.5″ (1,969 mm), 89″ (2,261 mm) |
| Time to Full Rise | 55 seconds, 65 seconds |
| D - Overall Width | 202″ (5,131 mm), 248″ (6,300 mm), 202″ (5,131 mm) |
| E - Outside Length | 174″ (4,420 mm), 198″ (5,029 mm) |
| F - Overall Length | 200.5″ (5,095 mm), 224.5″ (5,705 mm) |
| G - Height of Columns | 90″ (2,286 mm), 102″ (2,591 mm) |
| H - Width Between Columns | 192″ (4,877 mm), 238″ (6,046 mm), 192″ (4,877 mm) |
| I - Drive-Thru Clearance | 178″ (4,521 mm), N/A, 178″ (4,521 mm) |
| J - Runway Width | 19″ (483 mm) |
| K - Length of Runways | 164.5″ (4,178 mm), 188″ (4,775 mm) |
| L - Width Between Runways | 37″ or 42″ (940 or 1,067 mm) |
| M - Runway Centerline | 56″ or 61″ (1,422 or 1,549 mm) |
| N - Outside Edge of Runways | 75″ or 80″ (1,905 or 2,032 mm) |
| Rated Capacity | 115″ (2,921 mm), 135″ (3,429 mm) |
| 75% Capacity | 100″ (2,540 mm), 115″ (2,921 mm) |
| 50% Capacity | 85″ (2,159 mm), 95″ (2,413 mm) |
| 25% Capacity | 70″ (1,778 mm), 80″ (2,032 mm) |
| Locking Positions | 14, 16 |
| Lock Spacing | Every 4″ (102 mm) |
| Motor | 220 VAC / 60 Hz / 1Ph |
| Noise | 45 dB |
| Weight | 2,752-lbs. (1,248.3 kg), N/A, 2,987-lbs. (1354.9 kg) |
| Dimensions | 219″ x 21″ x 42″ (5,563 mm x 533 mm x 1,067 mm), N/A, 206″ x 22″ x 40″ (5,232 mm x 559 mm x 1,016 mm) |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address. |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
