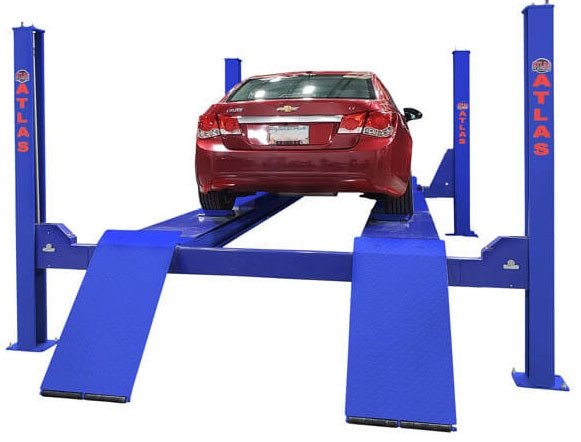

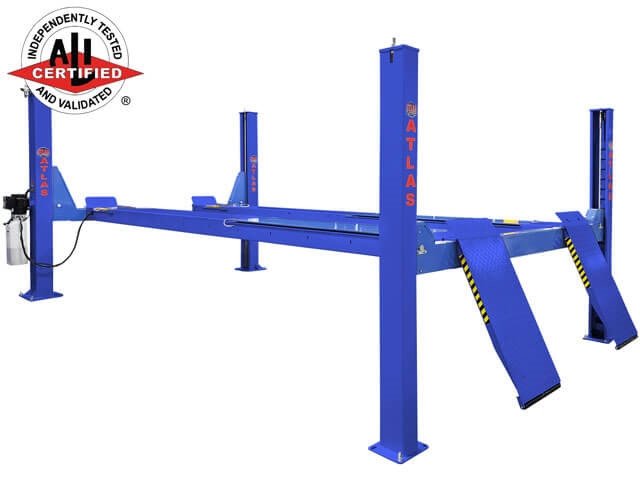

Atlas® Platinum PVL14OF-EXT ALI Certified Open Front 4 Post Alignment Lift 14,000 lbs
SKU: AP-PVL14OF-EXT
Selling price:$6,349.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 14000 lbs
- Overall width: 148 3/4" (12' 4 3/4")
- Power requirement: 220 volt single (1) phase. A 30 amp breaker is required
Product Decision Guide
Key facts for this configuration
- Capacity
- 14000 lbs
- Overall width
- 148 3/4" (12' 4 3/4")
- Power requirement
- 220 volt single (1) phase. A 30 amp breaker is required
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
Atlas® Platinum PVL14OF-EXT ALI Certified Open Front 4 Post Alignment Lift 14,000 lbs
Selection data for this Atlas Platinum alignment lift is grouped by identity, physical size, required utilities and configuration. The cataloged capacity is 14,000 lbs. Cross-check the chosen model against the intended vehicle and work area.
Key product facts
- Manufacturer: Atlas Platinum
- Model: AP-PVL14OF-EXT
- SKU: AP-PVL14OF-EXT
- Lift format: alignment lift
- Listed capacity: 14,000 lbs
- Maximum lifting height: 73 1/4" (6' 1 1/4")
- Manufacturer-listed certification status: Atlas Platinum product data lists this model as ALI certified; verify the current certification record before publication.
Design and functional details
- Design detail: open front design: no front crossbeam.

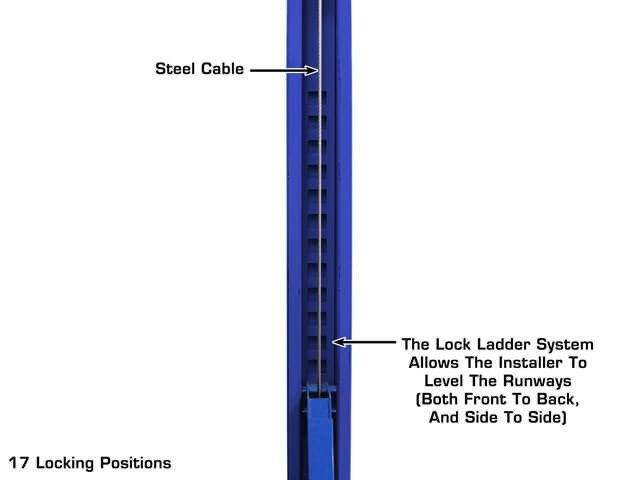

- Safety design: heavy-duty commercial construction: engineered with materials, an adjustable lock ladder system, and double lock safety system.
- Capacity detail: 14,000 lb. capacity.
- Manufacturer-listed certification: ALI certified.
- Design detail: heavy duty, commercial grade.

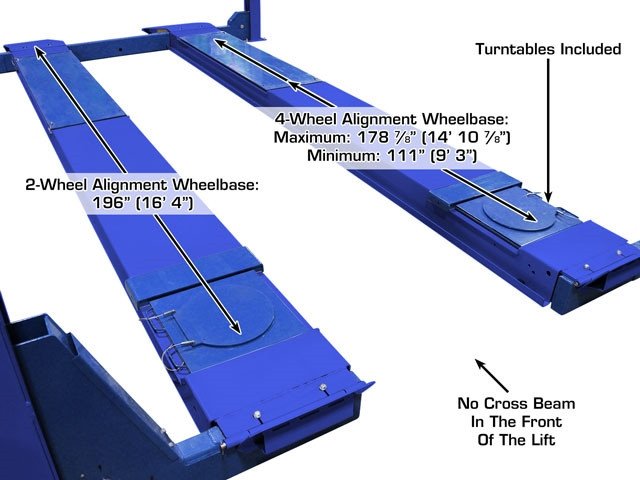

- Design detail: alignment lift, includes built in slip plates & turntables.
- Design detail: open front design.
- Platform design: extra long runways.
Included equipment
- Turn plates and integrated slip plates for precision wheel alignment

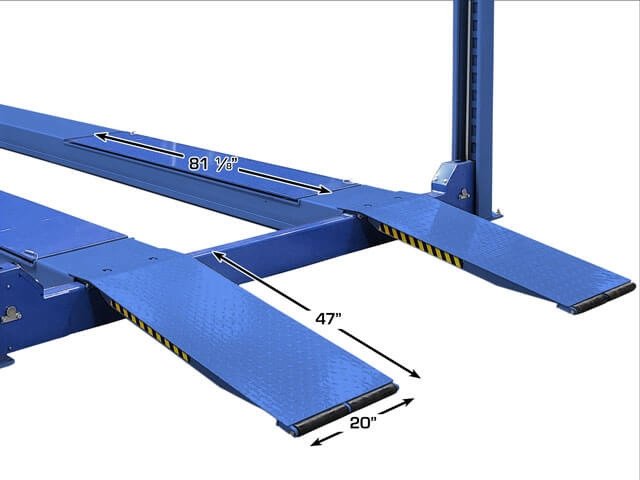

- Steel approach ramps
- Complete mounting hardware
- Turn Plates & Integrated Slip Plates
- Mounting Hardware
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | Yes |
| Weight Capacity | 14000 lbs |
| Capacity | 14,000 lbs |

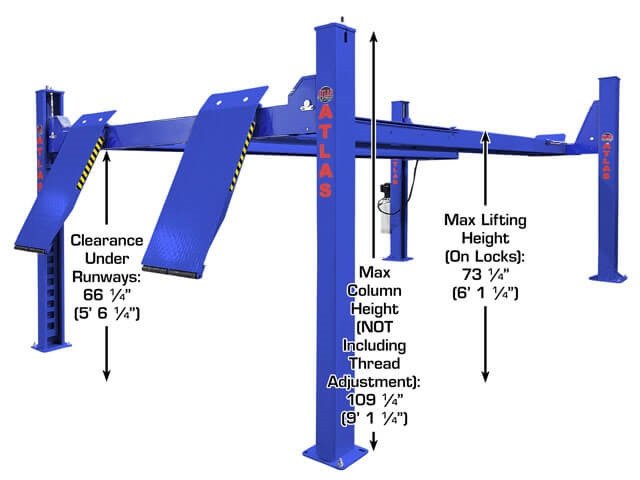

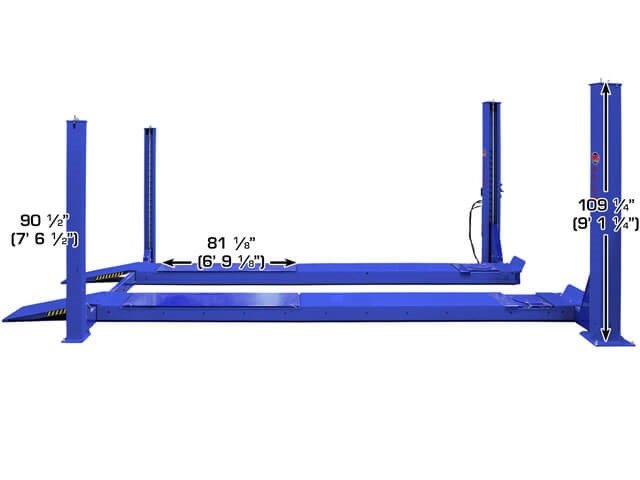

| Height of Columns | Rear: 92 1/2" (7' 8 1/2") Front: 109 1/4" (9' 1 1/4") |
| Lifting Height | 73 1/4" (6' 1 1/4") |

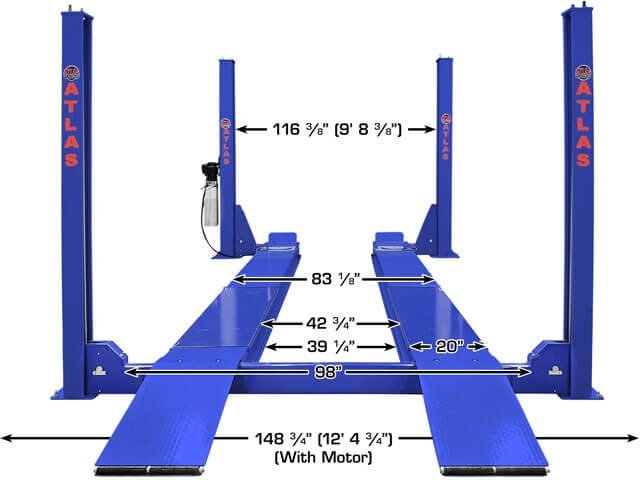

| Overall Width w/ Motor | 148 3/4" (12' 4 3/4") |
| Overall Width w/o Motor | 140 1/8" (11' 8 1/8") |
| Overall Length w/Approach Ramps | 272 1/8" (22' 8 1/8") |
| Overall Length w/o Approach Ramps | 234 1/4" (19' 6 1/4") |
| Length Between Columns | 207" (17' 3") |
| Runway Length | 223 1/2" (18' 7 1/2") |
| Runway Width | 20" |
| Thickness Of Runway | 7" |
| Width Between Runways | 42 3/4" (w/ Rail 39 1/4") |
| Outside Runway to Outside Runway | 83 1/8" (6' 11 1/8") |
| Clearance Under Runways | 66 1/4" (5' 6 1/4") |
| Clearance Between Columns | 116 3/8" (9' 8 3/8") |
| Maximum Wheel Base | 203" (16' 11") |
| Drive Thru | 94 1/2" (7' 10 1/2") |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT Included) |

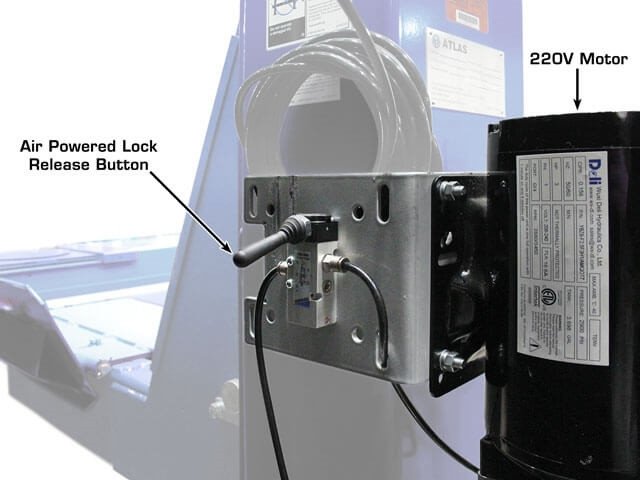

| Air Requirement | 85-115 PSI (External Air Supply Required) |

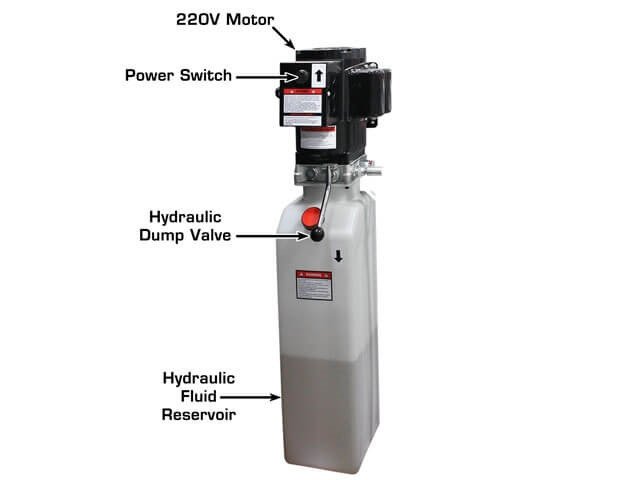

| Power Unit | 220 volt single (1) phase. A 30 amp breaker is required |

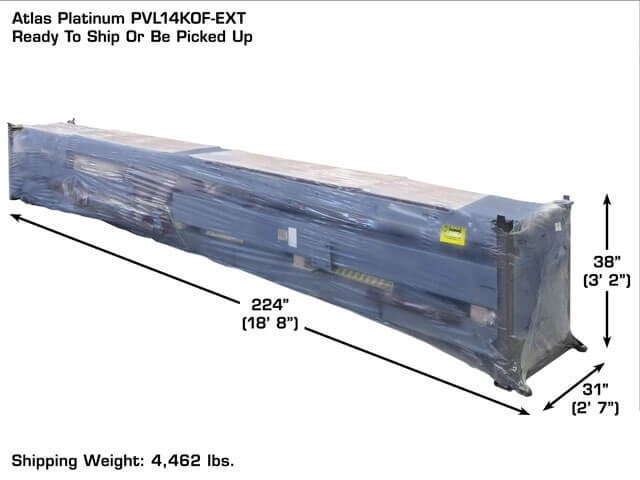

| Weight | 4,462 lbs |
Manufacturer warranty reference — verification required
Warranty information recorded for Atlas Platinum lists: structural components: 5 years; limited manufacturer coverage: 2 years. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Atlas Platinum |
|---|---|
| Weight Capacity | 14000 lbs |
| call_for_better_price | false |
| flatrate | 1500 |
| Capacity | 14,000 lbs |
| Height of Columns | Rear: 92 1/2″ (7′ 8 1/2″) Front: 109 1/4″ (9′ 1 1/4″) |
| Lifting Height | 73 1/4″ (6′ 1 1/4″) |
| Overall Width w/ Motor | 148 3/4″ (12′ 4 3/4″) |
| Overall Width w/o Motor | 140 1/8″ (11′ 8 1/8″) |
| Overall Length w/Approach Ramps | 272 1/8″ (22′ 8 1/8″) |
| Overall Length w/o Approach Ramps | 234 1/4″ (19′ 6 1/4″) |
| Length Between Columns | 207″ (17′ 3″) |
| Runway Length | 223 1/2″ (18′ 7 1/2″) |
| Runway Width | 20″ |
| Thickness Of Runway | 7″ |
| Width Between Runways | 42 3/4″ (w/ Rail 39 1/4″) |
| Outside Runway to Outside Runway | 83 1/8″ (6′ 11 1/8″) |
| Clearance Under Runways | 66 1/4″ (5′ 6 1/4″) |
| Clearance Between Columns | 116 3/8″ (9′ 8 3/8″) |
| Maximum Wheel Base | 203″ (16′ 11″) |
| Drive Thru | 94 1/2″ (7′ 10 1/2″) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT Included) |
| Air Requirement | 85-115 PSI (External Air Supply Required) |
| Power Unit | 220 volt single (1) phase. A 30 amp breaker is required |
| Weight | 4,462 lbs |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
| Forklift? | Choose an option, Yes, I have a forklift at the delivery location., No, I do not have a forklift. Please call me with delivery options. |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
