Challenger 44030AR HD 4-Post Hydraulic Alignment Lift 30,000 – New Black Color
SKU: 44030AR
Selling price:$33,099.75
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 30000 lbs
- Overall width: 12’ 5½”
- Maximum rise: 68"
Product Decision Guide
Key facts for this configuration
- Capacity
- 30000 lbs
- Overall width
- 12’ 5½”
- Maximum rise
- 68"
- Power requirement
- 3HP
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
Challenger 44030AR HD 4-Post Hydraulic Alignment Lift 30,000 – New Black Color
Challenger 44030AR HD 4-Post Hydraulic Alignment Lift 30,000 – New Black Color is cataloged by Challenger as an alignment lift with 30,000 lbs listed capacity. The sections below separate physical measurements, required utilities and configuration data for equipment selection.
Key product facts
- Manufacturer: Challenger
- Model: 44030 | 44030AR | 44030E | 44030EAR | 44030X | 44030XAR
- SKU: 44030AR
- Lift format: alignment lift
- Listed capacity: 30,000 lbs
- Power or motor requirement: 3HP
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Capacity detail: 30,000 lb. lifting capacity.
- Design detail: alignment-ready design with turning radius gauge cutouts and flush mount capability.

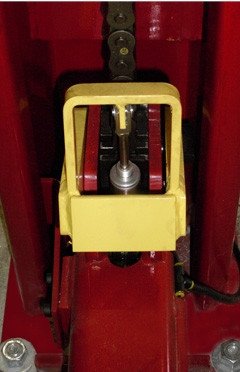

- Safety design: single point air actuated lock release disengages all column locks simultaneously.

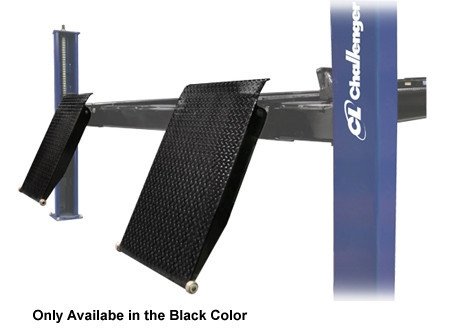

- Platform design: diamond plate anti-skid runways and ramps.
- Platform design: built-in runway rail system.

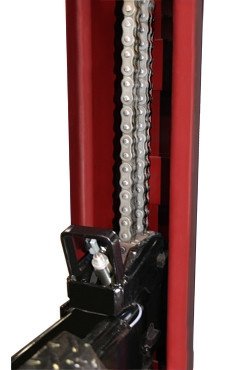

- Construction: heavy duty, high tensile strength leaf chain with sealed roller bearings.
- Construction: heavy duty cylinder.
- Safety design: single point air actuated lock release system.
Available configurations and accessories
- Optional Voltage: Optional 3 Phase Voltage Instead of 1Ph
- Model Number: 44030; 44030AR; 44030E; 44030EAR; 44030X; 44030XAR
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | No |
| Weight Capacity | 30000 lbs |
| Model Number | 44030 | 44030AR | 44030E | 44030EAR | 44030X | 44030XAR |
| Lift Capacity | 30,000 lbs. |

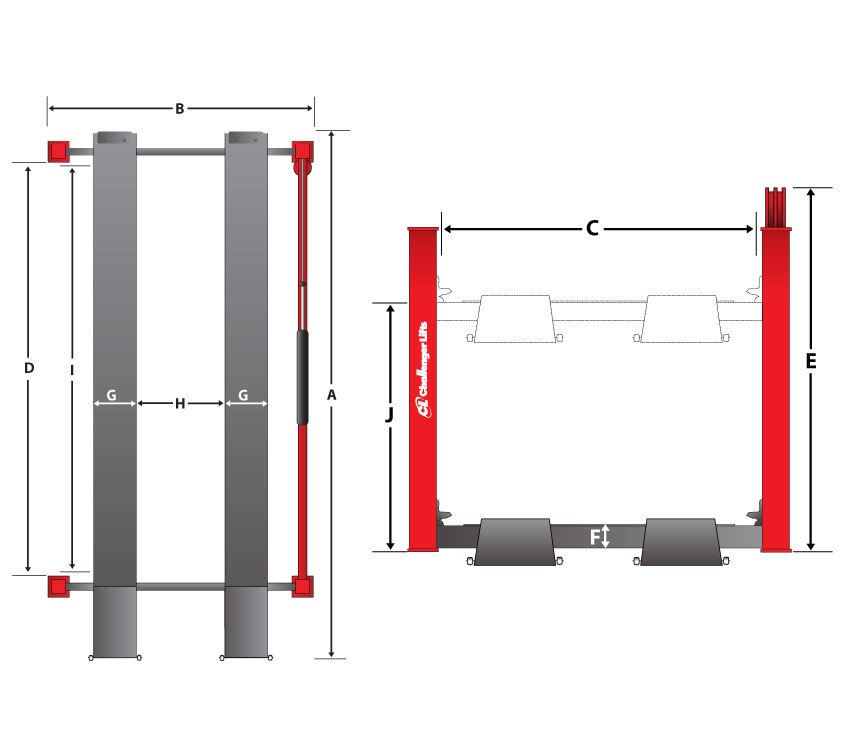

| A Overall Length | 24' 7-1/2" | 29' 7-1/2" | 34' 7-1/2" |
| B Overall Width | 12’ 5½” |
| C Inside Columns | 132-1/2" |
| D Between Columns | 233-3/4" | 293-3/4" | 353-3/4" |
| E Overall Height | 92" |
| F Height of Runways | 9" |
| G Width of Runways | 24" |
| H Width Between Runways | 54" – 75" |
| I Maximum Wheelbase | 230" | 290" | 350" |
| J Rise Height | 68" |
| Max. 2 Wheel Align | N/A | 206" | N/A | 266" | N/A | 326" |
| Motor | 3HP |
| Voltage | 208v – 230v |
| Speed of Rise | 105 seconds |
| Amps | 30 |
| Shipping Weight | 5250 lbs (2381 kg) | 5450 lbs (2472 kg) | 5750 lbs (2608 kg) | 5950 lbs (2699 kg) | 6250 lbs (2835 kg) | 6450 lbs (2926 kg) |
| Optional Voltage | Optional 3 Phase Voltage Instead of 1Ph, No |
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Challenger |
|---|---|
| Weight Capacity | 30000 lbs |
| Rebate | This Item has a 75-Business Day Lead-time |
| Model Number | 44030, 44030AR, 44030E, 44030EAR, 44030X, 44030XAR |
| Lift Capacity | 30,000 lbs. |
| A Overall Length | 24′ 7-1/2″, 29′ 7-1/2″, 34′ 7-1/2″ |
| B Overall Width | 12’ 5½” |
| C Inside Columns | 132-1/2″ |
| D Between Columns | 233-3/4″, 293-3/4″, 353-3/4″ |
| E Overall Height | 92″ |
| F Height of Runways | 9″ |
| G Width of Runways | 24″ |
| H Width Between Runways | 54″ – 75″ |
| I Maximum Wheelbase | 230″, 290″, 350″ |
| J Rise Height | 68″ |
| Max. 2 Wheel Align | N/A, 206″, N/A, 266″, N/A, 326″ |
| Motor | 3HP |
| Voltage | 208v – 230v |
| Speed of Rise | 105 seconds |
| Amps | 30 |
| Shipping Weight | 5250 lbs (2381 kg), 5450 lbs (2472 kg), 5750 lbs (2608 kg), 5950 lbs (2699 kg), 6250 lbs (2835 kg), 6450 lbs (2926 kg) |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address. |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
