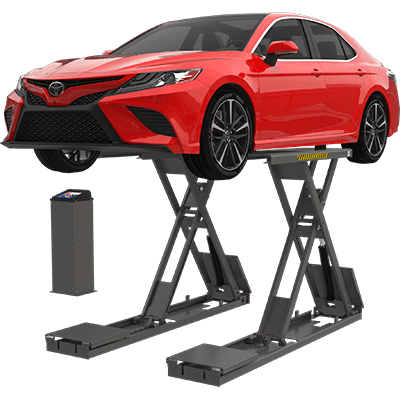

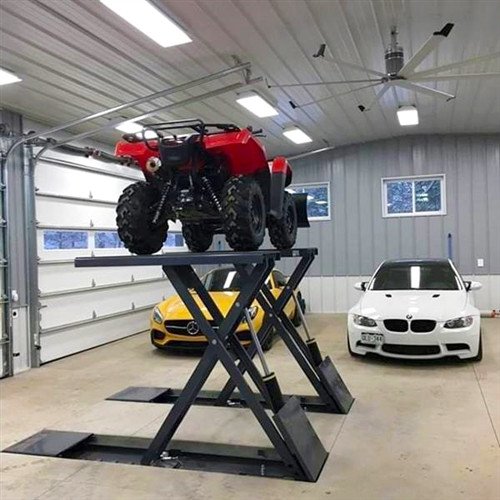

BendPak SP-7XEF Full-Rise Flush Mount Scissor Lift 7,000 lb.
SKU: 5175425
Selling price:$5,147.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 7000 lbs
- Overall width: 87.5" (2,222 mm)
- Power requirement: 208-240 VAC / 50-60 Hz / 1Ph
Product Decision Guide
Key facts for this configuration
- Capacity
- 7000 lbs
- Overall width
- 87.5" (2,222 mm)
- Power requirement
- 208-240 VAC / 50-60 Hz / 1Ph
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
BendPak SP-7XEF Full-Rise Flush Mount Scissor Lift 7,000 lb.
The recorded specifications describe BendPak SP-7XEF Full-Rise Flush Mount Scissor Lift 7,000 lb. as a scissor lift rated at 7,000 lb. This summary separates fixed product data from model-dependent options and supplied components.
Key product facts
- Manufacturer: BendPak
- Model: 5175425
- SKU: 5175425
- Lift format: scissor lift
- Listed capacity: 7,000 lb
- Power or motor requirement: 208-240 VAC / 50-60 Hz / 1Ph
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Capacity detail: 7,000 lb. lifting capacity.
- Design detail: full-rise capability.
- Safety design: eight precision locking heights.
- Design detail: open-center, no cross member.
- Construction: dual hydraulic cylinders.
- Safety design: pneumatic safety locks.
- Design detail: quick lifting time.
- Design detail: flush-mount.
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | No |
| Weight Capacity | 7000 lbs |
| Lifting Capacity | 7,000 lbs. (3,175 kg) |
| Overall Length | 105.5" (2,692 mm) |
| Overall Width – Max | 87.5" (2,222 mm) |
| Overall Width – Min | 81.5" (2,072 mm) |
| Single Platform Length | 62.5" (1,590 mm) |
| Single Platform Width | 22" (554 mm) |
| Max Height Raised | 70.5" (1,791 mm) |
| Lowered Lift Height | Flush with Concrete |
| Lifting Time | 45 sec |
| Fully Lowered | 6.5" (165 mm) |
| 1st Lock Position | 24.75" (629 mm) |
| 2nd Lock Position | 37.5" (953 mm) |
| 3rd Lock Position | 46" (1,168 mm) |
| 4th Lock Position | 52.75" (1,340 mm) |
| 5th Lock Position | 58" (1,473 mm) |
| 6th Lock Position | 62.75" (1,594 mm) |
| 7th Lock Position | 66.5" (1,689 mm) |
| 8th Lock Position | 70" (1,778 mm) |
| Full Rise | 70.5" (1,791 mm) |
| Motor | 208-240 VAC / 50-60 Hz / 1Ph |
| Shipping Weight | 2,218-lbs. (1,006 kg) |
| Shipping Dimensions | 105" x 27" x 45" (2,667 mm x 685 mm x 1,143 mm) |
Manufacturer warranty reference — verification required
Warranty information recorded for BendPak lists: structural components: 2 years; hydraulic cylinder: 1 year; limited manufacturer coverage: 1 year; labor: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | BendPak |
|---|---|
| Item | Product |
| Weight Capacity | 7000 lbs |
| Lifting Capacity | 7,000 lbs. (3,175 kg) |
| Overall Length | 105.5″ (2,692 mm) |
| Overall Width - Max | 87.5″ (2,222 mm) |
| Overall Width - Min | 81.5″ (2,072 mm) |
| Single Platform Length | 62.5″ (1,590 mm) |
| Single Platform Width | 22″ (554 mm) |
| Max Height Raised | 70.5″ (1,791 mm) |
| Lowered Lift Height | Flush with Concrete |
| Lifting Time | 45 sec |
| Fully Lowered | 6.5″ (165 mm) |
| 1st Lock Position | 24.75″ (629 mm) |
| 2nd Lock Position | 37.5″ (953 mm) |
| 3rd Lock Position | 46″ (1,168 mm) |
| 4th Lock Position | 52.75″ (1,340 mm) |
| 5th Lock Position | 58″ (1,473 mm) |
| 6th Lock Position | 62.75″ (1,594 mm) |
| 7th Lock Position | 66.5″ (1,689 mm) |
| 8th Lock Position | 70″ (1,778 mm) |
| Full Rise | 70.5″ (1,791 mm) |
| Motor | 208-240 VAC / 50-60 Hz / 1Ph |
| Shipping Weight | 2,218-lbs. (1,006 kg) |
| Shipping Dimensions | 105″ x 27″ x 45″ (2,667 mm x 685 mm x 1,143 mm) |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address., Local Freight Terminal Pick-Up “Preferred” |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
