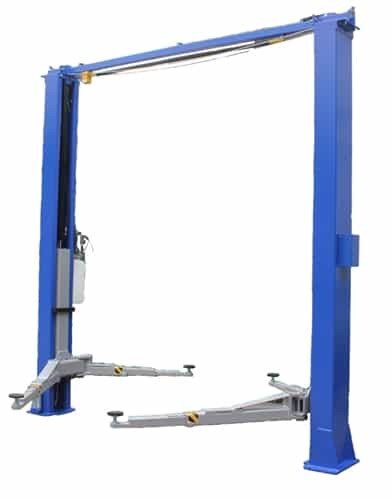

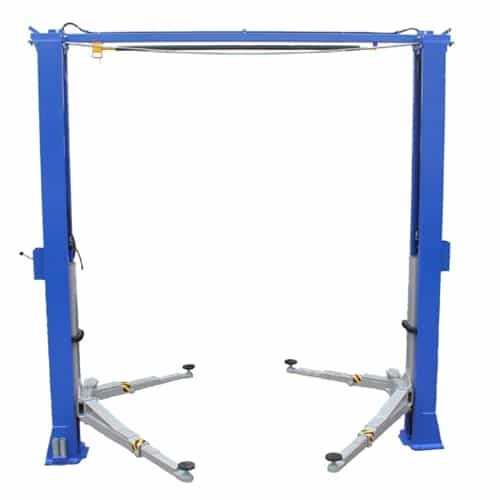

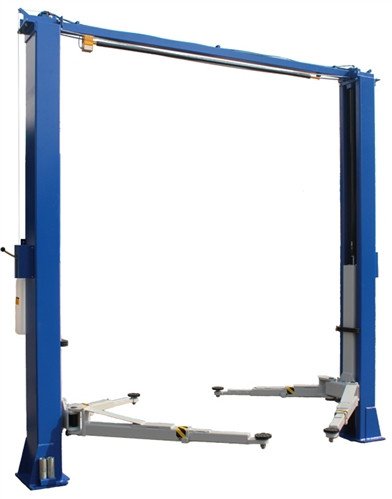

Auto Lift AL2-11KC-DX 11K lb Clear Floor Direct Drive Two Post Bi-Symmetric™ Car Lift
SKU: AL2-11KC-DX
Selling price:$2,135.00
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 11000 lbs
- Configuration: Hybrid
- Overall width: 145-1/2"
Product Decision Guide
Key facts for this configuration
- Capacity
- 11000 lbs
- Configuration
- Hybrid
- Overall width
- 145-1/2"
- Maximum rise
- 71"
- Power requirement
- 220V - 20 AMP - 1 PH
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
Auto Lift AL2-11KC-DX 11K lb Clear Floor Direct Drive Two Post Bi-Symmetric™ Car Lift
Selection data for this Auto Lift two-post vehicle lift is grouped by identity, physical size, required utilities and configuration. The cataloged capacity is 11,000 lbs. Cross-check the chosen model against the intended vehicle and work area.
Key product facts
- Manufacturer: Auto Lift
- Model: AL2-11KC-DX
- SKU: AL2-11KC-DX
- Lift format: two-post vehicle lift
- Listed capacity: 11,000 lbs
- Configuration: Hybrid
- Power or motor requirement: 220V – 20 AMP – 1 PH
- Maximum lifting height: 71"
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details

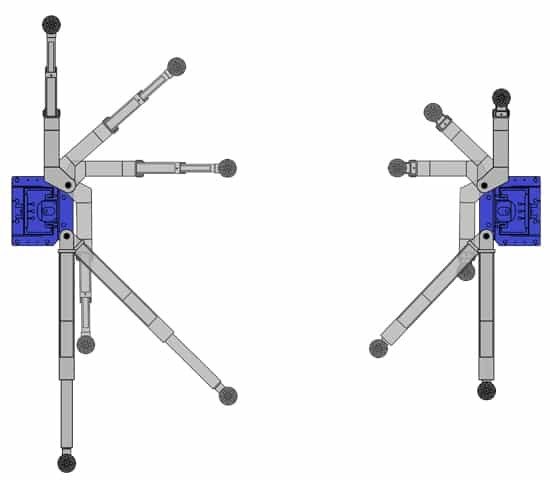

- Lifting interface: bi-symmetric™ versatility: easily switch between asymmetric and symmetric arm configurations.

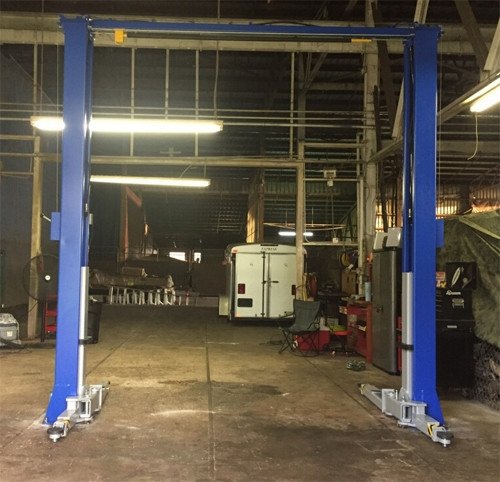

- Design detail: clear floor design.
- Compatibility: direct drive power: reliable, low-maintenance drive system lifts vehicles to full height in just 50 seconds.

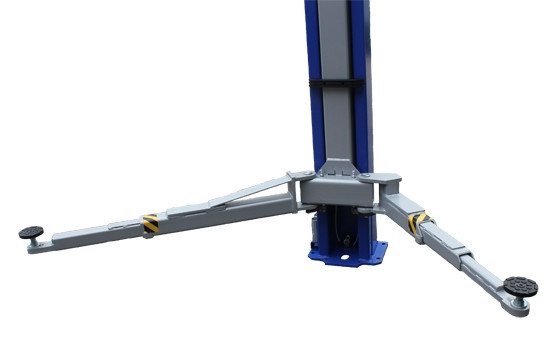

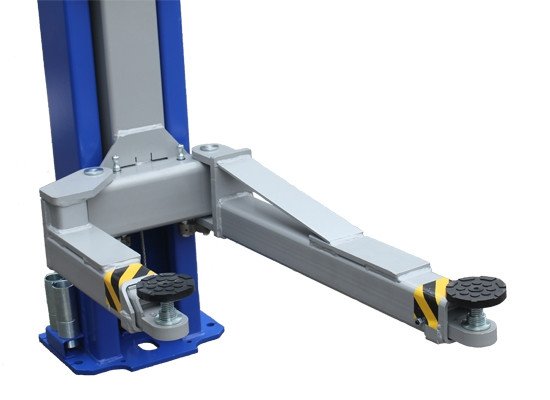

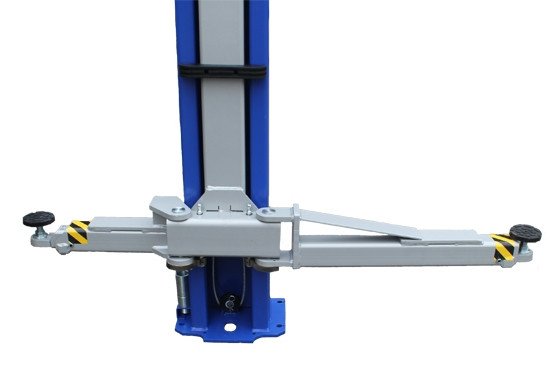

- Lifting interface: extended arm reach: 3-stage telescoping front arms extend from 23" to 45", providing reach.

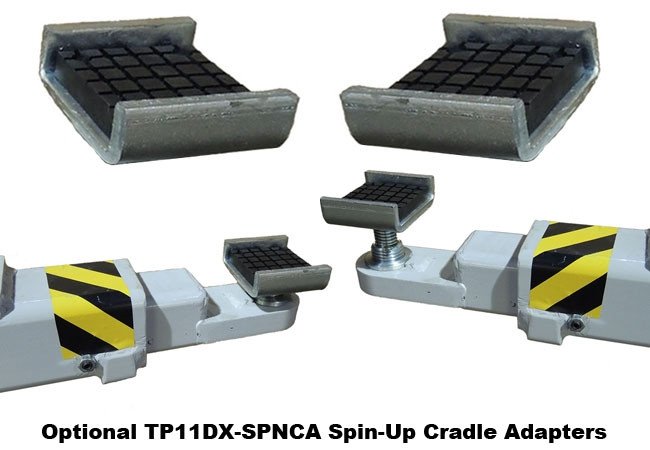

- Lifting interface: complete adapter package: includes spin-up pads plus free stackable truck adapters (2" and 4").
- Capacity detail: 11,000 lb lifting capacity.
- Lifting interface: asymmetric/symmetric arm configuration.
- Design detail: direct drive.
Available configurations and accessories
- Optional 110V Voltage Available: 110 Voltage Power Unit
Technical specifications
| Specification | Recorded value |
|---|---|
| Symmetric/Asymmetric | Hybrid |
| ALI | No |
| Weight Capacity | 11000 lbs |
| Capacity | 11,000 lbs. |
| Overall Height | 144" |
| Width Overall w/Power Unit | 145-1/2" |
| Max Lift Height | 71" |
| Min Pad Height | 4" |
| Width Between Columns | 116" |
| Drive thru Clearance | 104" |
| Lifting speed | 50 sec |
| Asymmetric / Symmetric | Both |
| Front Arm Reach – min/max | 23" – 45" |
| Rear Arm Reach – min/max | 41" – 45" |
| Clear Floor / Floor Plate | Clear Floor |
| Column Thickness | gauge # 7 or 3/16" (4.76 mm) |
| Power | 220V – 20 AMP – 1 PH |
| Ship Weight | 1,705 lbs. |
| Optional 110V Voltage Available | 110 Voltage Power Unit, No |
Manufacturer warranty reference — verification required
Warranty information recorded for Auto Lift lists: structural components: 5 years; limited manufacturer coverage: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Auto Lift |
|---|---|
| Symmetric/Asymmetric | Hybrid |
| Weight Capacity | 11000 lbs |
| Rebate | Sale Price Valid thru July 31st or While Supplies Last |
| lift_type | 2-post |
| lift_height | 144 |
| lift_width | 145.5 |
| flatrate | 450 |
| Capacity | 11,000 lbs. |
| Overall Height | 144″ |
| Width Overall w/Power Unit | 145-1/2″ |
| Max Lift Height | 71″ |
| Min Pad Height | 4″ |
| Width Between Columns | 116″ |
| Drive thru Clearance | 104″ |
| Lifting speed | 50 sec |
| Asymmetric / Symmetric | Both |
| Front Arm Reach - min/max | 23″ – 45″ |
| Rear Arm Reach - min/max | 41″ – 45″ |
| Clear Floor / Floor Plate | Clear Floor |
| Column Thickness | gauge # 7 or 3/16″ (4.76 mm) |
| Power | 220V – 20 AMP – 1 PH |
| Ship Weight | 1,705 lbs. |
| Forklift? | Choose an option, Yes, I have a forklift at the delivery location., No, I do not have a forklift. Please call me with delivery options. |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
