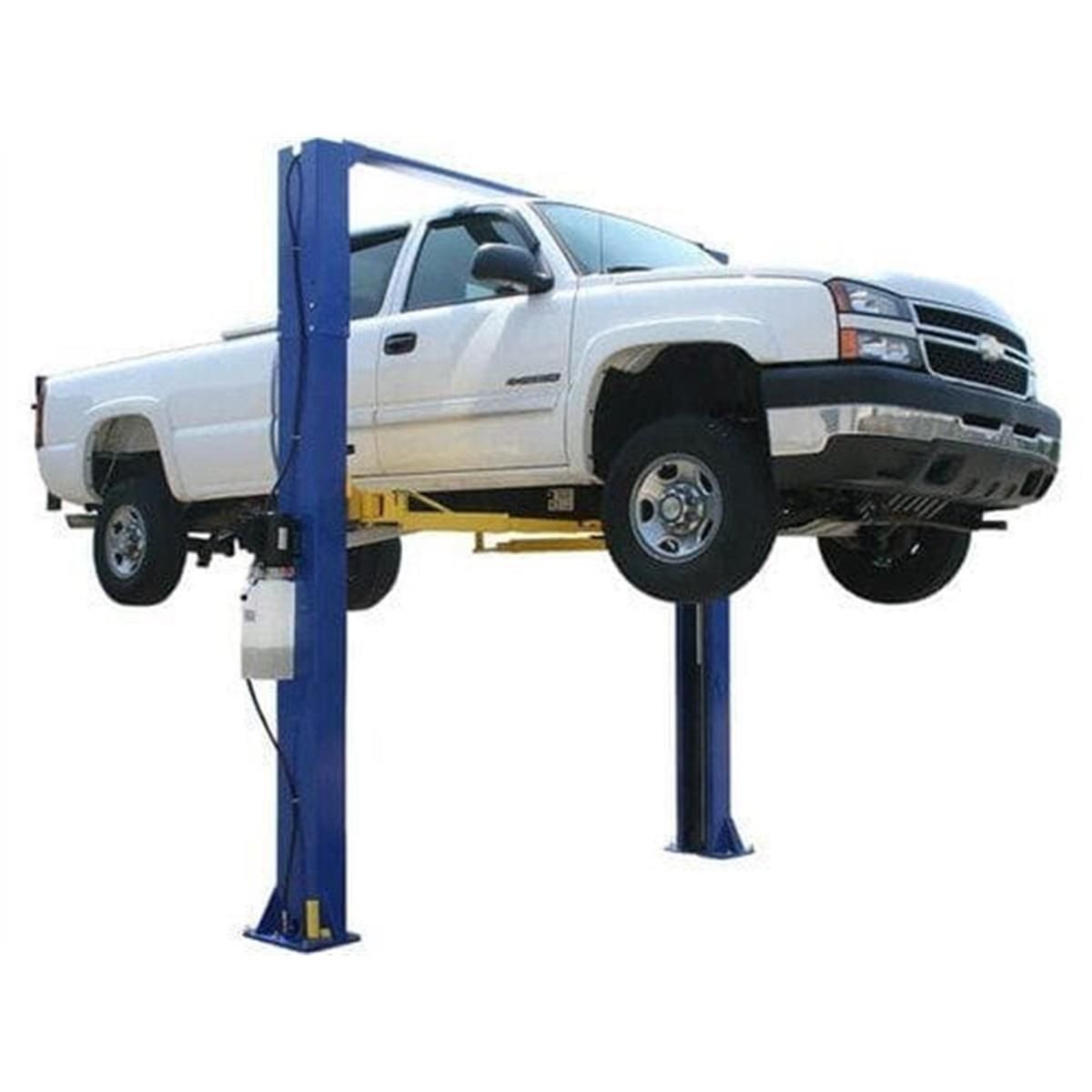

Atlas® 9KOH Symmetric/Asymmetric 2 Post Lift 9,000 lbs
SKU: XH-9KOHX
Selling price:$1,299.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 9000 lbs
- Configuration: Hybrid
- Overall width: 141" (11' 9")
Product Decision Guide
Key facts for this configuration
- Capacity
- 9000 lbs
- Configuration
- Hybrid
- Overall width
- 141" (11' 9")
- Power requirement
- 141" (11' 9")
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
Atlas® 9KOH Symmetric/Asymmetric 2 Post Lift 9,000 lbs
Atlas® 9KOH Symmetric/Asymmetric 2 Post Lift 9,000 lbs is cataloged by Atlas Automotive Equipment as a two-post vehicle lift with 9,000 lbs listed capacity. The sections below separate physical measurements, required utilities and configuration data for equipment selection.
Key product facts
- Manufacturer: Atlas Automotive Equipment
- Model: XH-9KOHX
- SKU: XH-9KOHX
- Lift format: two-post vehicle lift
- Listed capacity: 9,000 lbs
- Configuration: Hybrid
- Power or motor requirement: 220V single (1) phase / 30 amp breaker is required
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Capacity detail: 9,000 lb lifting capacity.
- Design detail: adjustable height options: 11' 6" or 11' 10" overall height.

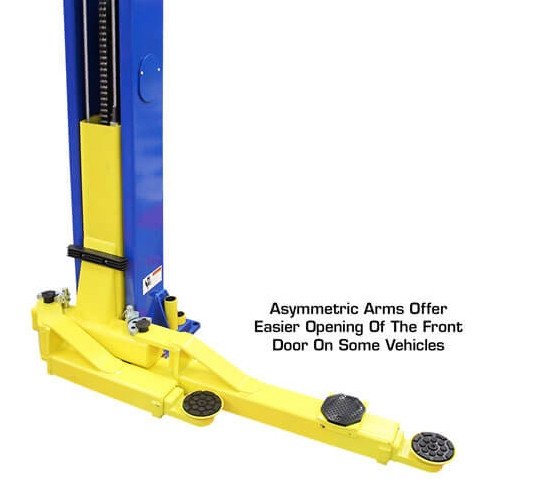

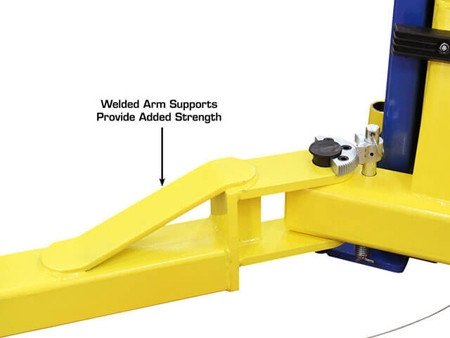

- Lifting interface: asymmetric & symmetric arm configurations.

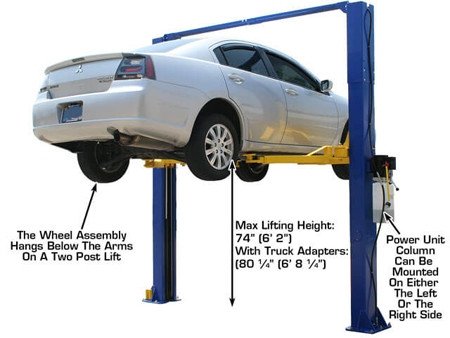

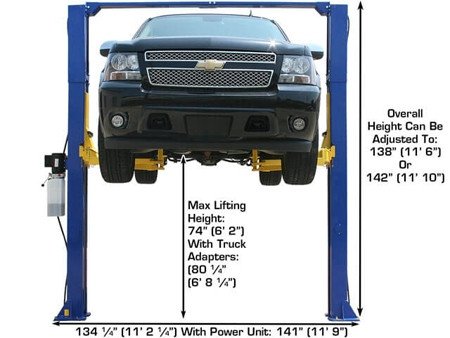

- Lifting interface: maximum lift height of 81 inches with adapters (74.5" without).
- Design detail: overhead, open-floor design.

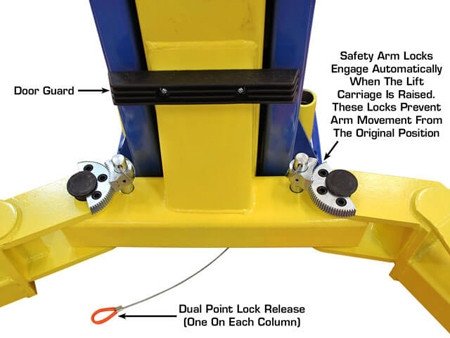

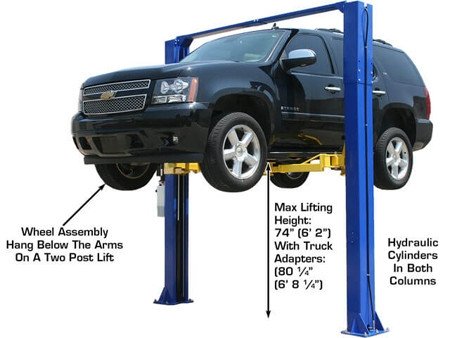

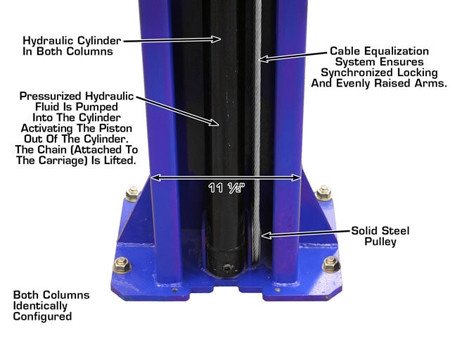

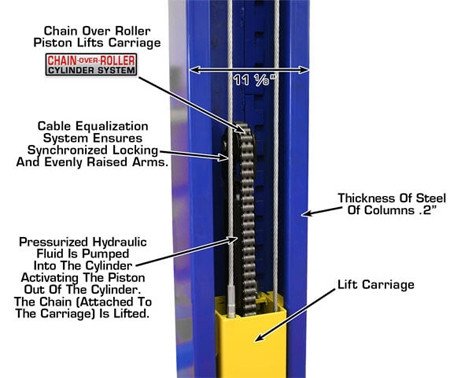

- Safety design: dual hydraulic chain-drive cylinders with automatic secondary lock system.

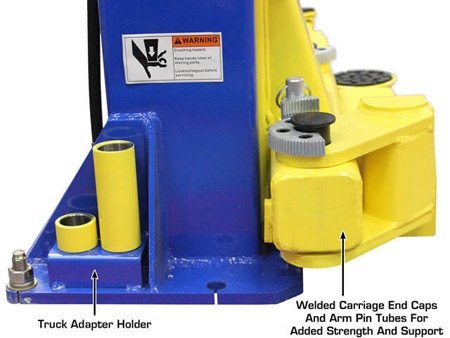

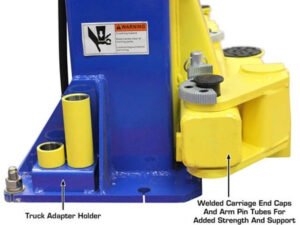

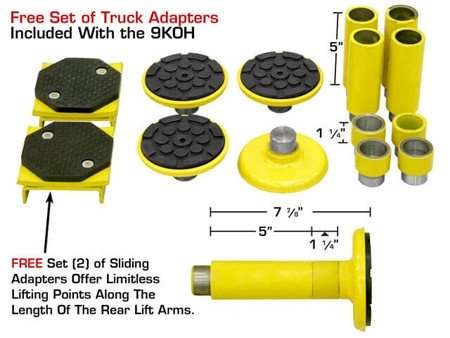

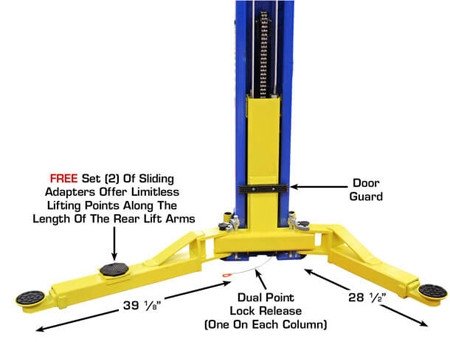

- Lifting interface: free truck adapter set and sliding adapters.
- Capacity detail: 9,000 LB. capacity.
Included equipment
- 8 Piece Truck Adapter Set

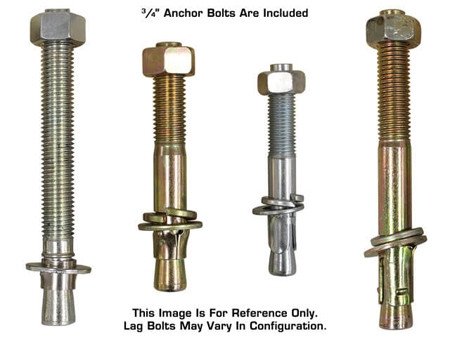

- Mounting Hardware
Technical specifications
| Specification | Recorded value |
|---|---|
| Symmetric/Asymmetric | Hybrid |
| ALI | No |
| Weight Capacity | 9000 lbs |
| Capacity | 9,000 lbs |
| Lifting Time | N/A |

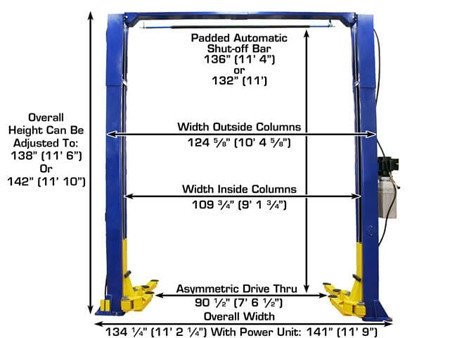

| Overall Height | 138" (11' 6") or 142" (11' 10") |
| Overall Width w/Power Unit | 141" (11' 9") |
| Overall Width w/o Power Unit | 134 ¼" (11' 2 ¼") |
| Outside Column To Outside Column | 124 7/8" (10' 4 7/8") |
| Maximum Lift Height w/o Adapters | 74 1/2" |
| Maximum Lift Height w/Adapters | 81" |
| Padded Bar Height | 136" (11' 4") or 132" (11') |
| Minimum Arm Height | 4" |

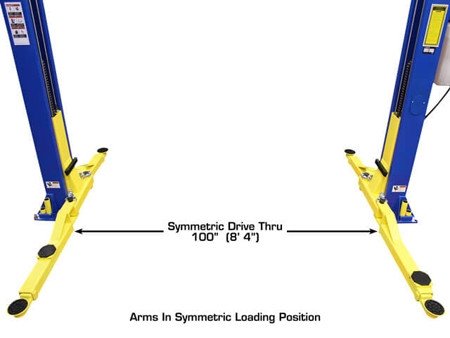

| Drive Thru Arm Configuration | 100" (8' 4") Symmetric / 90 ½" (7' 6 ½") Asymmetric |
| Inside Column | 109 ¾" (9' 1 ¾") |
| Base Of Lift | 4 1/4" x 18" |
| Column Size | 7-1/4" x 11" |
| Column Thickness of Steel | 5mm |

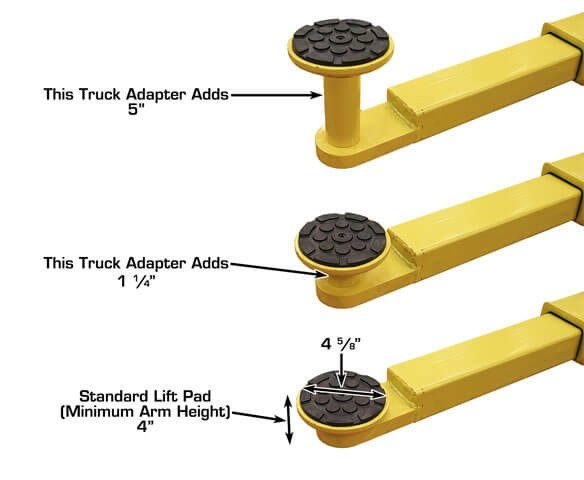

| Adapter Heights/ Peg Size | 4 ea.- 1.5" & 5" / 1.5" (Arm Hole) |

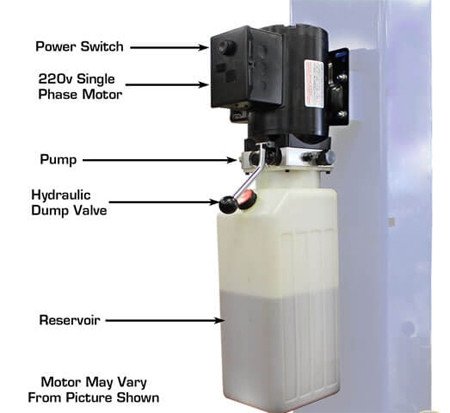

| Motor/Electrical Requirement | 220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,450 LB. |
Manufacturer warranty reference — verification required
Warranty information recorded for Atlas Automotive Equipment lists: structural components: 2 years; limited manufacturer coverage: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Atlas Automotive Equipment |
|---|---|
| Symmetric/Asymmetric | Hybrid |
| Weight Capacity | 9000 lbs |
| lift_type | 2-post |
| lift_height | 138 |
| lift_width | 141 |
| call_for_better_price | false |
| flatrate | 300 |
| Capacity | 9,000 lbs |
| Lifting Time | N/A |
| Overall Height | 138″ (11′ 6″) or 142″ (11′ 10″) |
| Overall Width w/Power Unit | 141″ (11′ 9″) |
| Overall Width w/o Power Unit | 134 ¼” (11′ 2 ¼”) |
| Outside Column To Outside Column | 124 7/8″ (10′ 4 7/8″) |
| Maximum Lift Height w/o Adapters | 74 1/2″ |
| Maximum Lift Height w/Adapters | 81″ |
| Padded Bar Height | 136″ (11′ 4″) or 132″ (11′) |
| Minimum Arm Height | 4″ |
| Drive Thru Arm Configuration | 100″ (8′ 4″) Symmetric / 90 ½” (7′ 6 ½”) Asymmetric |
| Inside Column | 109 ¾” (9′ 1 ¾”) |
| Base Of Lift | 4 1/4″ x 18″ |
| Column Size | 7-1/4″ x 11″ |
| Column Thickness of Steel | 5mm |
| Adapter Heights/ Peg Size | 4 ea.- 1.5″ & 5″ / 1.5″ (Arm Hole) |
| Motor/Electrical Requirement | 220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,450 LB. |
| Forklift? | Choose an option, Yes, I have a forklift at the delivery location., No, I do not have a forklift. Please call me with delivery options. |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
