Atlas® 9KBP Floor Base-Plate 2 Post Lift 9,000 lbs
SKU: XH-9KBPX
Selling price:$1,249.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 9000 lbs
- Configuration: Symmetric
- Overall width: 142" (11' 10")
Product Decision Guide
Key facts for this configuration
- Capacity
- 9000 lbs
- Configuration
- Symmetric
- Overall width
- 142" (11' 10")
- Maximum rise
- 81"
- Power requirement
- 142" (11' 10")
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.

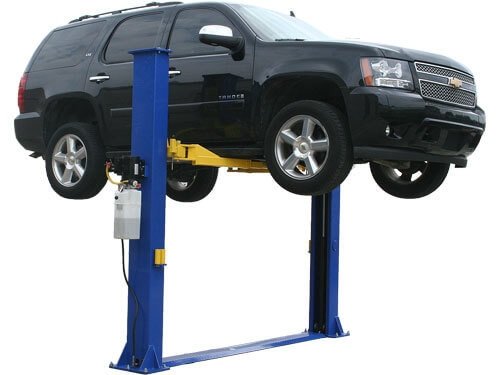

Atlas® 9KBP Floor Base-Plate 2 Post Lift 9,000 lbs
Selection data for this Atlas Automotive Equipment two-post vehicle lift is grouped by identity, physical size, required utilities and configuration. The cataloged capacity is 9,000 lbs. Cross-check the chosen model against the intended vehicle and work area.
Key product facts
- Manufacturer: Atlas Automotive Equipment
- Model: XH-9KBPX
- SKU: XH-9KBPX
- Lift format: two-post vehicle lift
- Listed capacity: 9,000 lbs
- Configuration: Symmetric
- Power or motor requirement: 3Hp 220V single (1) phase / 30 amp breaker is required
- Maximum lifting height: 81"
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Capacity detail: 9,000 lb. capacity.

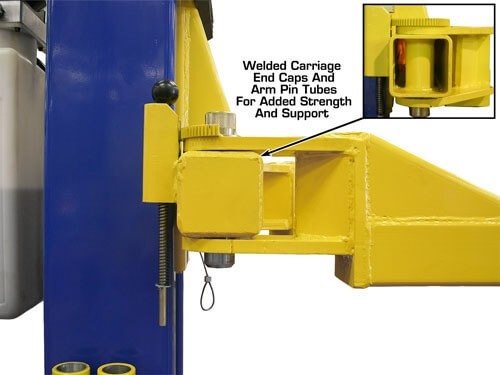

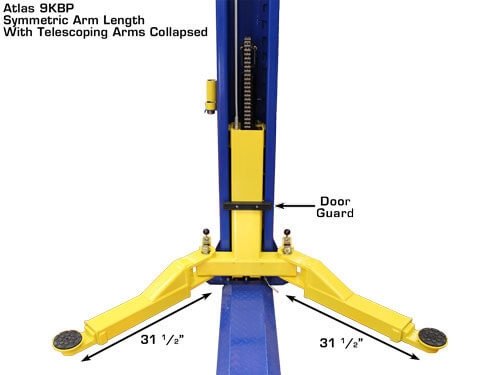

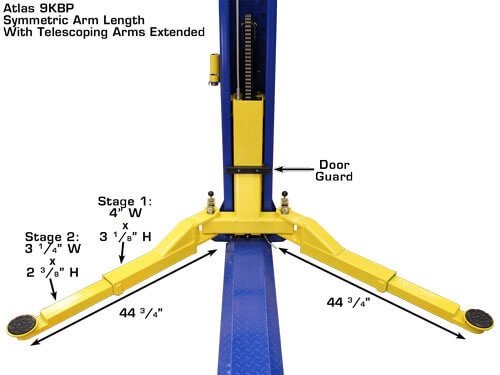

- Lifting interface: symmetric arms.
- Design detail: base plate design.

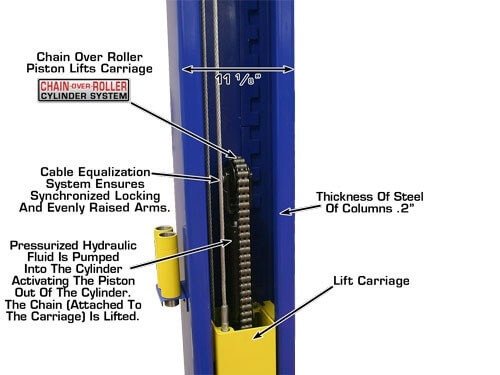

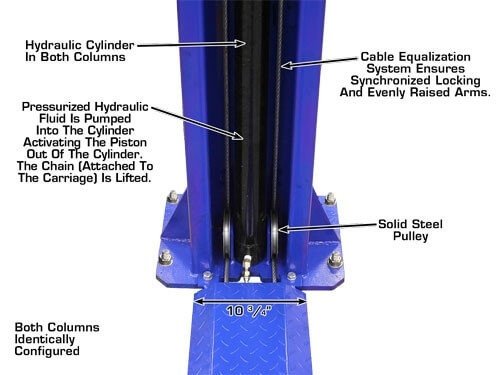

- Construction: dual hydraulic chain-drive cylinders.
- Safety design: secondary lock system (SLS).
- Lifting interface: free truck adapter set.

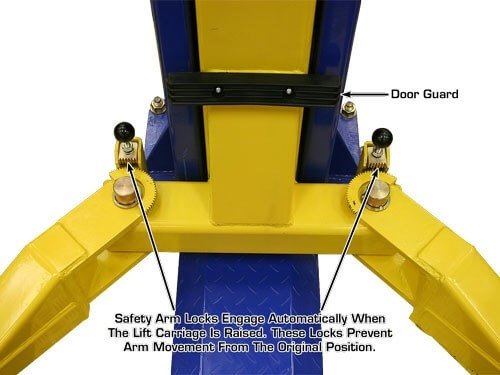

- Safety design: automatic arm restraints.

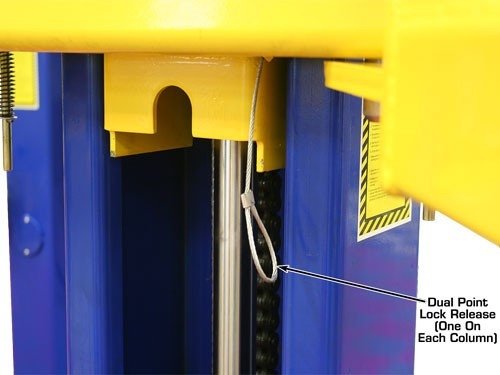

- Safety design: dual point lock release.
Included equipment

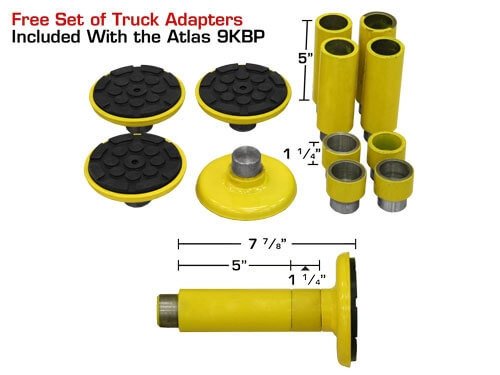

- 8 Piece Truck Adapter Set
Technical specifications
| Specification | Recorded value |
|---|---|
| Symmetric/Asymmetric | Symmetric |
| ALI | No |
| Weight Capacity | 9000 lbs |
| Capacity | 9,000 lbs |
| Lifting Time | N/A |

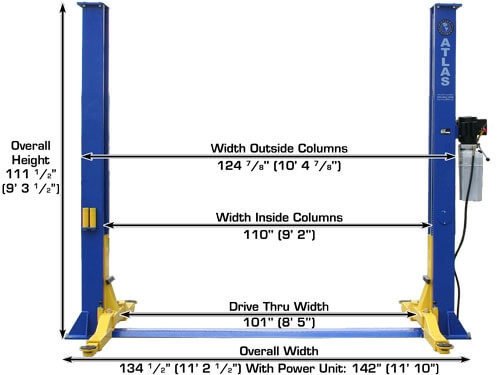

| Overall Height | 111 ½" (9' 3 ½") |
| Overall Width w/Power Unit | 142" (11' 10") |
| Overall Width w/o Power Unit | 134 ½" (11' 2 ½") |
| Outside Column To Outside Column | 124 7/8" (10' 4 7/8") |

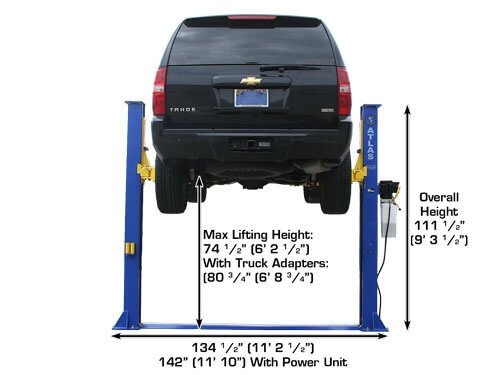

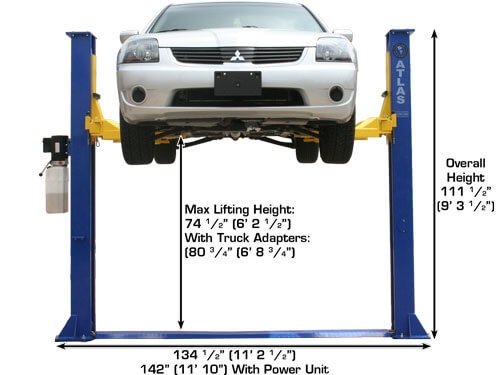

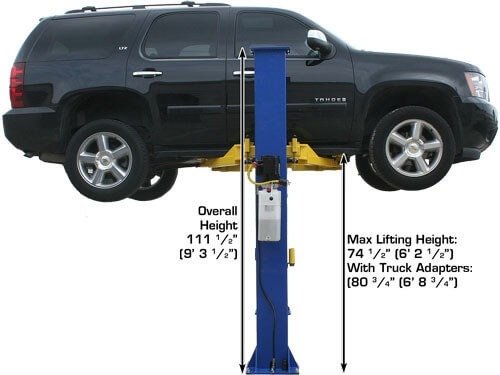

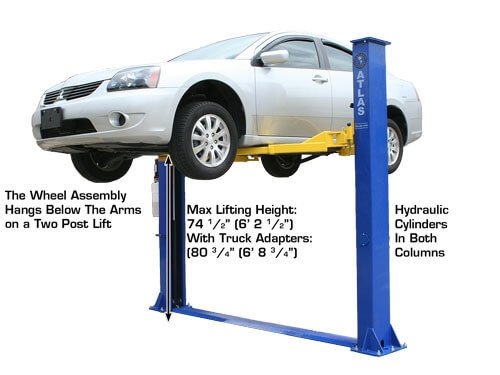

| Max Lift Height w/Adapter | 81" |
| Max Lift Height w/o Adapters | 74 ½" (6' 2 ½") |
| Minimum Arm Height | 4" |

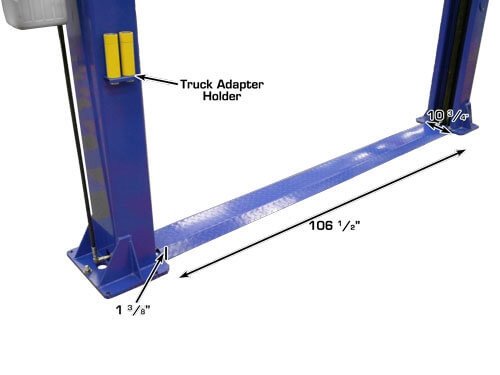

| Base Plate Width | 10 ¾" |
| Inside Column | 110" (9' 2") |
| Drive Thru | 101" (8' 5") |

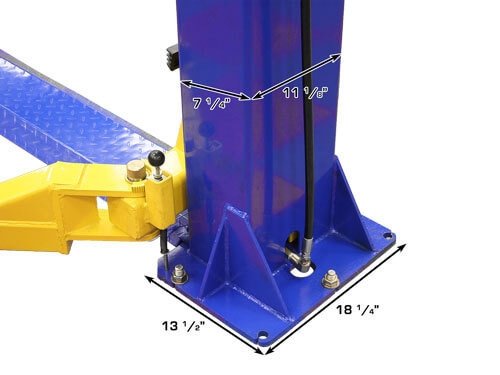

| Column Size | 7 ¼" x 11 1/8" |
| Column Thickness of Steel | 5mm |
| Base of Lift | 14 1/4" x 18 1/4" |

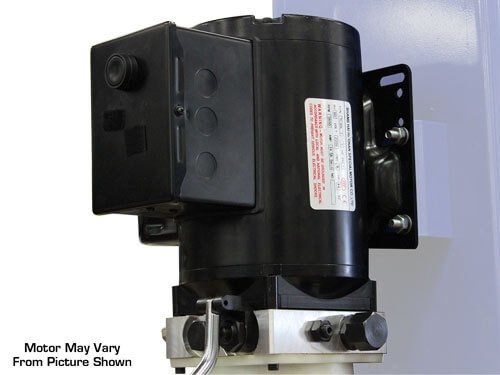

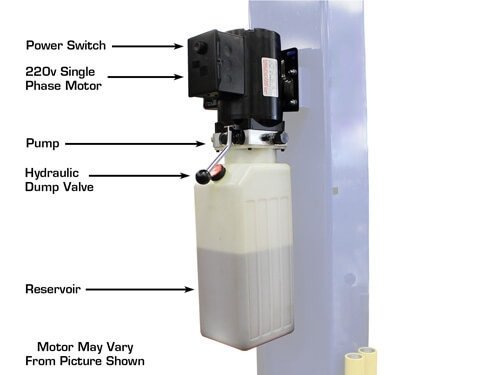

| Motor/Electrical Requirement | 3Hp 220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Weight | 1,400 LB. |
Manufacturer warranty reference — verification required
Warranty information recorded for Atlas Automotive Equipment lists: structural components: 2 years; limited manufacturer coverage: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Atlas Automotive Equipment |
|---|---|
| Symmetric/Asymmetric | Symmetric |
| Weight Capacity | 9000 lbs |
| lift_type | 2-post |
| lift_height | 111.5 |
| lift_width | 142 |
| flatrate | 300 |
| Capacity | 9,000 lbs |
| Lifting Time | N/A |
| Overall Height | 111 ½” (9′ 3 ½”) |
| Overall Width w/Power Unit | 142″ (11′ 10″) |
| Overall Width w/o Power Unit | 134 ½” (11′ 2 ½”) |
| Outside Column To Outside Column | 124 7/8″ (10′ 4 7/8″) |
| Max Lift Height w/Adapter | 81″ |
| Max Lift Height w/o Adapters | 74 ½” (6′ 2 ½”) |
| Minimum Arm Height | 4″ |
| Base Plate Width | 10 ¾” |
| Inside Column | 110″ (9′ 2″) |
| Drive Thru | 101″ (8′ 5″) |
| Column Size | 7 ¼” x 11 1/8″ |
| Column Thickness of Steel | 5mm |
| Base of Lift | 14 1/4″ x 18 1/4″ |
| Motor/Electrical Requirement | 3Hp 220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Weight | 1,400 LB. |
| Forklift? | Choose an option, Yes, I have a forklift at the delivery location., No, I do not have a forklift. Please call me with delivery options. |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
