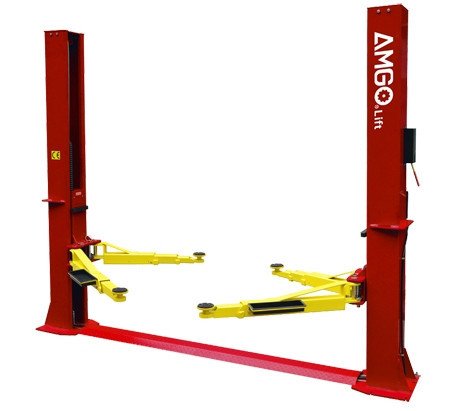

AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs

Name: AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs
Brand: AMGO Hydraulics
SKU: BP-10CA
Price: 1800.00 USD
Availability: InStock

SKU: BP-10CA

Selling price:$1,800.00

Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.

Capacity: 10000 lbs
Configuration: Hybrid
Overall width: 139 1/8" & 145 1/16"

Add to wishlist

ShippingConfirm delivery cost, timing, access, and freight requirements before ordering. Returns & FreightReview return authorization and freight-damage requirements. Product GuidanceAsk Lift Care to review model, options, and delivery access. Ordering AssistanceConfirm the configuration and current manufacturer documents.

SKU: BP-10CA Categories: 2 Post Lifts, Car Lifts Tags: Mid-Range, Sale

Product Decision Guide

Key facts for this configuration

Capacity: 10000 lbs
Configuration: Hybrid
Overall width: 139 1/8" & 145 1/16"
Maximum rise: 76 3/8" ~ 78 1/4"
Power requirement: 2 HP / 220V

Before You Order

Will this lift fit your bay and workflow?

Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.

Request a Product Fit Check

Vehicle & Capacity

Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.

Bay & Clearances

Check overall width, length, ceiling height, door travel, and working clearance.

Floor & Utilities

Verify concrete, anchoring, electrical, and air requirements in the current manual.

Freight Receiving

Prepare carrier access, an available contact, and suitable unloading equipment.

Product Details

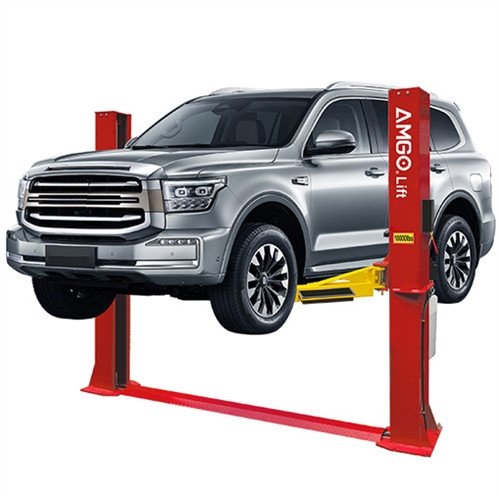

AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs

This page consolidates the recorded data for AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs, a two-post vehicle lift rated at 10,000 lbs. Model identifiers, site inputs and configurable selections appear in separate sections.

Key product facts

Manufacturer: AMGO Hydraulics
Model: BP-10CA
SKU: BP-10CA
Lift format: two-post vehicle lift
Listed capacity: 10,000 lbs
Configuration: Hybrid

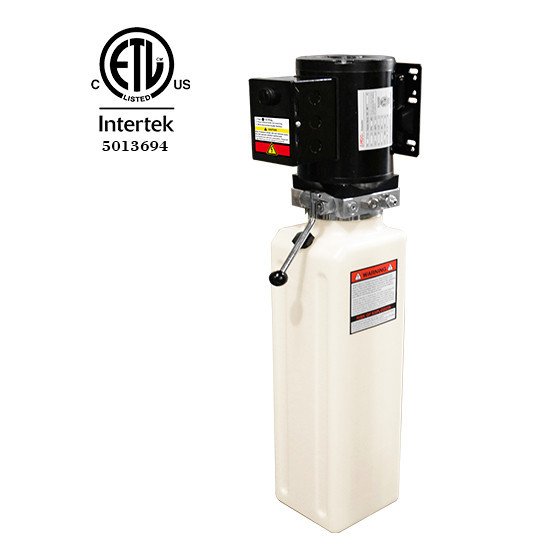

Power or motor requirement: 2 HP / 220V
Maximum lifting height: 76 3/8" ~ 78 1/4"
Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.

Design and functional details

Capacity detail: 10,000 lbs lifting capacity.
Design detail: base-plate design with no overhead obstructions.

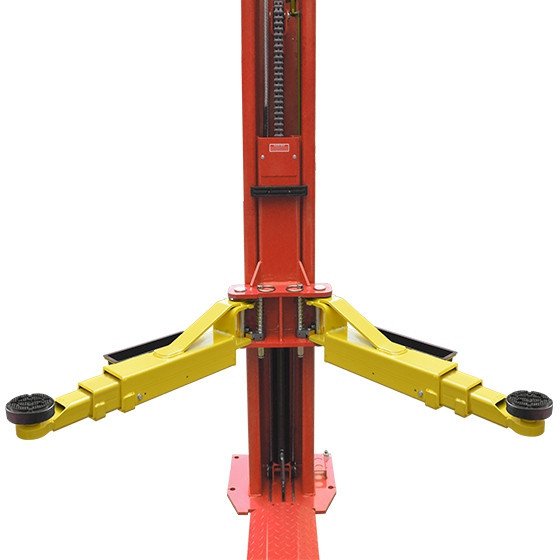

Lifting interface: super-asymmetric® arms.

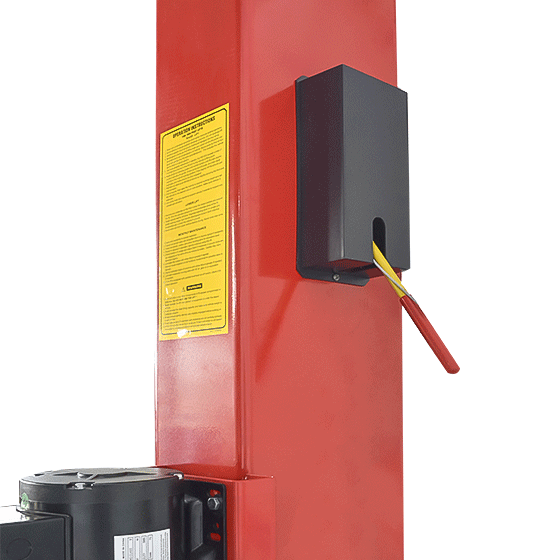

Safety design: single-point safety release and dual locking system.
Design detail: self-lubricating UHMW polyethylene sliders and bronze bushings.

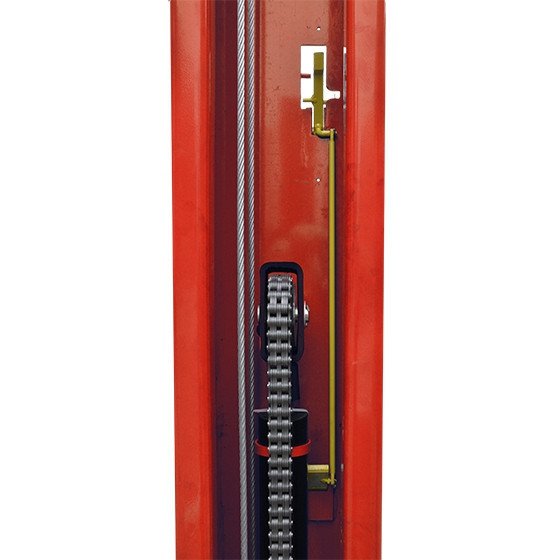

Construction: aircraft-quality synchronization cable.
Design detail: oNLY ships from CA.
Compatibility: two standard installation widths to fit various service senarios.

Included equipment

Stackable rubber pads – protect vehicle lift points and provide stable support

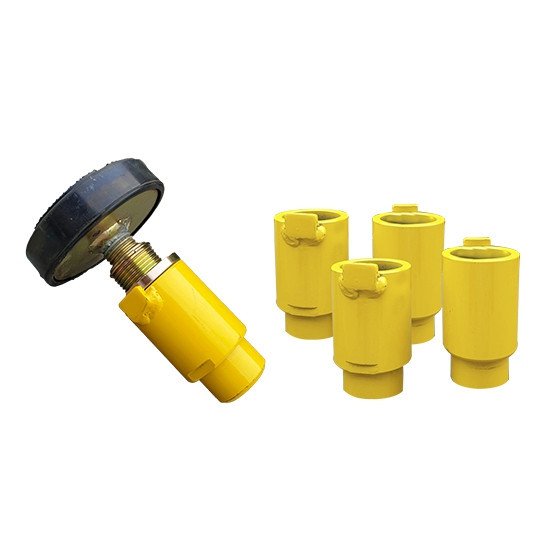

3" extension adapters – accommodate various vehicle lift point heights and configurations

Technical specifications

Specification	Recorded value
Symmetric/Asymmetric	Hybrid
ALI	No
Weight Capacity	10000 lbs
Lifting Capacity	10,000 lbs
A – Max Lifting Height w/o Adapters	76 3/8" ~ 78 1/4"
A – Max Lifting Height w/Adapters	79 3/8" ~ 81 1/4"
A – Max Lock Height w/o Adapters	74 13/16" ~ 76 11/16"
A – Max Lock Height w/Adapters	77 13/16" ~ 79 11/16"
B – Overall Height	111 7/8"
C – Overall Width	139 1/8" & 145 1/16"
D – Drive-Thru Clearance	100 3/4" & 106 11/16"
E – Width Between Columns	112 1/4" & 118 1/8"
F – Minimum Pad Height	3 9/16"
Lifting Time	62 S
Motor	2 HP / 220V
Gross Weight	1,697 lbs

Manufacturer warranty reference — verification required

Warranty information recorded for AMGO Hydraulics lists: limited manufacturer coverage: 5 years; parts: 3 years; electrical components: 2 years. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.

Compatibility and site review

Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.

Specifications

Brand	AMGO Hydraulics
Symmetric/Asymmetric	Hybrid
Weight Capacity	10000 lbs
lift_type	2-post
lift_height	111.875
lift_width	145.0625
Rebate	Sale Price Available While Supplies Last ~ ONLY Ships From CA
Lifting Capacity	10,000 lbs
A - Max Lifting Height w/o Adapters	76 3/8″ ~ 78 1/4″
A - Max Lifting Height w/Adapters	79 3/8″ ~ 81 1/4″
A - Max Lock Height w/o Adapters	74 13/16″ ~ 76 11/16″
A - Max Lock Height w/Adapters	77 13/16″ ~ 79 11/16″
B - Overall Height	111 7/8″
C - Overall Width	139 1/8″ & 145 1/16″
D - Drive-Thru Clearance	100 3/4″ & 106 11/16″
E - Width Between Columns	112 1/4″ & 118 1/8″
F - Minimum Pad Height	3 9/16″
Lifting Time	62 S
Motor	2 HP / 220V
Gross Weight	1,697 lbs
Delivery Options	No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address., Please drop off lift at local freight terminal.
Delivery Notice	I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice

Shipping & Delivery

Delivery Information

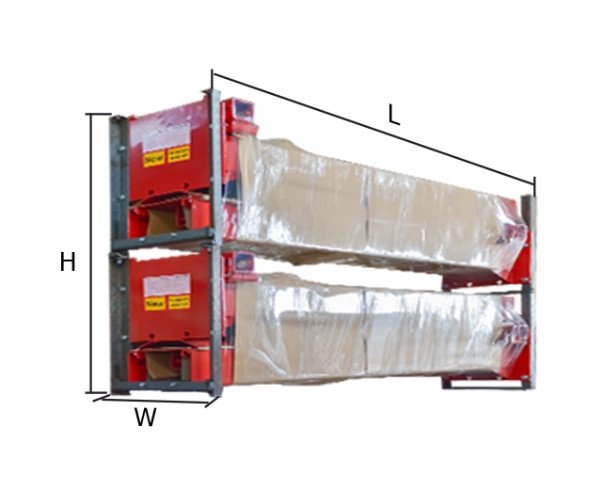

Plan for delivery before your lift arrives

Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
