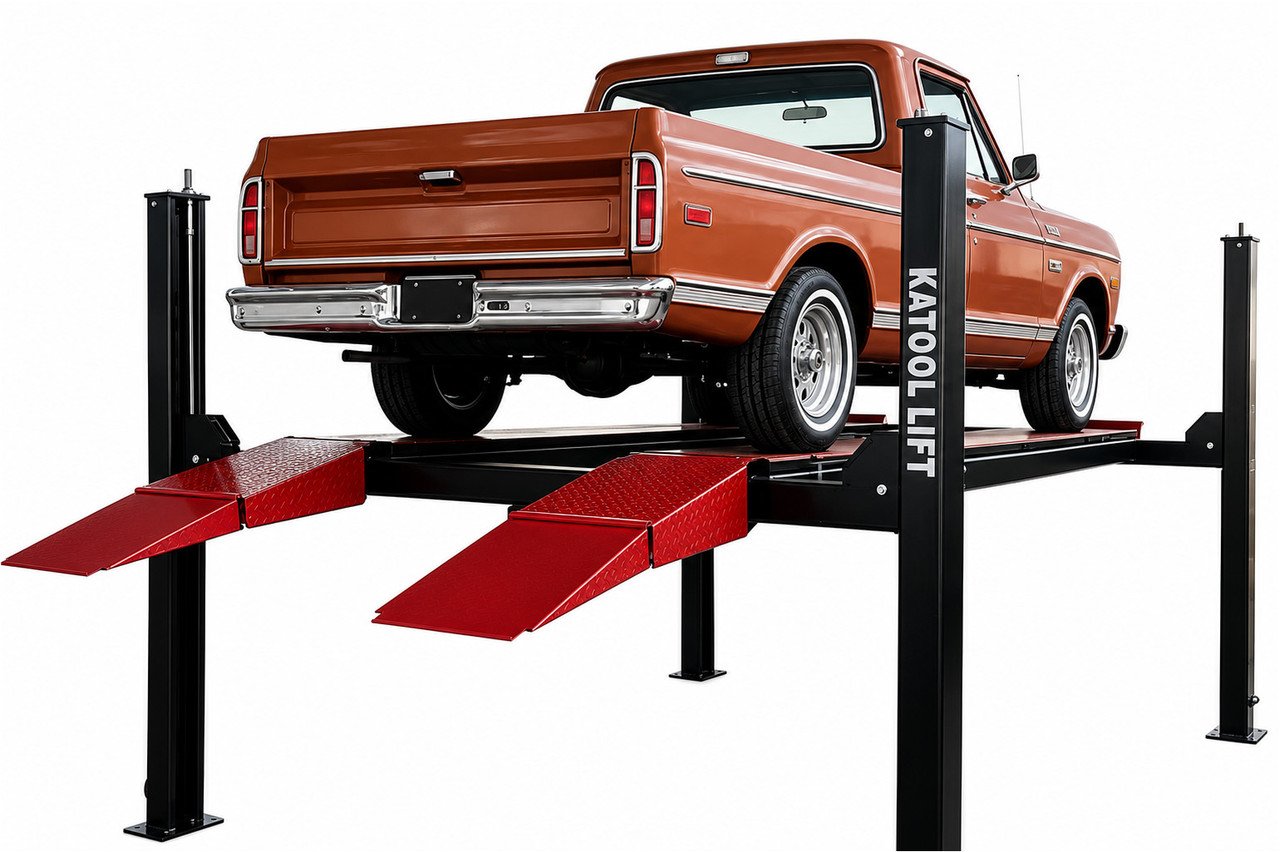

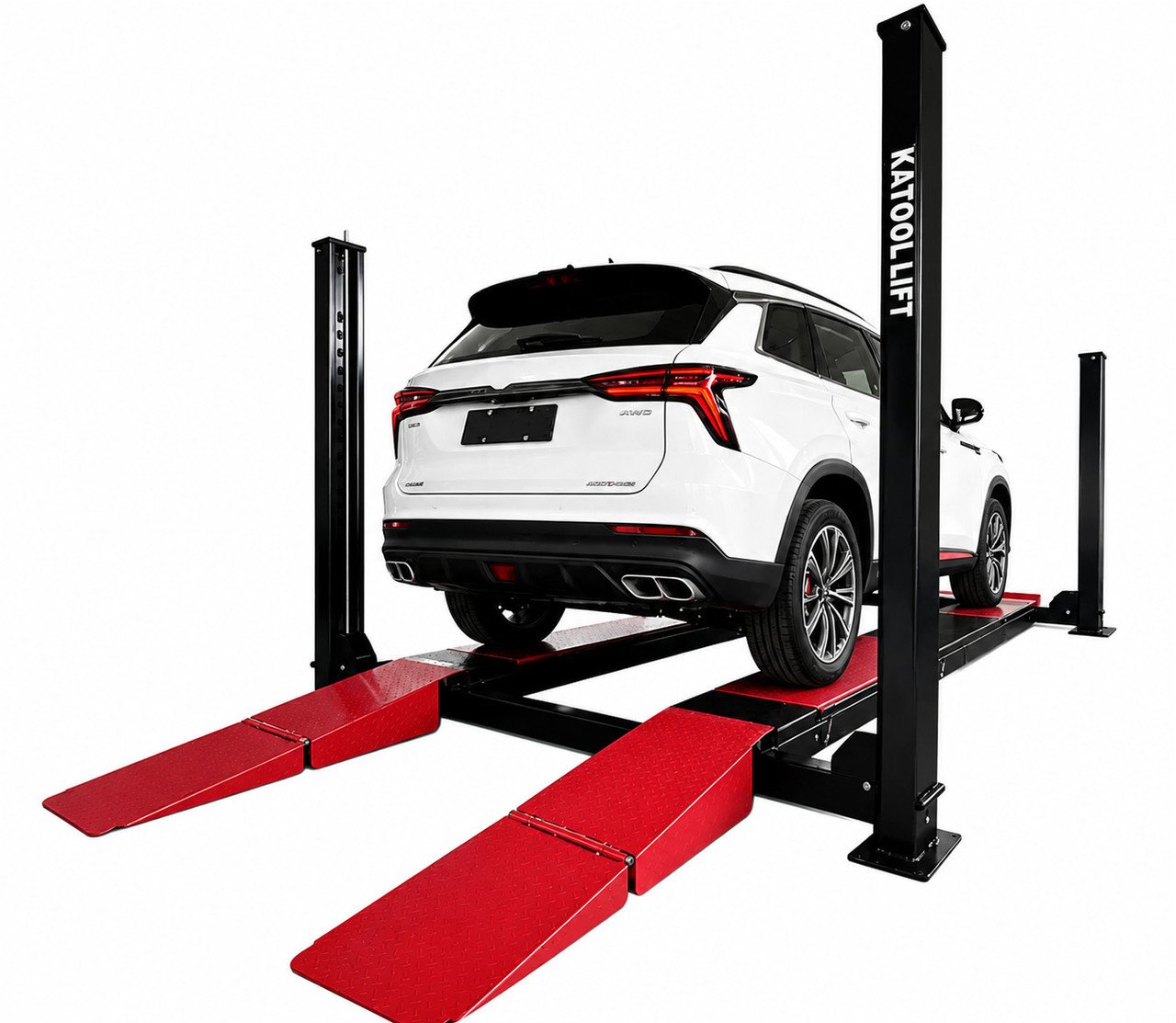

KaTool KT-4M110PA Four Post Alignment Vehicle Lift 11,000lbs
SKU: KT-4M110PA
Selling price:$2,599.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 12000 lbs
- Overall width: 126" / 3200mm
- Maximum rise: 84.5"
Product Decision Guide
Key facts for this configuration
- Capacity
- 12000 lbs
- Overall width
- 126" / 3200mm
- Maximum rise
- 84.5"
- Power requirement
- 220V
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
KaTool KT-4M110PA Four Post Alignment Vehicle Lift 11,000lbs
KaTool KT-4M110PA Four Post Alignment Vehicle Lift 11,000lbs is cataloged by Katool as an alignment lift with 11,000 lbs listed capacity. The sections below separate physical measurements, required utilities and configuration data for equipment selection.
Key product facts
- Manufacturer: Katool
- Model: KT-4M110PA
- SKU: KT-4M110PA
- Lift format: alignment lift
- Listed capacity: 11,000 lbs
- Power or motor requirement: 220V
- Maximum lifting height: 84.5"
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Design detail: 84.5" maximum lifting height.
- Design detail: fast 50-second lifting speed.

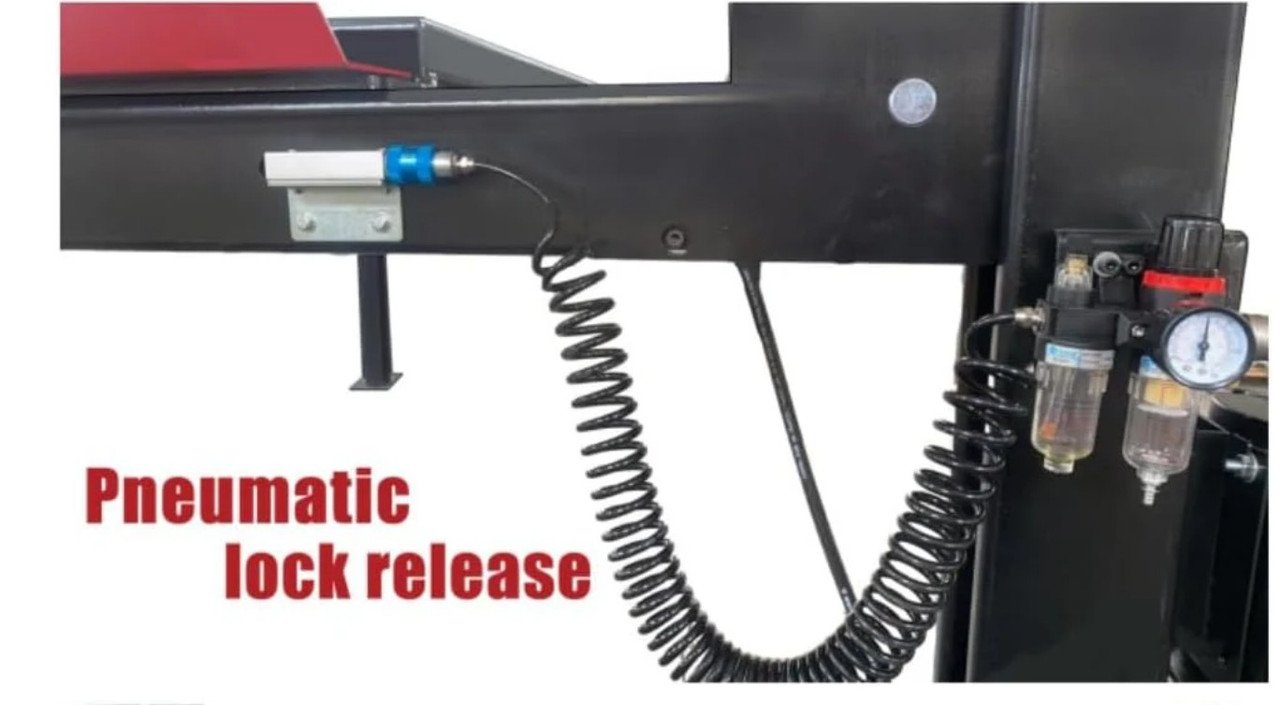

- Safety design: pneumatic safety lock release.
- Design detail: professional 220V operation.
- Platform design: aluminum approach ramps included.
Included equipment

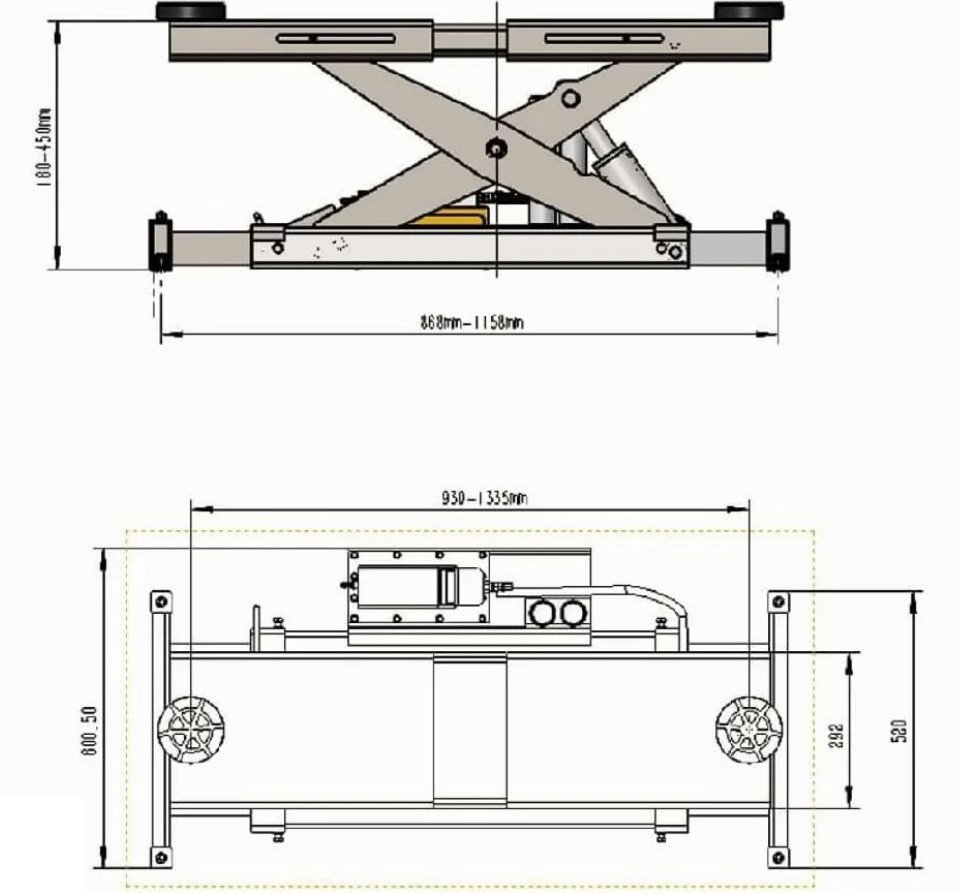

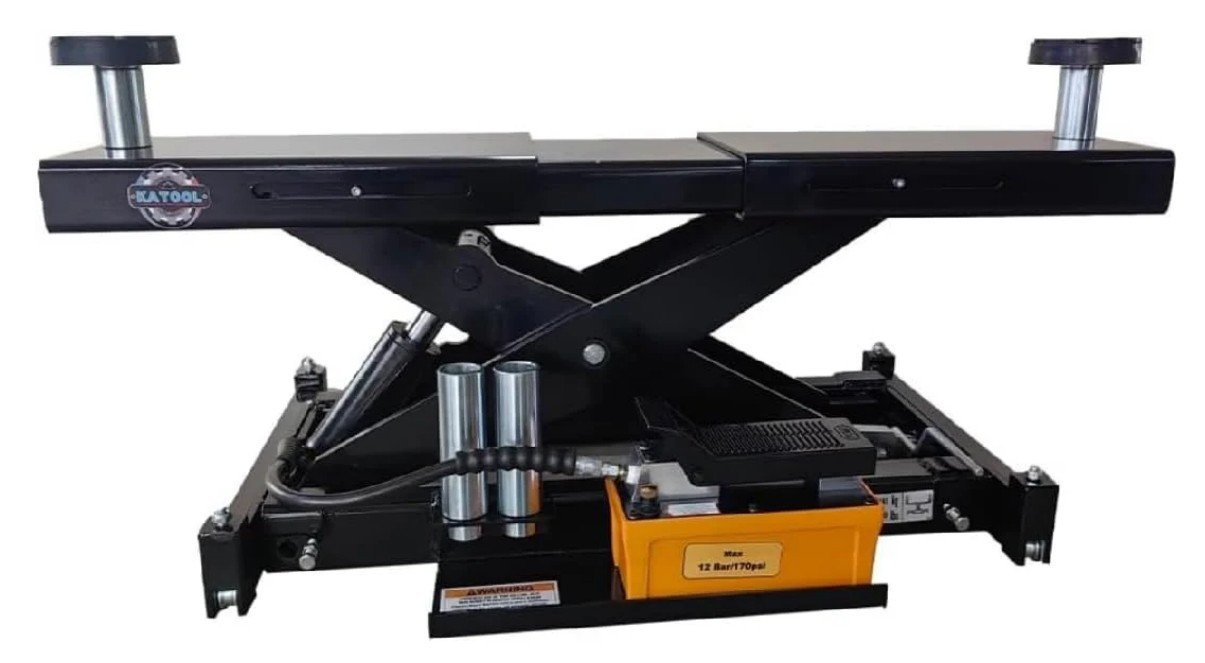

- 7,000 lb Capacity Rolling Jack
- Three Heavy-Duty Drip Trays
- Removable Lift Jack Tray
- Lightweight Aluminum Approach Ramps
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | No |
| Weight Capacity | 12000 lbs |
| Lifting Capacity | 11,000 lbs. |
| Max. Lifting Height | 84.5" |
| Overall Width | 126" / 3200mm |
| Overall Length w/Ramps | 229.73" / 5835mm |
| Outside Column | 124.8" / 3170mm |
| Inside Column | 112.81" / 2865mm |
| Min. Runway Height | 6.2" / 157mm |
| Rolling Jack Capacity | 7,000 lbs |
| Lock Release | Pneumatic Unlocking |
| Lift Time | Approx. 50 Seconds |
| Power Requirement | 220V |
| Net Weight | 2,116 lbs / 960KG |
Manufacturer warranty reference — verification required
Warranty information recorded for Katool lists: parts: 1 year; structural components: 3 years. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Katool |
|---|---|
| Weight Capacity | 12000 lbs |
| flatrate | 1200 |
| Lifting Capacity | 11,000 lbs. |
| Max. Lifting Height | 84.5″ |
| Overall Width | 126″ / 3200mm |
| Overall Length w/Ramps | 229.73″ / 5835mm |
| Outside Column | 124.8″ / 3170mm |
| Inside Column | 112.81″ / 2865mm |
| Min. Runway Height | 6.2″ / 157mm |
| Rolling Jack Capacity | 7,000 lbs |
| Lock Release | Pneumatic Unlocking |
| Lift Time | Approx. 50 Seconds |
| Power Requirement | 220V |
| Net Weight | 2,116 lbs / 960KG |
| Forklift? | Choose an option, Yes, I have a forklift at the delivery location., No, I do not have a forklift. Please call me with delivery options. |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I don’t want a 24 hour Delivery Notice, I want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
