iDeal Lift MSC-18K-X-6108 18,000lb. Per Mobile ALI Column Lifting System (Set of 6)
SKU: MSC-18K-X-6108
Selling price:$33,394.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 50000 lbs & UP
Product Decision Guide
Key facts for this configuration
- Capacity
- 50000 lbs & UP
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
iDeal Lift MSC-18K-X-6108 18,000lb. Per Mobile ALI Column Lifting System (Set of 6)

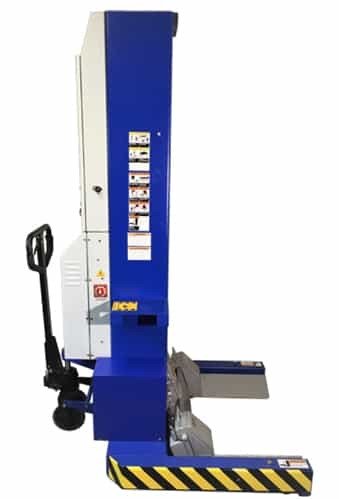

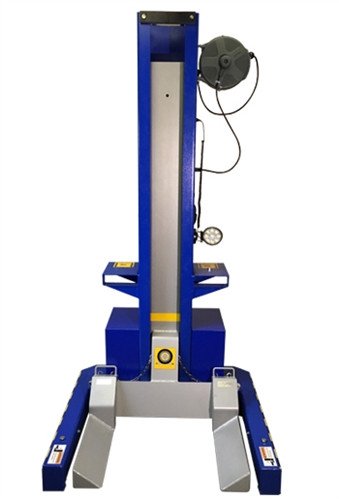

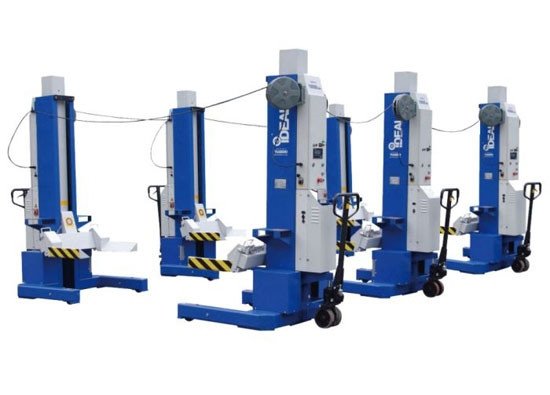

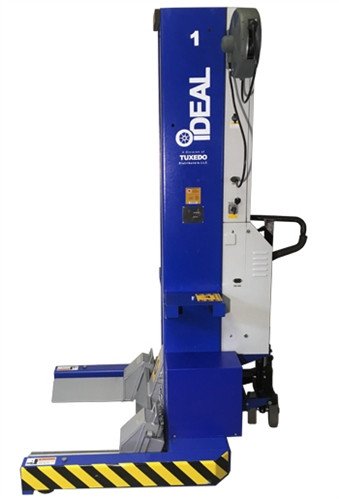

The recorded specifications describe iDeal Lift MSC-18K-X-6108 18,000lb. Per Mobile ALI Column Lifting System (Set of 6) as a mobile column lift system rated at 18,000 lb. This summary separates fixed product data from model-dependent options and supplied components.
Key product facts
- Manufacturer: iDeal Lift
- Model: MSC-18K-X-6108
- SKU: MSC-18K-X-6108
- Lift format: mobile column lift system
- Listed capacity: 18,000 lb
- Maximum lifting height: 67.1"
- Manufacturer-listed certification status: iDeal Lift product data lists this model as ALI certified; verify the current certification record before publication.
Design and functional details
- Capacity detail: 18,000 lbs. per column.
- Power system: cordless 24VDC battery operation with onboard charging system.

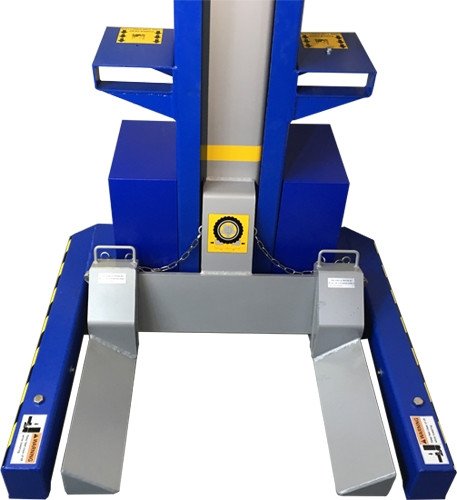

- Design detail: adjustable lifting forks.
- Design detail: PLC and optical encoder synchronization.
- Design detail: easy mobility and storage.
- Design detail: maximum 32 feet 8 inches spacing between columns.

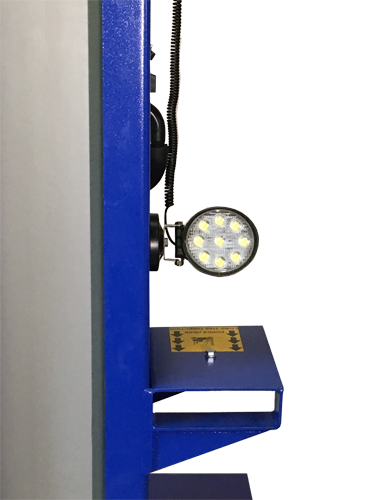

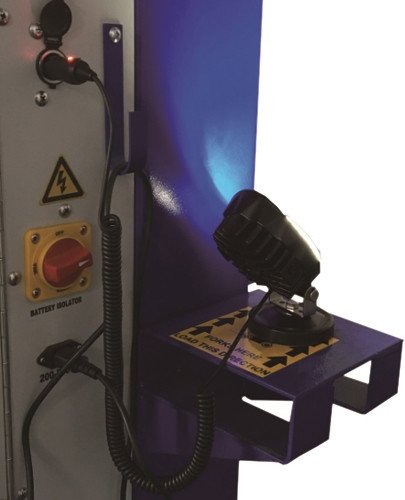

- Design detail: new LED light with magnetic base included.
- Capacity detail: 18,000 lb lifting capacity per column.
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | Yes |
| Weight Capacity | 50000 lbs & UP |
| Capacity Per Column | 18,000 lbs. |
| Total Capacity | 36,000 lbs. | 72,000 lbs. | 108,000 lbs. |
| Lifting Height | 67.1" |
| Column Height | Min 88.6" / Max 155.5" |
| Column Width | 44.1" |
| Fork Adjustable Range | 12.6" – 22" |
| Fork Length | 17.9" |
| Fork to Column Clearance | 10" |
| Lifting / Lowering Time | 100 seconds / 60 sec at load of 18,000 lbs each column |
| Max Distance Between Columns | 32' 8" |
| Min Concrete Surface Strength | 3,000 Psi |
| Set-Up Operation | Indoor |
| Charging Voltage Input | 100-140 V / 6oHz / Single Phase |
| Charging Voltage Output | 24VDC, Max 15 Amp |
| *Battery Type (Recommended) | 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 |
| Battery (Not Included) Specifications | MSC-13K-B & MSC-18K-X |
| Deep Cycle Batteries | Type 27 or 31 Series |
| Requirement Voltage Per Column | Qty 2 12V or Qty 1 24V |
| Rating | 120 AMP / HR |
| Starting Current | 350 CCA – 500 CCA |
| Battery Cover Size | 14.56" x 8.27" x 13" |
| Battery Dimension | 14.2" x 7.5" x 11.8" Tall Max |
Manufacturer warranty reference — verification required
Warranty information recorded for iDeal Lift lists: structural components: 5 years; limited manufacturer coverage: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | iDeal Lift |
|---|---|
| Weight Capacity | 50000 lbs & UP |
| Capacity Per Column | 18,000 lbs. |
| Total Capacity | 36,000 lbs., 72,000 lbs., 108,000 lbs. |
| Lifting Height | 67.1″ |
| Column Height | Min 88.6″ / Max 155.5″ |
| Column Width | 44.1″ |
| Fork Adjustable Range | 12.6″ – 22″ |
| Fork Length | 17.9″ |
| Fork to Column Clearance | 10″ |
| Lifting / Lowering Time | 100 seconds / 60 sec at load of 18,000 lbs each column |
| Max Distance Between Columns | 32′ 8″ |
| Min Concrete Surface Strength | 3,000 Psi |
| Set-Up Operation | Indoor |
| Charging Voltage Input | 100-140 V / 6oHz / Single Phase |
| Charging Voltage Output | 24VDC, Max 15 Amp |
| *Battery Type (Recommended) | 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 |
| Battery (Not Included) Specifications | MSC-13K-B & MSC-18K-X |
| Deep Cycle Batteries | Type 27 or 31 Series |
| Requirement Voltage Per Column | Qty 2 12V or Qty 1 24V |
| Rating | 120 AMP / HR |
| Starting Current | 350 CCA – 500 CCA |
| Battery Cover Size | 14.56″ x 8.27″ x 13″ |
| Battery Dimension | 14.2″ x 7.5″ x 11.8″ Tall Max |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address., Please drop off lift at local freight terminal. |
| Residential, or business address? | Delivery address is in a business zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
