iDeal Lift MSC-13K-B-452 13,200lb. Per Mobile Column Lifting System (Set of 4)
SKU: MSC-13K-B-452
Selling price:$18,145.00
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 50000 lbs & UP
- Overall width: 44"
- Power requirement: 24VDC/3HP
Product Decision Guide
Key facts for this configuration
- Capacity
- 50000 lbs & UP
- Overall width
- 44"
- Power requirement
- 24VDC/3HP
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
iDeal Lift MSC-13K-B-452 13,200lb. Per Mobile Column Lifting System (Set of 4)
iDeal Lift MSC-13K-B-452 13,200lb. Per Mobile Column Lifting System (Set of 4) uses the heavy-duty four-post vehicle lift format identified in the product records. Its stated capacity is 13,200 lb. The description below brings measurements, supplied equipment and configuration choices into one technical reference.
Key product facts
- Manufacturer: iDeal Lift
- Model: MSC-13K-B-452
- SKU: MSC-13K-B-452
- Lift format: heavy-duty four-post vehicle lift
- Listed capacity: 13,200 lb
- Manufacturer-listed certification status: iDeal Lift product data lists this model as ALI certified; verify the current certification record before publication.
Design and functional details
- Capacity detail: massive 52,800 lb. total lifting capacity: four columns at 13,200 lbs. each easily.
- Design detail: synchronization technology: siemens PLC system and electro-optical encoder.
- Mobility: effortless positioning & maneuverability: pallet jack style wheels.
- Capacity detail: 13,200 lb lifting capacity per column.
- Design detail: sold in sets of 2 (MSC-13K-B-226), 4 (MSC-13K-B-452) or 6 (MSC-13K-B-678).
- Design detail: easy.
- Design detail: siemens PLC and electro-optical encoder.

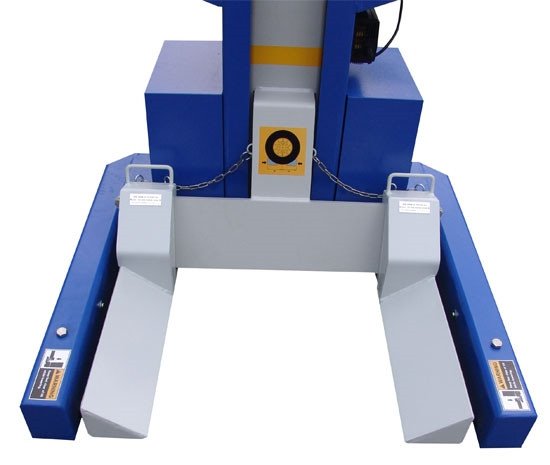

- Design detail: adjustable lifting forks.
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | Yes |
| Weight Capacity | 50000 lbs & UP |
| Capacity Per Column | 13,200 lbs. |
| Total Capacity | 26,400 lbs. | 52,800 lbs. | 79,200 lbs. |
| Overall Height Per Column | 88.5" |
| Overall Width Per Column | 44" |
| Maximum Distance Between Columns | 32'-8" |
| Fork Length | 14" |
| Lifting/Lowering Time | 75/60 sec |
| Power Pack | 24VDC/3HP |
| Noise Level | 70dB(A) |
| Net Weight Per Column | 1,210 lbs |
| Total Net Weight | 2,420 lbs. | 4,840 lbs. | 7,260 lbs. |
| Battery (Not Included) Specifications | MSC-13K-B & MSC-18K-X |
| Deep Cycle Batteries | Type 27 or 31 Series |
| Requirement Voltage Per Column | Qty 2 12V or Qty 1 24V |
| Rating | 120 AMP / HR |
| Starting Current | 350 CCA – 500 CCA |
| Battery Cover Size | 14.56" x 8.27" x 13" |
| Battery Dimension | 14.2" x 7.5" x 11.8" Tall Max |
Manufacturer warranty reference — verification required
Warranty information recorded for iDeal Lift lists: structural components: 5 years; limited manufacturer coverage: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | iDeal Lift |
|---|---|
| Weight Capacity | 50000 lbs & UP |
| Capacity Per Column | 13,200 lbs. |
| Total Capacity | 26,400 lbs., 52,800 lbs., 79,200 lbs. |
| Overall Height Per Column | 88.5″ |
| Overall Width Per Column | 44″ |
| Maximum Distance Between Columns | 32′-8″ |
| Fork Length | 14″ |
| Lifting/Lowering Time | 75/60 sec |
| Power Pack | 24VDC/3HP |
| Noise Level | 70dB(A) |
| Net Weight Per Column | 1,210 lbs |
| Total Net Weight | 2,420 lbs., 4,840 lbs., 7,260 lbs. |
| Battery (Not Included) Specifications | MSC-13K-B & MSC-18K-X |
| Deep Cycle Batteries | Type 27 or 31 Series |
| Requirement Voltage Per Column | Qty 2 12V or Qty 1 24V |
| Rating | 120 AMP / HR |
| Starting Current | 350 CCA – 500 CCA |
| Battery Cover Size | 14.56″ x 8.27″ x 13″ |
| Battery Dimension | 14.2″ x 7.5″ x 11.8″ Tall Max |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address., Please drop off lift at local freight terminal. |
| Residential, or business address? | Delivery address is in a business zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
