iDeal FP14KC-X Commercial Service/Storage Lift 14,000 lb
SKU: FP14KC-X
Selling price:$4,090.00
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 14000 lbs
- Overall width: 142"
- Maximum rise: 77 1/2"
Product Decision Guide
Key facts for this configuration
- Capacity
- 14000 lbs
- Overall width
- 142"
- Maximum rise
- 77 1/2"
- Power requirement
- 220V - 20 Amp - 1PH
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.

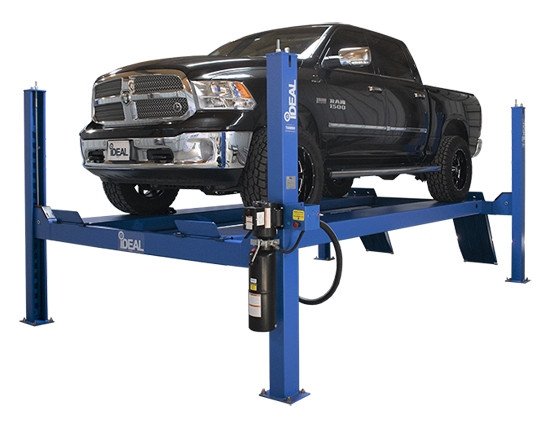

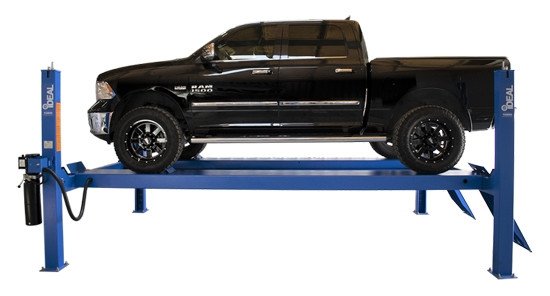

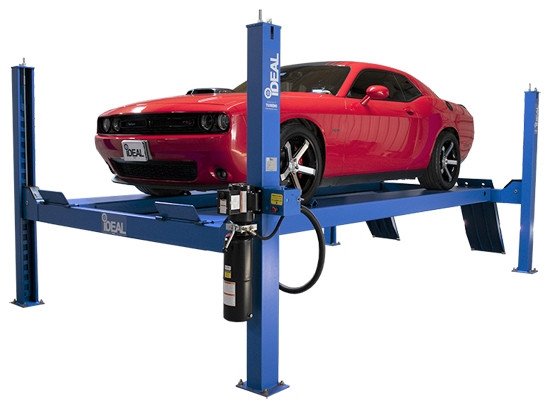

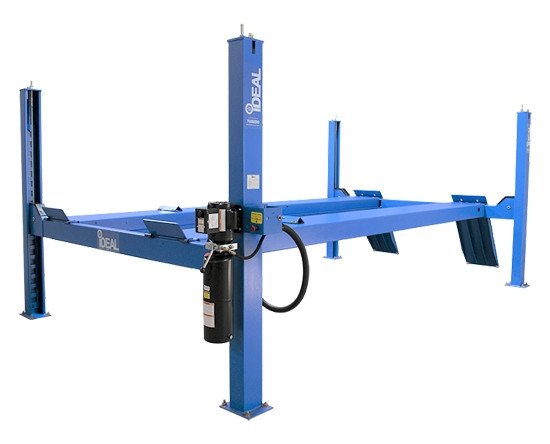

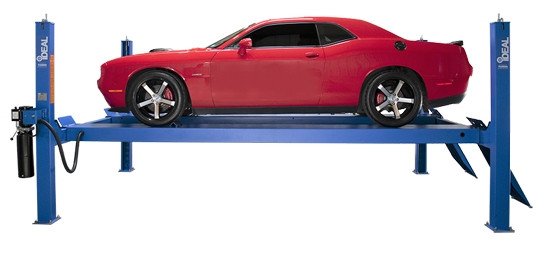

iDeal FP14KC-X Commercial Service/Storage Lift 14,000 lb
The recorded specifications describe iDeal FP14KC-X Commercial Service/Storage Lift 14,000 lb as a heavy-duty four-post vehicle lift rated at 14,000 lb. This summary separates fixed product data from model-dependent options and supplied components.
Key product facts
- Manufacturer: iDeal Lift
- Model: FP14KC-X
- SKU: FP14KC-X
- Lift format: heavy-duty four-post vehicle lift
- Listed capacity: 14,000 lb
- Power or motor requirement: 220V – 20 Amp – 1PH
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.

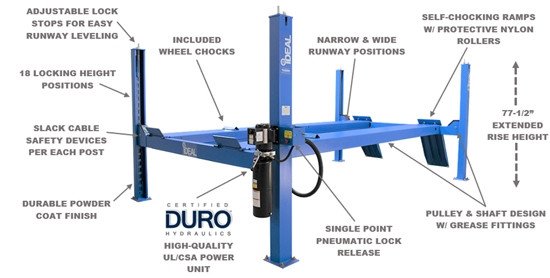

Design and functional details
- Capacity detail: 14,000 lb capacity.
- Design detail: extended rise height (77 1/2").
- Design detail: modular design.
- Safety design: cable lift system with slack cable safety devices and convenient grease fittings.
- Safety design: 18 locking height positions and single point pneumatic safety release.
- Compatibility: 20" wide runways with narrow and wide mounting positions to fit diverse vehicle track widths.
- Platform design: self-chocking ramps with nylon rollers and included wheel chocks.
- Power system: powder-coated finish and DURO power unit.
Included equipment
- 1 Pair of Wheel Chocks
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | No |
| Weight Capacity | 14000 lbs |
| Capacity | 14,000 lbs. |
| Overall Length w/Ramp | 252 1/2" |
| Overall Width w/Power Unit | 142" |
| Overall Width w/o Power Unit | 131 7/8" |
| Overall Height | 92 1/2" |
| Max Rise Height | 77 1/2" |
| Min Height | 7 7/8" |
| Width Between Posts | 116 1/4" |
| Length Between Posts | 196" |
| Width Between Runways | 43" or 46" |
| Width of Runways | 20" |
| Max Wheelbase | 182 1/2" |
| Ramp Length | 44" |
| Max Clearance Under Runway | 69 5/8" |
| Drive-Thru Clearance | 96" |
| Base Plate | 10 1/2" x 9" |
| Power | 220V – 20 Amp – 1PH |
| Ship Weight | 2,690 lbs. |
| Min Bay Size | 16' x 25' |
Manufacturer warranty reference — verification required
Warranty information recorded for iDeal Lift lists: structural components: 5 years; limited manufacturer coverage: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | iDeal Lift |
|---|---|
| Item | Product |
| Weight Capacity | 14000 lbs |
| lift_type | 4-post |
| lift_height | 92.5 |
| lift_width | 142 |
| lift_depth | 208.5 |
| lift_depth_with_ramps | 252.5 |
| Capacity | 14,000 lbs. |
| Overall Length w/Ramp | 252 1/2″ |
| Overall Width w/Power Unit | 142″ |
| Overall Width w/o Power Unit | 131 7/8″ |
| Overall Height | 92 1/2″ |
| Max Rise Height | 77 1/2″ |
| Min Height | 7 7/8″ |
| Width Between Posts | 116 1/4″ |
| Length Between Posts | 196″ |
| Width Between Runways | 43″ or 46″ |
| Width of Runways | 20″ |
| Max Wheelbase | 182 1/2″ |
| Ramp Length | 44″ |
| Max Clearance Under Runway | 69 5/8″ |
| Drive-Thru Clearance | 96″ |
| Base Plate | 10 1/2″ x 9″ |
| Power | 220V – 20 Amp – 1PH |
| Ship Weight | 2,690 lbs. |
| Min Bay Size | 16′ x 25′ |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address., Please drop off lift at local freight terminal. |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
