BendPak PL-6KT 18,000-lb. Triple / Independent Platforms Parking Lift
SKU: 5175154
Selling price:$23,847.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 18,000 lbs & 19,000lbs
- Configuration: Multi-Platform | Ex-Wide Multi-Platform | Triple Multi-Platform
- Overall width: 210.75” (5,353 mm) | 250” / 6,350 mm | 308” (7,834 mm)
Product Decision Guide
Key facts for this configuration
- Capacity
- 18,000 lbs & 19,000lbs
- Configuration
- Multi-Platform | Ex-Wide Multi-Platform | Triple Multi-Platform
- Overall width
- 210.75” (5,353 mm) | 250” / 6,350 mm | 308” (7,834 mm)
- Maximum rise
- 89” / 2,261 mm
- Power requirement
- 220 VAC / 60 Hz. 1Ph.
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.

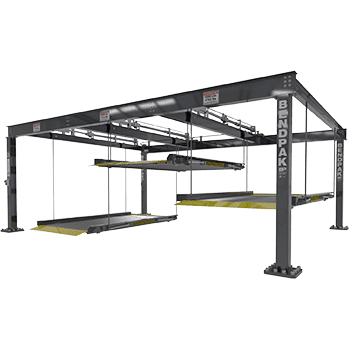

BendPak PL-6KT 18,000-lb. Triple / Independent Platforms Parking Lift
This page consolidates the recorded data for BendPak PL-6KT 18,000-lb. Triple / Independent Platforms Parking Lift, a parking lift rated at 6,000-lb. Per Deck (12,000 lbs. total) / 2,722 kg. Model identifiers, site inputs and configurable selections appear in separate sections.
Key product facts
- Manufacturer: BendPak
- Model: 5175154
- SKU: 5175154
- Lift format: parking lift
- Listed capacity: 6,000-lb. Per Deck (12,000 lbs. total) / 2,722 kg
- Configuration: Multi-Platform | Ex-Wide Multi-Platform | Triple Multi-Platform
- Power or motor requirement: 220 VAC / 60 Hz. 1Ph
- Maximum lifting height: 89” / 2,261 mm
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Capacity detail: 18,000-lb. total capacity.
- Platform design: three independent platforms.
- Construction: rugged I-beam and C-channel construction with powder-coat finish.
- Design detail: wide base-plate.
- Platform design: non-skid runway surface.
- Capacity detail: 6,000-lb. capacity per deck (18,000 lbs. total).
- Design detail: perfect.
- Design detail: rugged I-beam and C-channel construction.
Available configurations and accessories
- Style: Multi-Platform; Ex-Wide Multi-Platform; Triple Multi-Platform
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | No |
| Weight Capacity | 18,000 lbs & 19,000lbs |
| Style | Multi-Platform | Ex-Wide Multi-Platform | Triple Multi-Platform |
| Lifting Capacity | 6,000-lb. Per Deck (12,000 lbs. total) / 2,722 kg |
| Overall Width | 210.75” (5,353 mm) | 250” / 6,350 mm | 308” (7,834 mm) |
| Overall Length | 236-1/2” / 6,008 mm |
| Overall Height | 122.75” (3,118 mm) | 123.75” (3,140 mm) |
| Min. Runway Height | 9” / 230 mm |
| Max. Rise | 89” / 2,261 mm |
| Width Between Posts | 185-1/2" / 4,715 mm | 225” / 5,713 mm | 283" (7,197 mm) |
| Platform Width | 82" / 2,086 mm |
| Length of Platforms | 152" / 3,862 mm |
| Drive-thru Clearance | 93" / 2,374 mm |
| Locking Positions | 1 (Adjustable) |
| Lifting Time | 30 Seconds |
| Standard Motor | 220 VAC / 60 Hz. 1Ph. |
| Shipping Weight | 6,905-lbs. (3,132 kg) | 7,125-lbs. (3231 kg) | 8,889-lbs. (4,032 kg) |
| Shipping Dimensions | 234" x 32" x 62" (5,943 x 812 x 1,574 mm) | 310" x 32" x 63" (7,874 x 813 x 1,600 mm) |
Manufacturer warranty reference — verification required
Warranty information recorded for BendPak lists: structural components: 5 years; hydraulic cylinder: 2 years; limited manufacturer coverage: 1 year; power unit: 1 year; labor: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | BendPak |
|---|---|
| Item | Product |
| Weight Capacity | 18,000 lbs & 19,000lbs |
| Style | Multi-Platform, Ex-Wide Multi-Platform, Triple Multi-Platform |
| Lifting Capacity | 6,000-lb. Per Deck (12,000 lbs. total) / 2,722 kg |
| Overall Width | 210.75” (5,353 mm), 250” / 6,350 mm, 308” (7,834 mm) |
| Overall Length | 236-1/2” / 6,008 mm |
| Overall Height | 122.75” (3,118 mm), 123.75” (3,140 mm) |
| Min. Runway Height | 9” / 230 mm |
| Max. Rise | 89” / 2,261 mm |
| Width Between Posts | 185-1/2″ / 4,715 mm, 225” / 5,713 mm, 283″ (7,197 mm) |
| Platform Width | 82″ / 2,086 mm |
| Length of Platforms | 152″ / 3,862 mm |
| Drive-thru Clearance | 93″ / 2,374 mm |
| Locking Positions | 1 (Adjustable) |
| Lifting Time | 30 Seconds |
| Standard Motor | 220 VAC / 60 Hz. 1Ph. |
| Shipping Weight | 6,905-lbs. (3,132 kg), 7,125-lbs. (3231 kg), 8,889-lbs. (4,032 kg) |
| Shipping Dimensions | 234″ x 32″ x 62″ (5,943 x 812 x 1,574 mm), 310″ x 32″ x 63″ (7,874 x 813 x 1,600 mm) |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address. |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
