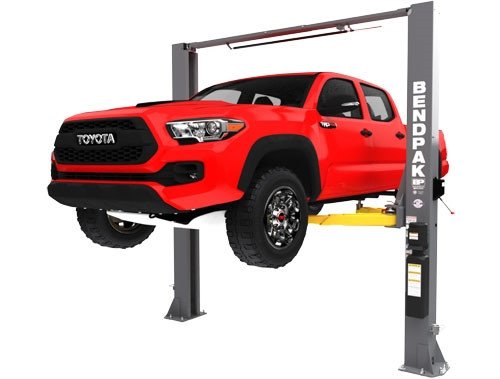

BendPak 10AP-168 Adaptable Clearfloor Adj-Width Ex-Tall ALI 2 Post Lift 10,000 lb. – New
SKU: 5175305
Selling price:$3,297.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 10000 lbs
- Configuration: Hybrid
- Overall width: 135" or 145" / 3,431 mm or 3,683 mm
Product Decision Guide
Key facts for this configuration
- Capacity
- 10000 lbs
- Configuration
- Hybrid
- Overall width
- 135" or 145" / 3,431 mm or 3,683 mm
- Maximum rise
- 69" / 1,753 mm | 75.5" / 1,918 mm
- Power requirement
- 220 VAC / 60 Hz. / 1Ph
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.

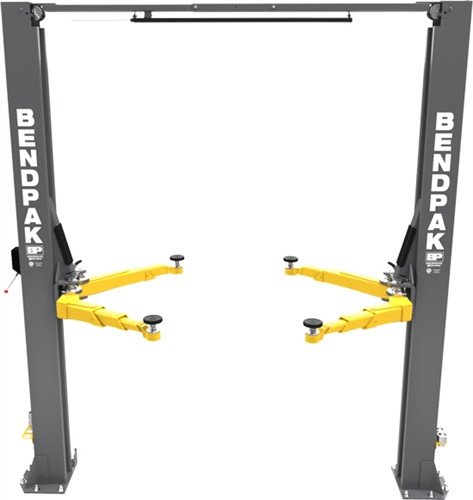

BendPak 10AP-168 Adaptable Clearfloor Adj-Width Ex-Tall ALI 2 Post Lift 10,000 lb. – New
Selection data for this BendPak two-post vehicle lift is grouped by identity, physical size, required utilities and configuration. The cataloged capacity is 10,000 lb. Cross-check the chosen model against the intended vehicle and work area.
Key product facts
- Manufacturer: BendPak
- Model: 10AP | 10AP-168 | 10APX | 10APX-181
- SKU: 5175305
- Lift format: two-post vehicle lift
- Listed capacity: 10,000 lb
- Configuration: Hybrid
- Power or motor requirement: 220 VAC / 60 Hz. / 1Ph

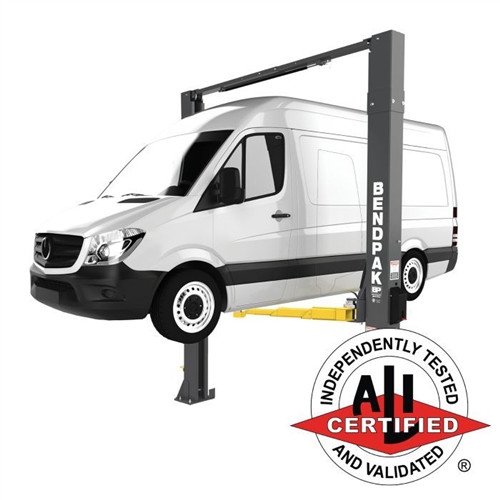

- Manufacturer-listed certification status: BendPak product data lists this model as ALI certified; verify the current certification record before publication.
Design and functional details
- Capacity detail: 10,000 lb. lifting capacity.
- Design detail: extra-tall 168" overall height.
- Design detail: adjustable width top beam (135" or 145" wide).

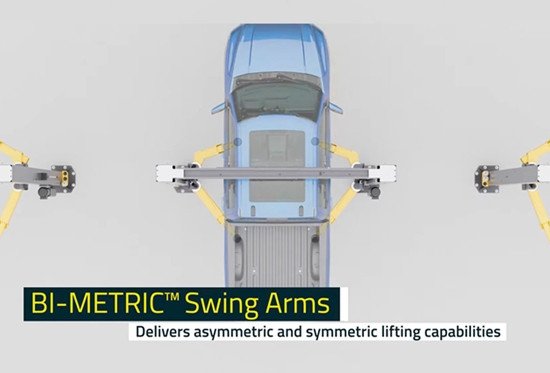

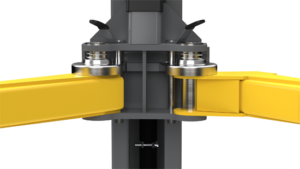

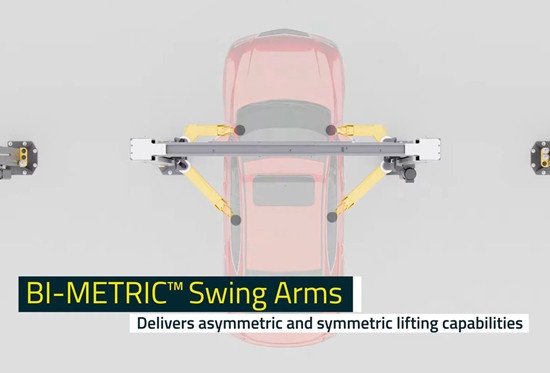

- Lifting interface: bi-metric™ swing arms switch between symmetric and asymmetric configurations without arm changes.

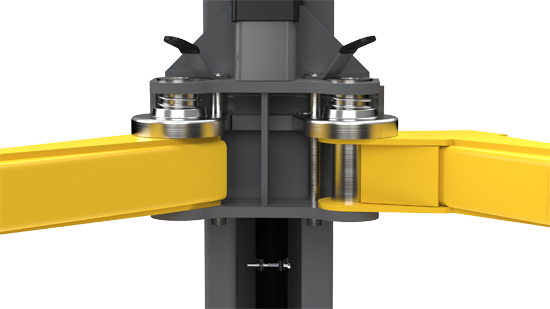

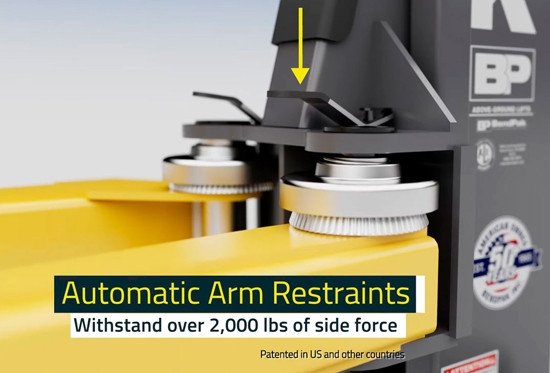

- Safety design: aSARS automatic arm restraint system with over 2,000 lbs. of holding force.

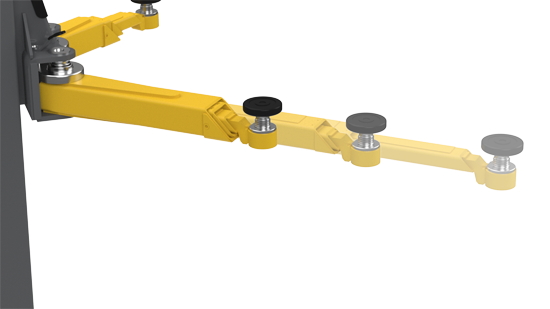

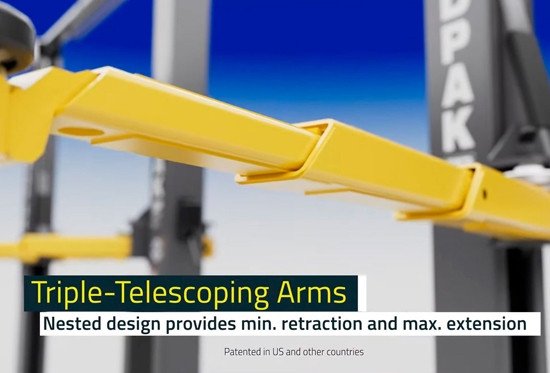

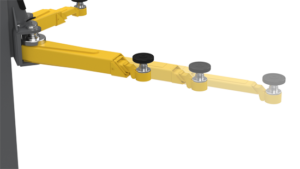

- Lifting interface: triple-telescoping arms with drop-end design and reach.
- Safety design: automatic safety lock system with single-point release.
- Design detail: clear-floor design.
Included equipment

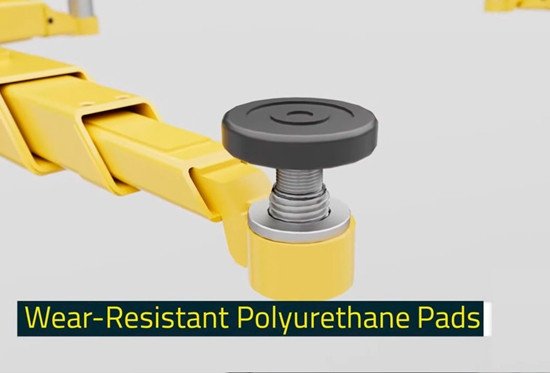

- 4-Piece screw pads and adapter holder
- Installation manual with detailed instructions and diagrams

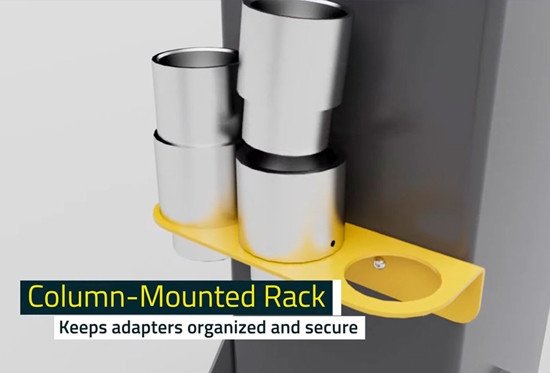

- Column-mounted adapter racks
- 4-Piece Screw Pads & Adapter Holder
Available configurations and accessories
- Model: 10AP; 10AP-168; 10APX; 10APX-181
Technical specifications
| Specification | Recorded value |
|---|---|
| Symmetric/Asymmetric | Hybrid |
| ALI | Yes |
| Weight Capacity | 10000 lbs |
| Model | 10AP | 10AP-168 | 10APX | 10APX-181 |
| Lifting Capacity: (*) | 10,000 lbs. (4,536 kg) |
| A – Max Rise | 69" / 1,753 mm | 75.5" / 1,918 mm |
| B – Rise + Pad Only | 73" / 1,854 mm | 79.5" / 2,007 mm |
| C – Rise + Pad + 63 mm Adapter | 82.5" /2,096 mm | 89" / 2,261 mm |

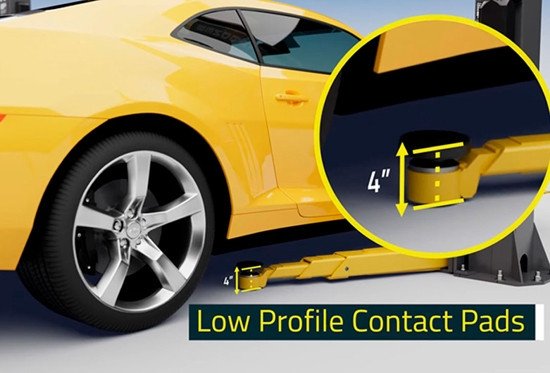

| D – Min. Height + Pad | 4" /102 mm |
| Time to Full Rise | ≈45 seconds |

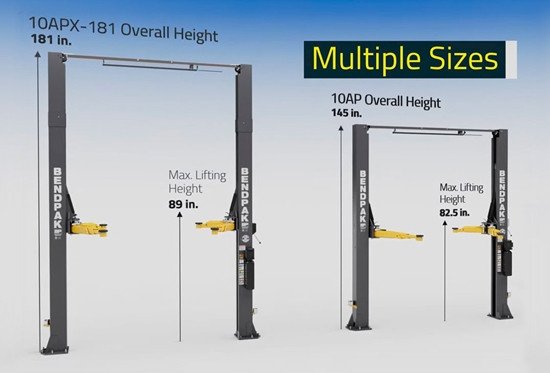

| E – Height Overall | 145" /3,683 mm | 168" / 4,267 mm | 157" / 3,988 mm | 181" / 4,597 mm |
| F – Width Overall | 135" or 145" / 3,431 mm or 3,683 mm |
| G – Outside Column Width | 127.5" or 137.5" / 3,239 mm or 3,493 mm |
| H – Inside Columns | 108.5" or 118.5" / 2,756 mm or 3,010 mm |
| I – Drive-Thru Clearance | 97.5" or 107.5" (2,477 mm or 2,731 mm) |
| J – Floor To Overhead Switch | 140" / 3,556 mm | 163" / 4,140 mm | 152" / 3,861 mm | 176" / 4,470 mm |
| K – Front Arm Reach (Max) | 50" / 1,270 mm |
| K – Front Arm Reach (Min) | 24.5" / 622 mm |
| K – Rear Arm Reach (Max) | 59.25" / 1,505 mm |
| K – Rear Arm Reach (Min) | 32" / 813 mm |
| Max Load Per Arm | 2,500 lbs. / 1,134 kg |
| Screw Pad Adjustment | 2" / 51 mm |
| Motor | 220 VAC / 60 Hz. / 1Ph |
| Noise | <70 dB |
Manufacturer warranty reference — verification required
Warranty information recorded for BendPak lists: structural components: 5 years; hydraulic cylinder: 2 years; limited manufacturer coverage: 1 year; power unit: 1 year; labor: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | BendPak |
|---|---|
| Item | Product |
| Symmetric/Asymmetric | Hybrid |
| Weight Capacity | 10000 lbs |
| Model | 10AP, 10AP-168, 10APX, 10APX-181 |
| Lifting Capacity: (*) | 10,000 lbs. (4,536 kg) |
| A - Max Rise | 69″ / 1,753 mm, 75.5″ / 1,918 mm |
| B - Rise + Pad Only | 73″ / 1,854 mm, 79.5″ / 2,007 mm |
| C - Rise + Pad + 63 mm Adapter | 82.5″ /2,096 mm, 89″ / 2,261 mm |
| D - Min. Height + Pad | 4″ /102 mm |
| Time to Full Rise | ≈45 seconds |
| E - Height Overall | 145″ /3,683 mm, 168″ / 4,267 mm, 157″ / 3,988 mm, 181″ / 4,597 mm |
| F - Width Overall | 135″ or 145″ / 3,431 mm or 3,683 mm |
| G - Outside Column Width | 127.5″ or 137.5″ / 3,239 mm or 3,493 mm |
| H - Inside Columns | 108.5″ or 118.5″ / 2,756 mm or 3,010 mm |
| I - Drive-Thru Clearance | 97.5″ or 107.5″ (2,477 mm or 2,731 mm) |
| J - Floor To Overhead Switch | 140″ / 3,556 mm, 163″ / 4,140 mm, 152″ / 3,861 mm, 176″ / 4,470 mm |
| K - Front Arm Reach (Max) | 50″ / 1,270 mm |
| K - Front Arm Reach (Min) | 24.5″ / 622 mm |
| K - Rear Arm Reach (Max) | 59.25″ / 1,505 mm |
| K - Rear Arm Reach (Min) | 32″ / 813 mm |
| Max Load Per Arm | 2,500 lbs. / 1,134 kg |
| Screw Pad Adjustment | 2″ / 51 mm |
| Motor | 220 VAC / 60 Hz. / 1Ph |
| Noise | <70 dB |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address., Local Freight Terminal Pick-Up “Preferred” |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
