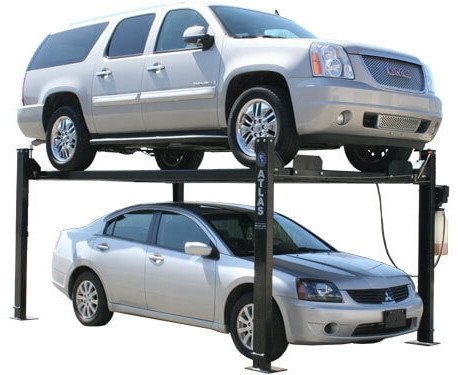

Atlas® Garage Pro 8000 Service/Parking 4 Post Lift 8,000 lbs
SKU: XH-PRO8000
Selling price:$1,699.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 8000 lbs
- Overall width: 115" (9' 7")
- Power requirement: 110V / 30 amp breaker is required.
Product Decision Guide
Key facts for this configuration
- Capacity
- 8000 lbs
- Overall width
- 115" (9' 7")
- Power requirement
- 110V / 30 amp breaker is required.
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
Atlas® Garage Pro 8000 Service/Parking 4 Post Lift 8,000 lbs
This page consolidates the recorded data for Atlas® Garage Pro 8000 Service/Parking 4 Post Lift 8,000 lbs, a parking lift rated at 8,000 lbs. Model identifiers, site inputs and configurable selections appear in separate sections.
Key product facts
- Manufacturer: Atlas Automotive Equipment
- Model: XH-PRO8000
- SKU: XH-PRO8000
- Lift format: parking lift
- Listed capacity: 8,000 lbs
- Power or motor requirement: 110V / 30 amp breaker is required
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details

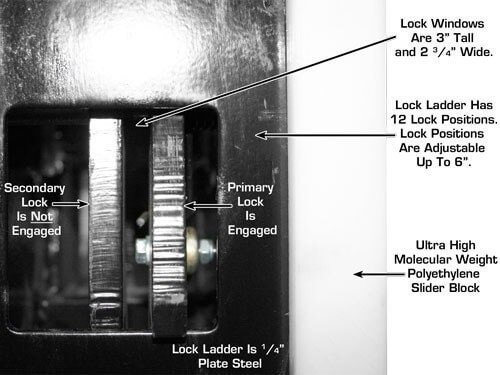

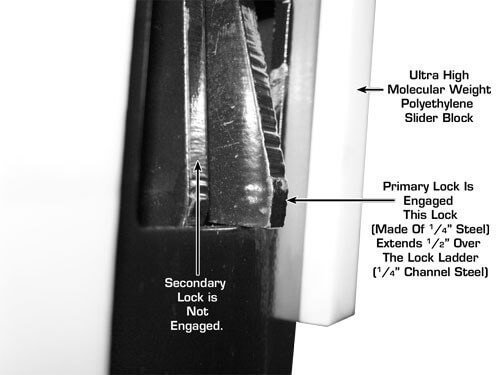

- Safety design: double lock safety system with single point lock release and lock ladder design.
- Construction: atlas® powder coat finish.

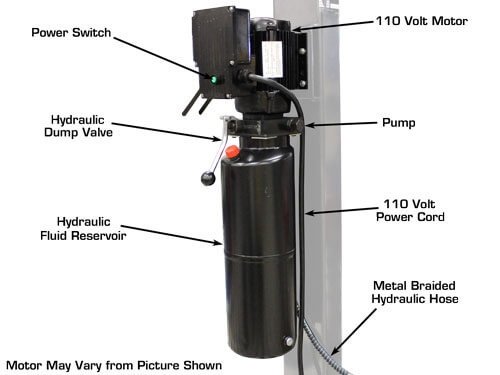

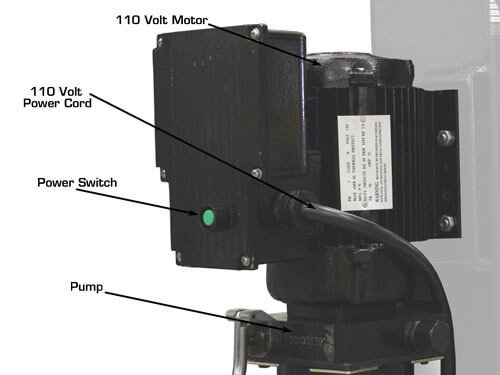

- Power system: 110V motor with 30 amp breaker requirement —no special electrical service needed.
- Platform design: complete accessory package included: steel approach ramps, steel jack tray, four plastic drip trays, four wheel.
- Capacity detail: generous dimensions: 165 3/4" runway length, 21 1/2" runway width with rails, and 153 1/2".
- Capacity detail: 8,000 lb. capacity.

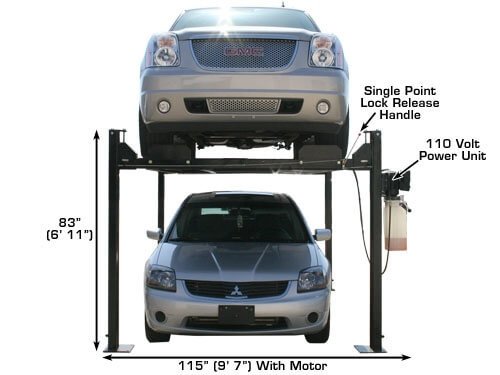

- Safety design: single point lock release.
- Safety design: lock ladder design.
Included equipment
- 1 Jack Tray
- 4 Plastic Drip Trays
- Two Rubber Wheel Chocks

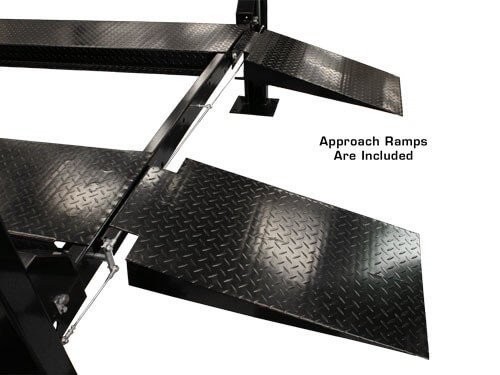

- Steel Approach Ramps

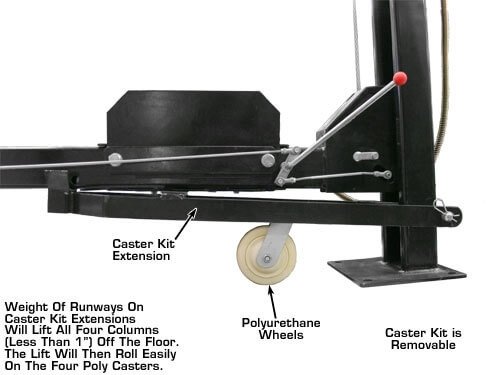

- 1 Caster Kit With Polyurethane Wheels
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | No |
| Weight Capacity | 8000 lbs |
| Capacity | 8,000 lbs |

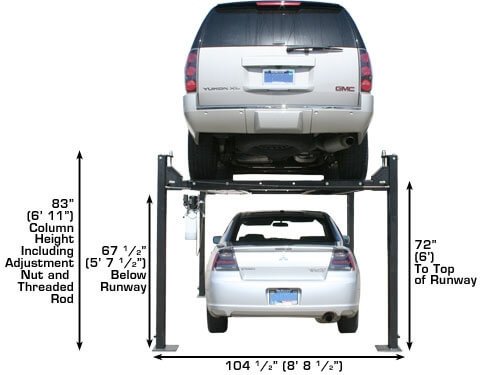

| Lifting Height To Top Of Runway | 72" (6') |
| Clearance Under Runways | 67" (5' 7") |

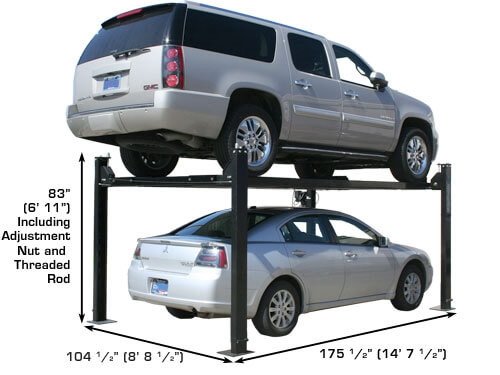

| Height of Columns | 83" (6' 11") |

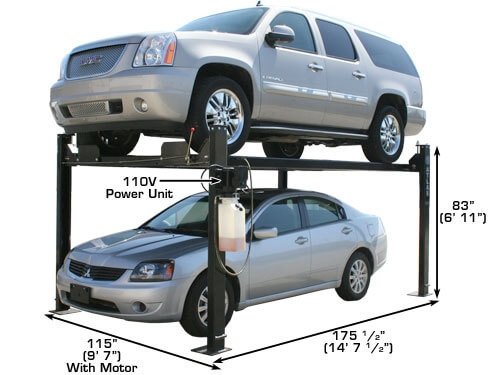

| Overall Width w/ Motor | 115" (9' 7") |

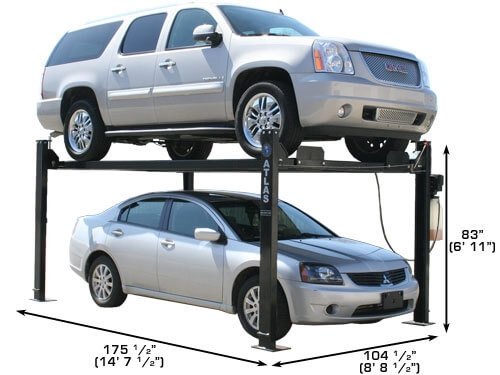

| Overall Width w/o Motor | 104 1/2" (8' 8 1/2") |

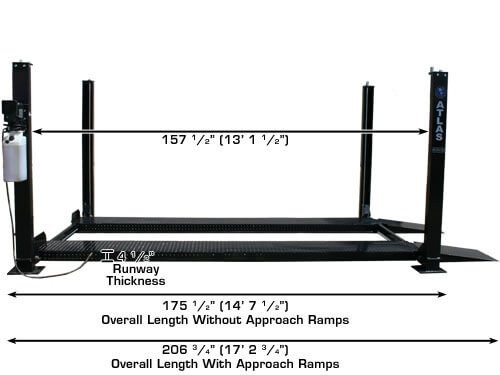

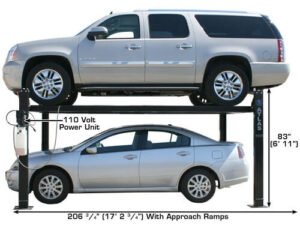

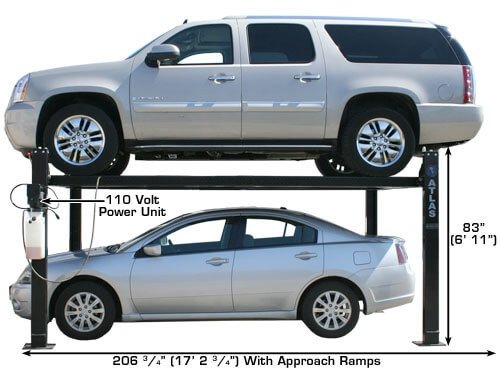

| Overall Length w/Approach Ramps | 206 3/4" (17' 2 3/4") |
| Overall Length w/o Approach Ramps | N/A |
| Approach Ramps | 37" (3' 1") |
| Runway Width | 21 1/2" (w/ Rails) or 18 3/4" (Driving Surface) |
| Runway Length | 165 3/4" (13' 9 3/4") |
| Runway Thickness | 4 ½" |
| Width Between Runways | 37" (3' 1") |
| Width Between Runway Rails | 31 1/2" (2' 7 1/2") |
| Outside Runway to Outside Runway | 74 5/8" (6' 2 5/8") |
| Clearance Between Columns | 94 1/2" (7' 10 1/2") |
| Length Between Columns | 157 1/2" (13' 1 1/2") |
| Maximum Wheel Base | 153 1/2" (12' 9 1/2") |
| Drive Thru (Outside of tire to outside of tire) | 80 1/2" (6' 8 1/2") |
| Motor | 110V / 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT Included) |
| Weight | 1,800 lbs |
Manufacturer warranty reference — verification required
Warranty information recorded for Atlas Automotive Equipment lists: structural components: 2 years; limited manufacturer coverage: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Atlas Automotive Equipment |
|---|---|
| Weight Capacity | 8000 lbs |
| call_for_better_price | false |
| lift_type | 4-post |
| lift_height | 72 |
| lift_width | 114 |
| lift_depth | 175.5 |
| lift_depth_with_ramps | 206.75 |
| flatrate | 400 |
| Rebate | Sale Price Valid thru July 31st or While Supplies Last! |
| promo_overlay_text | $300 off |
| __customlabel | expires July 31 |
| Capacity | 8,000 lbs |
| Lifting Height To Top Of Runway | 72″ (6′) |
| Clearance Under Runways | 67″ (5′ 7″) |
| Height of Columns | 83″ (6′ 11″) |
| Overall Width w/ Motor | 115″ (9′ 7″) |
| Overall Width w/o Motor | 104 1/2″ (8′ 8 1/2″) |
| Overall Length w/Approach Ramps | 206 3/4″ (17′ 2 3/4″) |
| Overall Length w/o Approach Ramps | N/A |
| Approach Ramps | 37″ (3′ 1″) |
| Runway Width | 21 1/2″ (w/ Rails) or 18 3/4″ (Driving Surface) |
| Runway Length | 165 3/4″ (13′ 9 3/4″) |
| Runway Thickness | 4 ½” |
| Width Between Runways | 37″ (3′ 1″) |
| Width Between Runway Rails | 31 1/2″ (2′ 7 1/2″) |
| Outside Runway to Outside Runway | 74 5/8″ (6′ 2 5/8″) |
| Clearance Between Columns | 94 1/2″ (7′ 10 1/2″) |
| Length Between Columns | 157 1/2″ (13′ 1 1/2″) |
| Maximum Wheel Base | 153 1/2″ (12′ 9 1/2″) |
| Drive Thru (Outside of tire to outside of tire) | 80 1/2″ (6′ 8 1/2″) |
| Motor | 110V / 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT Included) |
| Weight | 1,800 lbs |
| Forklift? | Choose an option, Yes, I have a forklift at the delivery location., No, I do not have a forklift. Please call me with delivery options. |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
Documents & Support
Review the exact product information
Specifications can change. Confirm the selected model against current manufacturer documents before installation or use.Related products
