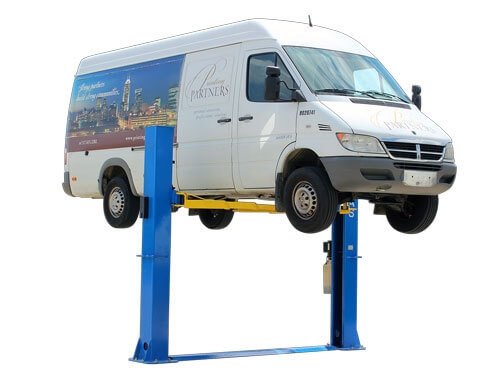

Atlas® BP-10000 Floor Baseplate 2 Post Car Lift 10,000 lbs
SKU: ATTD-BP10000X
Selling price:$1,949.50
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 10000 lbs
- Configuration: Symmetric
- Maximum rise: 86 3/8" (7' 2 3/8")
Product Decision Guide
Key facts for this configuration
- Capacity
- 10000 lbs
- Configuration
- Symmetric
- Maximum rise
- 86 3/8" (7' 2 3/8")
- Power requirement
- 220V single (1) phase / 30 amp breaker is required.
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
Atlas® BP-10000 Floor Baseplate 2 Post Car Lift 10,000 lbs
This page consolidates the recorded data for Atlas® BP-10000 Floor Baseplate 2 Post Car Lift 10,000 lbs, a two-post vehicle lift rated at 10,000 lbs. Model identifiers, site inputs and configurable selections appear in separate sections.
Key product facts
- Manufacturer: Atlas Automotive Equipment
- Model: ATTD-BP10000X
- SKU: ATTD-BP10000X
- Lift format: two-post vehicle lift
- Listed capacity: 10,000 lbs
- Configuration: Symmetric
- Power or motor requirement: 220V single (1) phase / 30 amp breaker is required
- Maximum lifting height: 86 3/8" (7' 2 3/8")
- Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.
Design and functional details
- Construction: heavy-duty construction: 6mm-thick steel columns measuring 9 1/2" x 11" with middle welded.

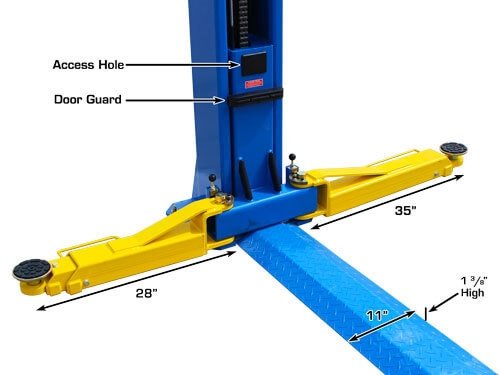

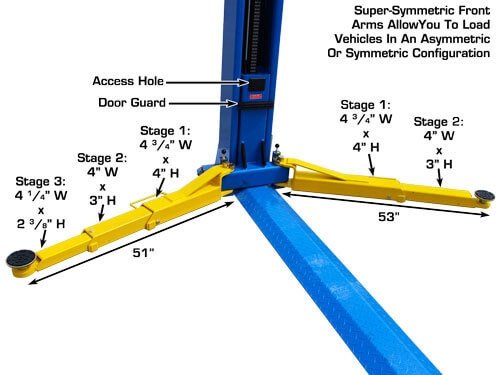

- Lifting interface: super-symmetric arms: adjustable arms.

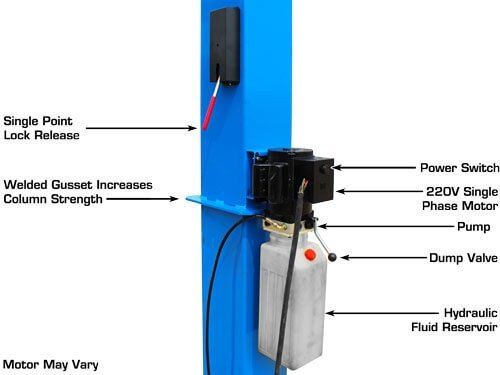

- Safety design: single-point lock release: engage or disengage both columns simultaneously with one simple action, streamlining operation.
- Capacity detail: 10,000 lb. capacity.
- Lifting interface: super-symmetric arms.

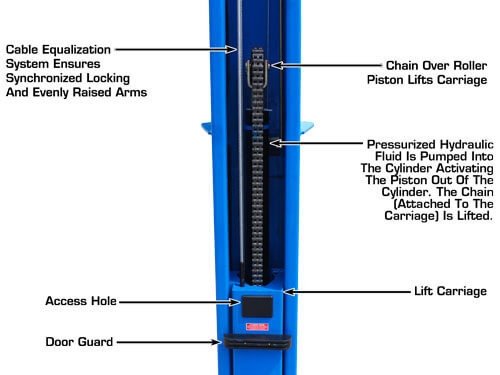

- Construction: dual hydraulic chain-drive cylinders made on ANSI standard.
- Safety design: single-point lock release.
- Design detail: base plate design.
Included equipment

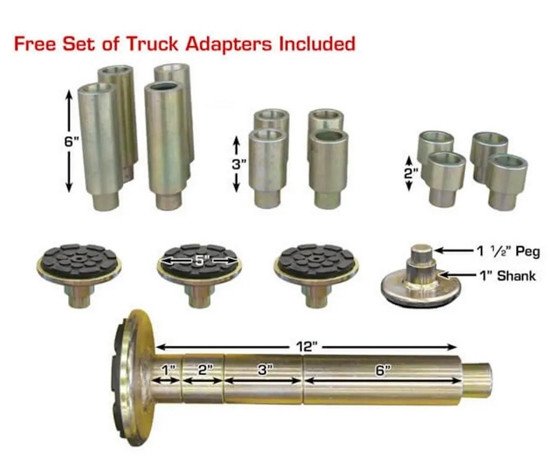

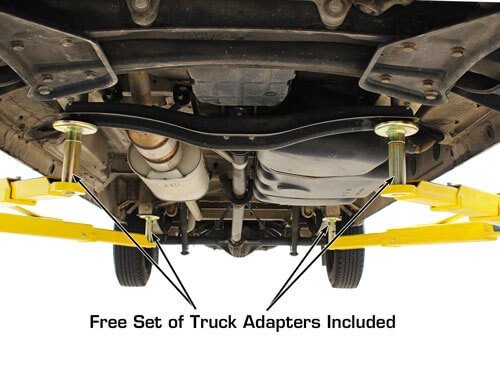

- Free 12-Piece Truck Adapter Set: Includes four 2" adapters, four 3" adapters, and four 6" adapters

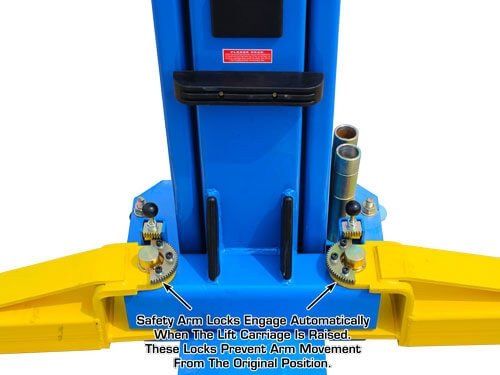

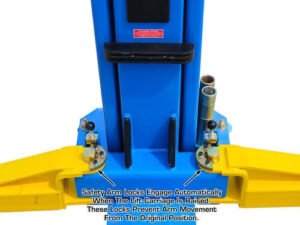

- Automatic Arm Restraints for enhanced safety
- Single-Point Lock Release mechanism
- Dual Hydraulic Cylinders with chain-drive system
- Professional Installation Manual with detailed instructions and diagrams
- 4 Each – 2", 3", & 6" Adapters
Technical specifications
| Specification | Recorded value |
|---|---|
| Symmetric/Asymmetric | Symmetric |
| ALI | No |
| Weight Capacity | 10000 lbs |
| Capacity | 10,000 lbs |
| Lifting Time | N/A |

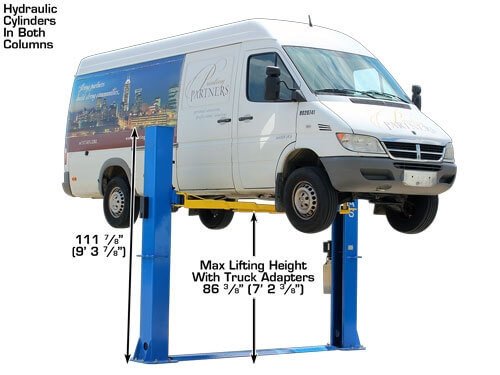

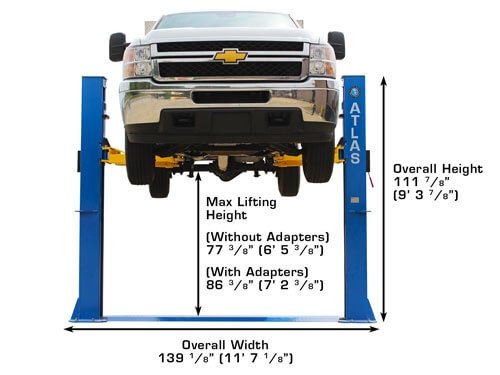

| Overall Height | 111 7/8" (9' 3 7/8") |

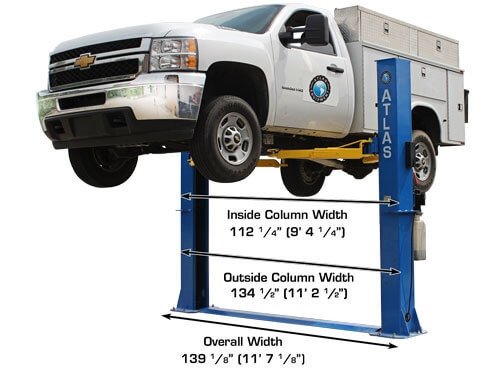

| Overall Floor Width | 139 1/8" (11' 7 1/8") |
| Outside Column To Outside Column | 134 1/2" (11' 2 1/2") |

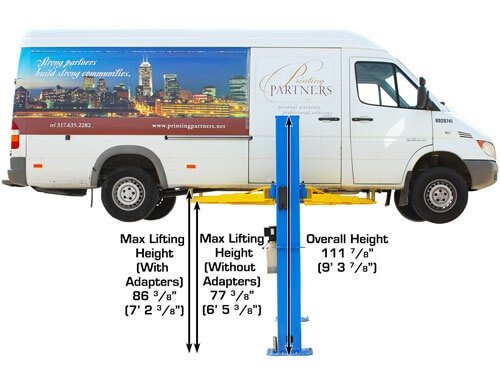

| Max Lift Height w/Adapters | 86 3/8" (7' 2 3/8") |
| Max Lift Height w/o Adapters | 77 3/8" (6' 5 3/8") |
| Minimum Arm Height | 4" |

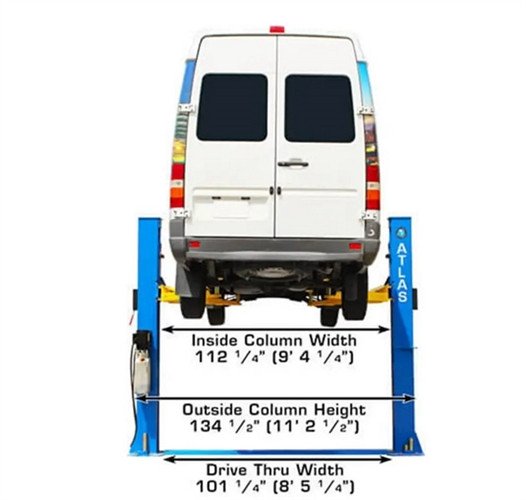

| Inside Column | 112 1/4" (9' 4 1/4") |
| Drive Thru | 101 1/4" (8' 5 1/4") |

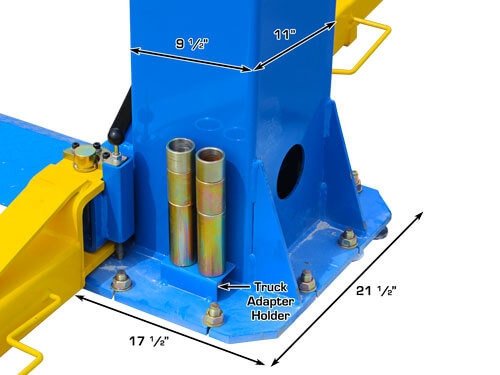

| Column Size | 9 1/2" x 11" |
| Column Thickness of Steel | 6mm |
| Base of Lift | 17 1/2" x 21 1/2" |
| Arm Hole/Adapter Peg Size | 1.5” |
| Motor/Electrical Requirement | 220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |

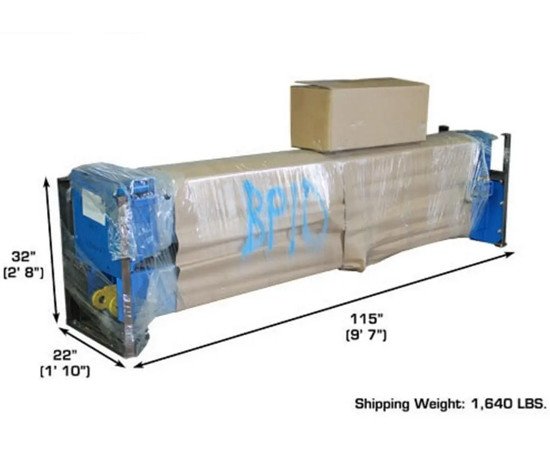

| Weight | 1,640 LB. |
Manufacturer warranty reference — verification required
Warranty information recorded for Atlas Automotive Equipment lists: structural components: 5 years; limited manufacturer coverage: 2 years. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Atlas Automotive Equipment |
|---|---|
| Symmetric/Asymmetric | Symmetric |
| Weight Capacity | 10000 lbs |
| lift_type | 2-post |
| lift_height | 111.875 |
| lift_width | 139.125 |
| call_for_better_price | false |
| flatrate | 400 |
| Capacity | 10,000 lbs |
| Lifting Time | N/A |
| Overall Height | 111 7/8″ (9′ 3 7/8″) |
| Overall Floor Width | 139 1/8″ (11′ 7 1/8″) |
| Outside Column To Outside Column | 134 1/2″ (11′ 2 1/2″) |
| Max Lift Height w/Adapters | 86 3/8″ (7′ 2 3/8″) |
| Max Lift Height w/o Adapters | 77 3/8″ (6′ 5 3/8″) |
| Minimum Arm Height | 4″ |
| Inside Column | 112 1/4″ (9′ 4 1/4″) |
| Drive Thru | 101 1/4″ (8′ 5 1/4″) |
| Column Size | 9 1/2″ x 11″ |
| Column Thickness of Steel | 6mm |
| Base of Lift | 17 1/2″ x 21 1/2″ |
| Arm Hole/Adapter Peg Size | 1.5” |
| Motor/Electrical Requirement | 220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Weight | 1,640 LB. |
| Residential, or business address? | Delivery address is in a business zone, Delivery address is in a residential zone |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
| Forklift? | Choose an option, Yes, I have a forklift at the delivery location., No, I do not have a forklift. Please call me with delivery options. |
Delivery Information
Plan for delivery before your lift arrives
Lift Care ships only within the United States and coordinates freight through Logistica Cargonam. Product-specific cost and timing are confirmed before ordering.
United States delivery
Orders are shipped only to destinations within the USA.
Shipping confirmation
Delivery cost and freight requirements are confirmed for the product and destination before ordering.
Heavy-freight receiving
Prepare carrier access, an available receiving contact, and suitable unloading equipment.
Inspect at delivery
Review the freight condition and document visible damage or missing parts before the carrier leaves.
