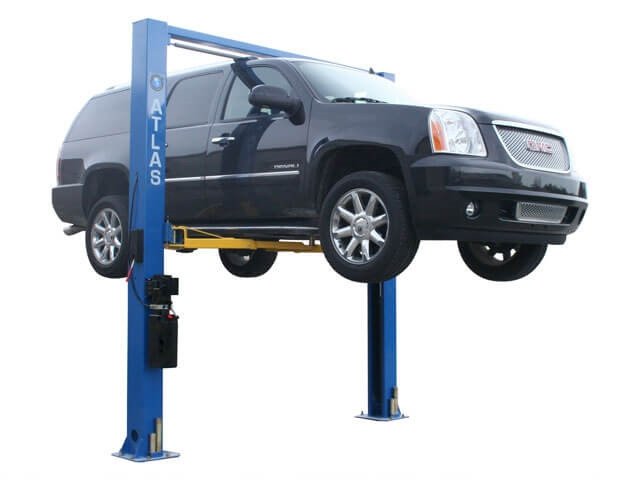

Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 lbs

Name: Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 lbs
Brand: Atlas Automotive Equipment
SKU: ATTD-9OHSC-SS
Price: 1549.50 USD
Availability: InStock

SKU: ATTD-9OHSC-SS

Selling price:$1,549.50

Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.

Capacity: 9000 lbs
Configuration: Symmetric

Add to wishlist

ShippingConfirm delivery cost, timing, access, and freight requirements before ordering. Returns & FreightReview return authorization and freight-damage requirements. Product GuidanceAsk Lift Care to review model, options, and delivery access. Ordering AssistanceConfirm the configuration and current manufacturer documents.

SKU: ATTD-9OHSC-SS Categories: 2 Post Lifts, Car Lifts Tag: Mid-Range

Product Decision Guide

Key facts for this configuration

Capacity: 9000 lbs
Configuration: Symmetric

Before You Order

Will this lift fit your bay and workflow?

Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.

Request a Product Fit Check

Vehicle & Capacity

Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.

Bay & Clearances

Check overall width, length, ceiling height, door travel, and working clearance.

Floor & Utilities

Verify concrete, anchoring, electrical, and air requirements in the current manual.

Freight Receiving

Prepare carrier access, an available contact, and suitable unloading equipment.

Product Details

Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 lbs

Selection data for this Atlas Automotive Equipment two-post vehicle lift is grouped by identity, physical size, required utilities and configuration. The cataloged capacity is 9,000 lbs. Cross-check the chosen model against the intended vehicle and work area.

Key product facts

Manufacturer: Atlas Automotive Equipment
Model: ATTD-9OHSC-SS
SKU: ATTD-9OHSC-SS
Lift format: two-post vehicle lift
Listed capacity: 9,000 lbs
Configuration: Symmetric
Manufacturer-listed certification status: The supplied product data does not list this model as ALI certified.

Design and functional details

Capacity detail: 9,000 lb. capacity.

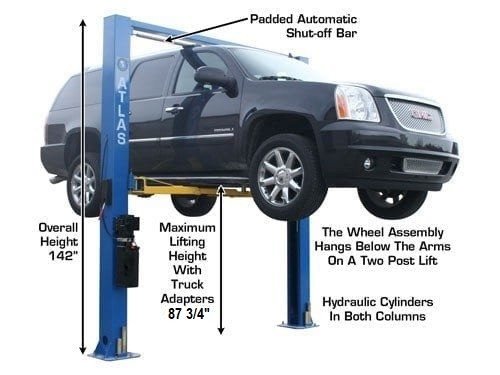

Design detail: overhead, open-floor design.
Design detail: single-piece column construction.

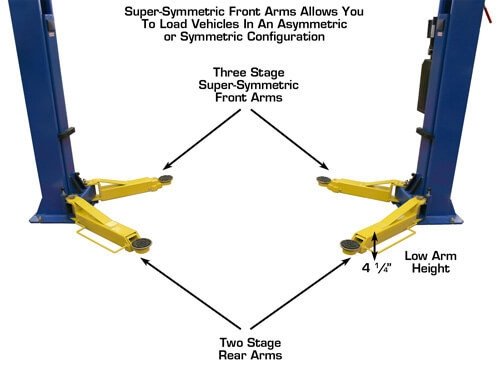

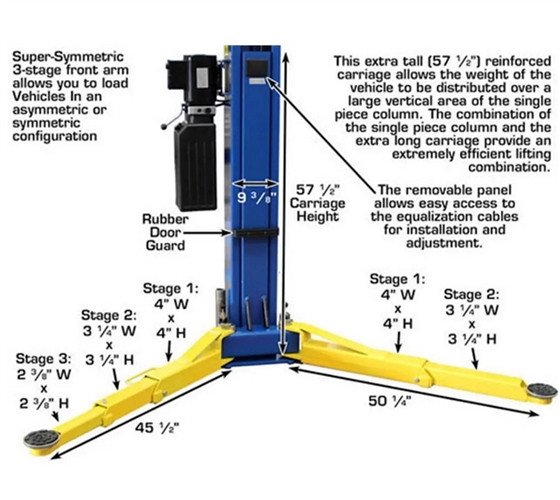

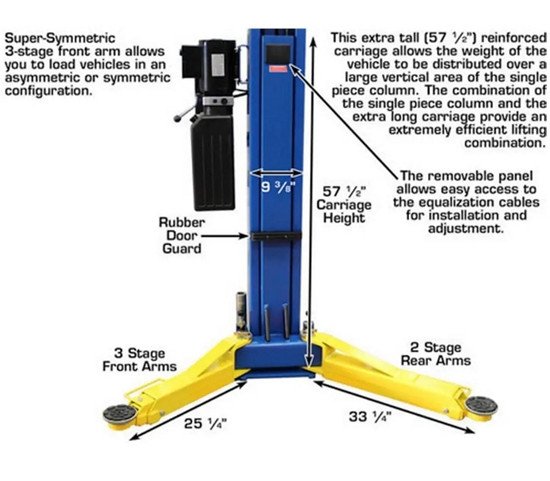

Lifting interface: 3-stage front arms and 2-stage rear arms.
Lifting interface: free 12-piece truck adapter set included.

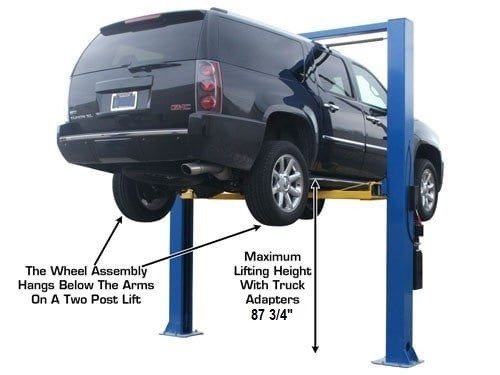

Lifting interface: maximum lift height of 87 ¾" with adapters.
Design detail: overhead, open-floor lift.
Design detail: single-piece column design.

Included equipment

Complete Atlas® 9OHSC-SS two post lift assembly
Mounting hardware for installation

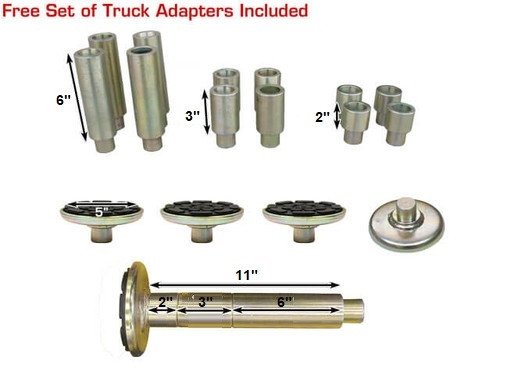

12-piece truck adapter set (4 each of 2", 3", and 6" adapters)
Comprehensive installation manual

Technical specifications

Specification	Recorded value
Symmetric/Asymmetric	Symmetric
ALI	No
Weight Capacity	9000 lbs
Capacity	9,000 lbs

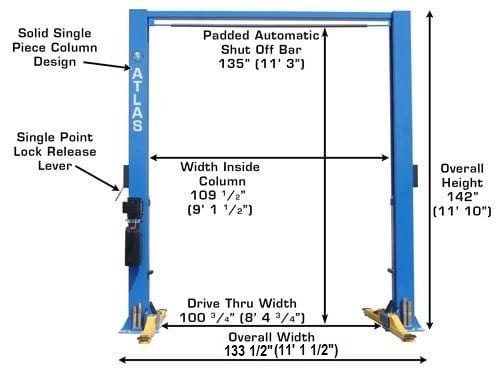

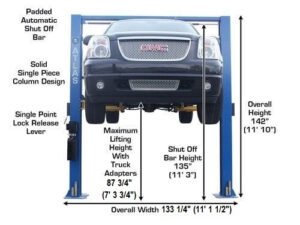

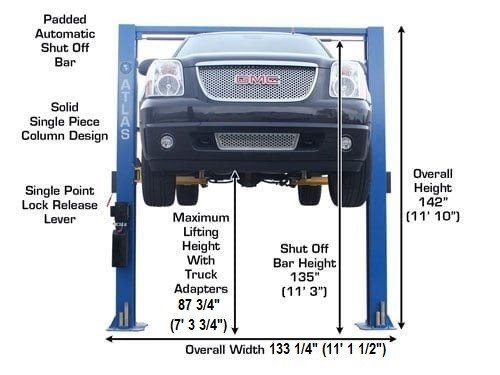

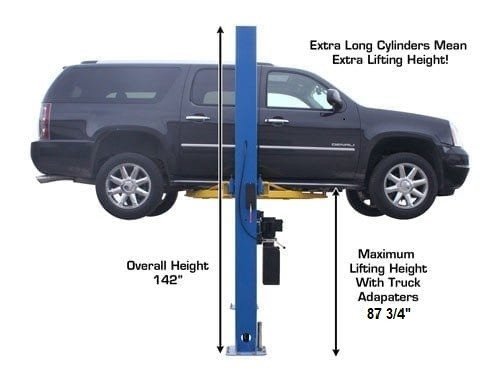

Overall Height	142" (11' 10")
Overall Floor Width	133 ½" (11' 1 ½" )

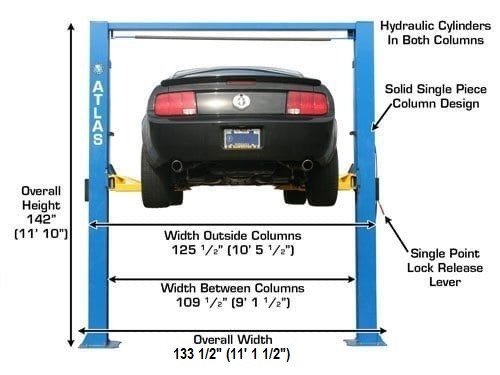

Outside Column To Outside Column	125 ½" (10' 5 ½")

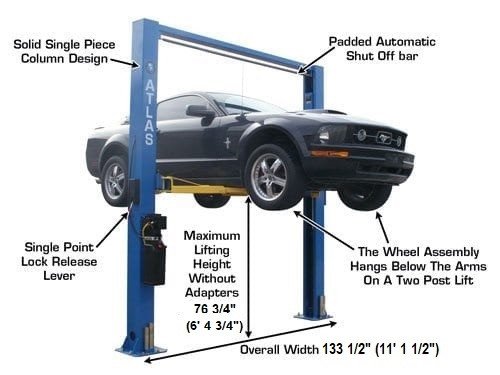

Maximum Lift Height w/o Adapters	76 3/4"
Maximum Lift Height w/Adapters	87 3/4"
Minimum Arm Height	4"
Inside Column	109 ½" (9' 1 ½")
Drive Thru	100 1/2” (8’ 4 1/2”)
Column Size	8" x 9 3/8"

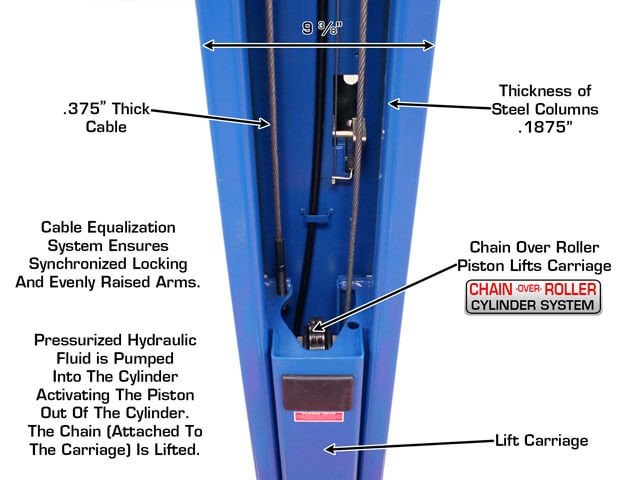

Column Thickness of Steel	5mm

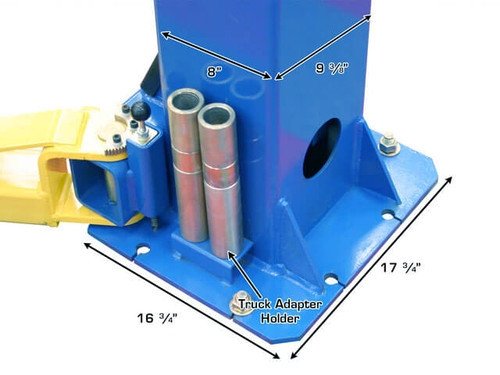

Base of Lift	16 ¾" x 17 ¾"

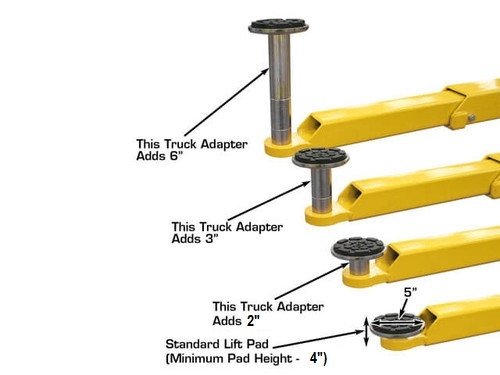

Adapter Heights	4 Each – 2", 3", 6"
Oil Requirement	3-5 Gallons AW32/AW46 (NOT Included)
Arm Hole/Adapter Peg Size	1.5"

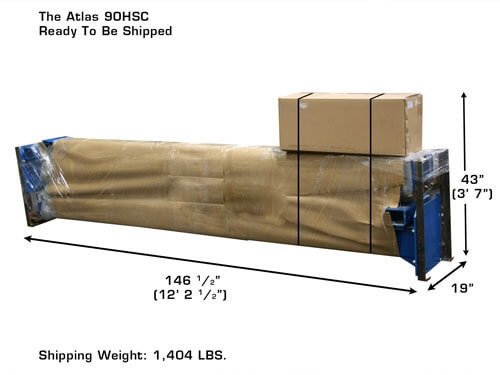

Shipping Weight	1,430 lbs.

Manufacturer warranty reference — verification required

Warranty information recorded for Atlas Automotive Equipment lists: structural components: 5 years; hydraulic cylinder: 1 year; limited manufacturer coverage: 1 year. These are manufacturer terms and are not coverage provided by Lift Care, Inc. Confirm the current policy, eligibility, registration requirements and exclusions with the manufacturer before publication.

Compatibility and site review

Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.

Specifications

Brand	Atlas Automotive Equipment
Item	Product
Symmetric/Asymmetric	Symmetric
Weight Capacity	9000 lbs
lift_type	2-post
lift_height	142
lift_width	133.5
flatrate	400
Capacity	9,000 lbs
Overall Height	142″ (11′ 10″)
Overall Floor Width	133 ½” (11′ 1 ½” )
Outside Column To Outside Column	125 ½” (10′ 5 ½”)
Maximum Lift Height w/o Adapters	76 3/4″
Maximum Lift Height w/Adapters	87 3/4″
Minimum Arm Height	4″
Inside Column	109 ½” (9′ 1 ½”)
Drive Thru	100 1/2” (8’ 4 1/2”)
Column Size	8″ x 9 3/8″
Column Thickness of Steel	5mm
Base of Lift	16 ¾” x 17 ¾”
Adapter Heights	4 Each – 2″, 3″, 6″
Oil Requirement	3-5 Gallons AW32/AW46 (NOT Included)
Arm Hole/Adapter Peg Size	1.5″
Shipping Weight	1,430 lbs.
