Challenger SX14-ER Surface Mount HD Extended Ramps Scissor Alignment Lift Package 14,000 lbs
SKU: SX14-ER
Selling price:$34,849.51
Confirm fit, current options, delivery access, and documentation with Lift Care before purchase.
- Capacity: 14000 lbs
- Overall width: 91 ¼"
- Power requirement: 3P
Product Decision Guide
Key facts for this configuration
- Capacity
- 14000 lbs
- Overall width
- 91 ¼"
- Power requirement
- 3P
Before You Order
Will this lift fit your bay and workflow?
Use the exact selected model and current manufacturer documentation to confirm the installation site, vehicle, utilities, and receiving plan.
Request a Product Fit CheckVehicle & Capacity
Confirm vehicle weight, weight distribution, wheelbase, and manufacturer lift points.
Bay & Clearances
Check overall width, length, ceiling height, door travel, and working clearance.
Floor & Utilities
Verify concrete, anchoring, electrical, and air requirements in the current manual.
Freight Receiving
Prepare carrier access, an available contact, and suitable unloading equipment.
Challenger SX14-ER Surface Mount HD Extended Ramps Scissor Alignment Lift Package 14,000 lbs
This page consolidates the recorded data for Challenger SX14-ER Surface Mount HD Extended Ramps Scissor Alignment Lift Package 14,000 lbs, an alignment lift rated at 14,000 lbs. Model identifiers, site inputs and configurable selections appear in separate sections.
Key product facts
- Manufacturer: Challenger
- Model: SX14 | SX14-ER (Extended Approach Ramps) | SX14-FM
- SKU: SX14-ER
- Lift format: alignment lift
- Listed capacity: 14,000 lbs
- Power or motor requirement: 3P
- Manufacturer-listed certification status: Challenger product data lists this model as ALI certified; verify the current certification record before publication.
Design and functional details

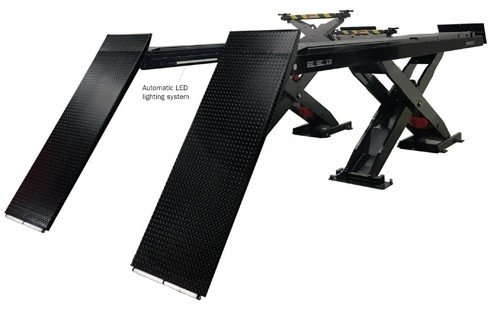

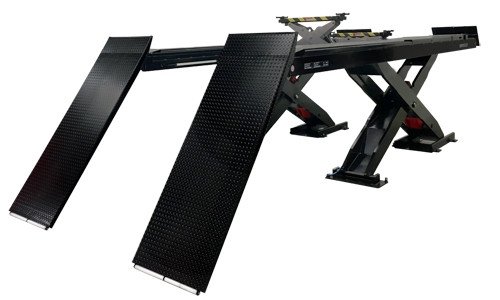

- Platform design: extended 78.5" approach ramps.
- Platform design: extra wide runway design.
- Design detail: photo cell synchronization system.

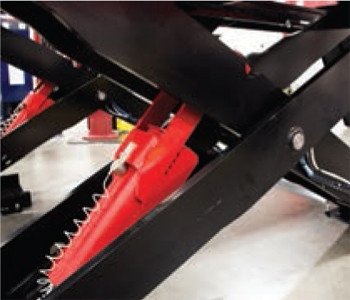

- Safety design: single-point air actuated lock release at ergonomic height reduces technician fatigue.
- Manufacturer-listed certification: ALI certified.
- Platform design: extended approach ramps add 18".
- Platform design: extra wide runway width.
- Design detail: photo cell.
Included equipment

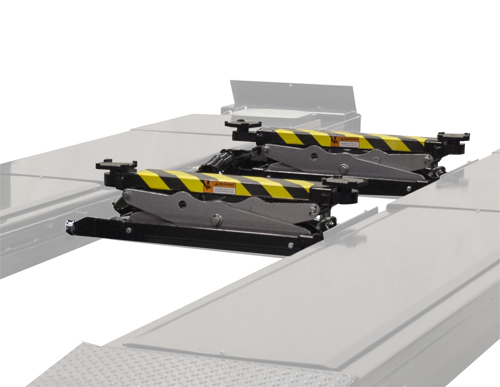

- Two Rolling Jacks
- Pair of Turn Plates
- Airline Kit for Dual Jack Operation
Available configurations and accessories
- Optional Voltage: Optional 3 Phase Voltage Instead of 1Ph
- Model Number: SX14; SX14-ER (Extended Approach Ramps); SX14-FM
Technical specifications
| Specification | Recorded value |
|---|---|
| ALI | Yes |
| Weight Capacity | 14000 lbs |
| Model Number | SX14 | SX14-ER (Extended Approach Ramps) | SX14-FM |
| Lift Capacity | 14,000 lbs. |
| Installation | Surface Mount | Flush mount |
| A Overall Width | 91 ¼" |
| B Overall Length | 265” | 283" | 219” |
| C Distance between Platforms* | 40" |
| D Platform Width | 25 ½" |
| E Raise Height | 77" | 66 ½" |
| F Lowered Height | 10 ½" | N/A |
| G Max Wheelbase** | 183" |
| H Max Wheel Alignment | 176" |
| I Min 4-Wheel Alignment | 70 ¾" |
| J Distance to Controls Width | 24" min – 64" max |
| K Distance to Controls Length | 40" min – 74" max |
| Motor | 3P |
| Voltage | 208v – 240v 1 Phase 60Hz |
| Minimum Recommended Bay Size | 14' x 28' |
| Lift Shipping Dimensions | 212" L x 32" W x 50" H |
| Lift Shipping Weight | 6,800 lbs |
| Console Shipping Dimensions | 17" L x 24" W x 52" H |
| Console Shipping Weight | 330 lbs |
| Optional Voltage | Optional 3 Phase Voltage Instead of 1Ph, No |
Compatibility and site review
Confirm vehicle lift points, weight distribution, clearances, floor conditions and required utilities against the current manufacturer manuals for the exact configuration selected. Product specifications can vary by model, voltage, height, length, runway, arm or accessory choice.
| Brand | Challenger |
|---|---|
| Weight Capacity | 14000 lbs |
| Rebate | This Item has a 7-Business Day Lead-Time |
| Model Number | SX14, SX14-ER (Extended Approach Ramps), SX14-FM |
| Lift Capacity | 14,000 lbs. |
| Installation | Surface Mount, Flush mount |
| A Overall Width | 91 ¼” |
| B Overall Length | 265”, 283″, 219” |
| C Distance between Platforms* | 40″ |
| D Platform Width | 25 ½” |
| E Raise Height | 77″, 66 ½” |
| F Lowered Height | 10 ½”, N/A |
| G Max Wheelbase** | 183″ |
| H Max Wheel Alignment | 176″ |
| I Min 4-Wheel Alignment | 70 ¾” |
| J Distance to Controls Width | 24″ min – 64″ max |
| K Distance to Controls Length | 40″ min – 74″ max |
| Motor | 3P |
| Voltage | 208v – 240v 1 Phase 60Hz |
| Minimum Recommended Bay Size | 14′ x 28′ |
| Lift Shipping Dimensions | 212″ L x 32″ W x 50″ H |
| Lift Shipping Weight | 6,800 lbs |
| Console Shipping Dimensions | 17″ L x 24″ W x 52″ H |
| Console Shipping Weight | 330 lbs |
| Delivery Options | No, I Don’t Have a Forklift Please Call me to Discuss Options., I have a forklift for unloading at my listed shipping address. |
| Delivery Notice | I want a 24 hour Delivery Notice, I don’t want a 24 hour Delivery Notice |
